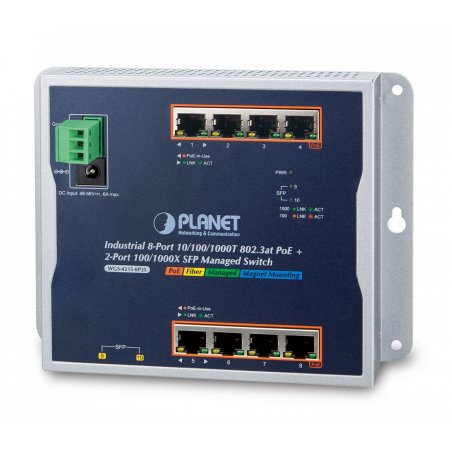

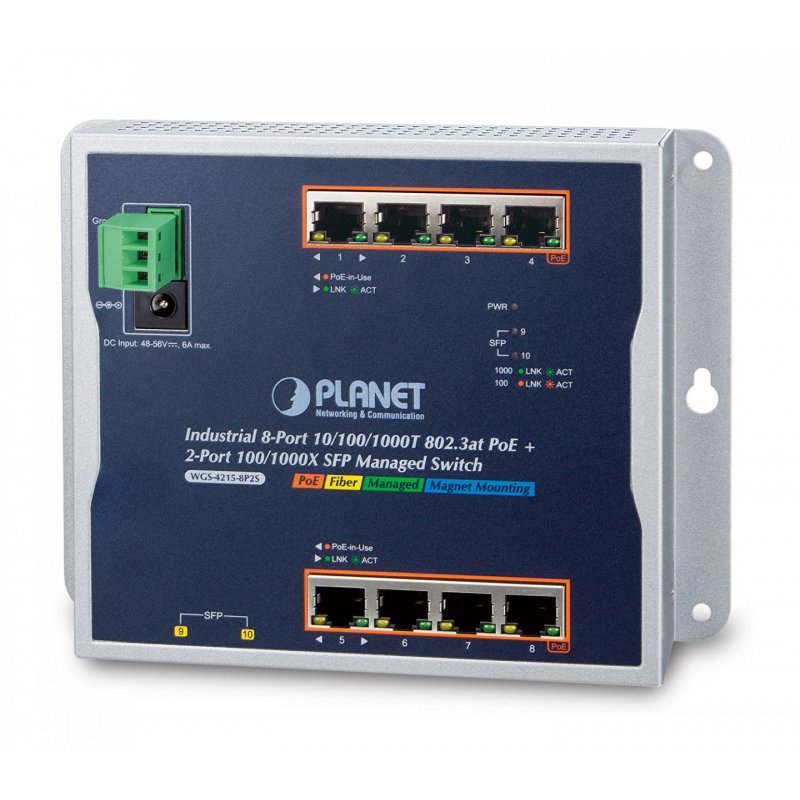

ASSMANN PLANET WGS-4215-8P2S network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

PLANET WGS-4215-8P2S, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
WGS-4215-8P2S
4711605281843
€439.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET WGS-4215-8P2S. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.3at. Power over Ethernet (PoE). Wall mountable
  • Physical Port
  • 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ Injector function
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE port power feeding priority
  • Per PoE port power limitation
  • PD classification detection
  • PD alive check
  • PoE schedule
  • Industrial Case and Installation
  • Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
  • IP30 metal case protection
  • Supports -40 to 75 degrees C operating temperature
  • Supports ESD 8KV DC Ethernet protection
  • Dual power input design
  • 48V~56V DC wide power input with polarity reverse protect function
  • 3-pin terminal block or DC jack connector
  • Switching
  • Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 10K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Layer 2 Features
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  • Protocol VLAN
  • Voice VLAN
  • Private VLAN (Protected port)
  • Management VLAN- GVRP
  • Supports Spanning Tree Protocol
  • STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation- IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Traffic classification
  • IEEE 802.1p CoS
  • TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Security
  • Storm Control support
  • Broadcast/Unknown unicast/Unknown multicast
  • Authentication
  • IEEE 802.1X port-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • DHCP Option 82
  • RADIUS/TACACS+ authentication
  • Access Control List
  • IPv4/IPv6 IP-based ACL
  • IPv4/IPv6 IP-based ACE
  • MAC-based ACL
  • MAC-based ACE
  • MAC Security
  • Static MAC
  • MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • SSH/SSL

Data sheet

Colour
Black
Garantie
2 ans
Marque
Assmann
Modèle
WGS-4215-8P2S
Weight
1

Specific References

ean13
4711605281843
