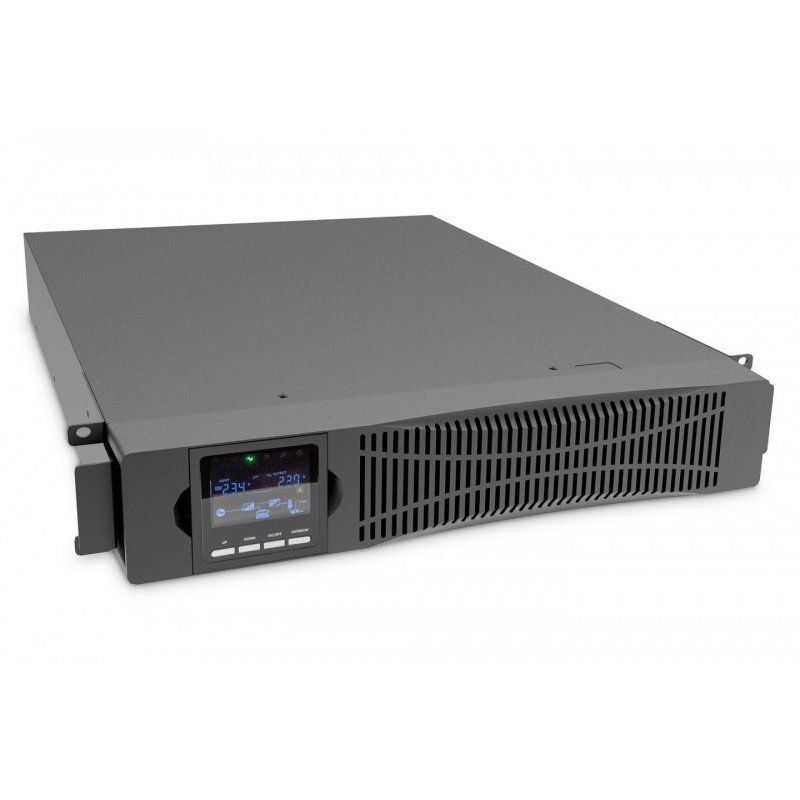

Digitus Digitus OnLine UPS system, 3000 VA / 3000 W

Digitus OnLine UPS system, 3000 VA / 3000 W, Double-conversion (Online), 1.5 kVA, 3000 W, 208 V, 240 V, 16 A
DN-170096
4016032474678
€1,009.00
VAT included

Visa
Mastercard
PayPal

Description

Digitus OnLine UPS system, 3000 VA / 3000 W. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 3 min. Form factor: Rackmount, Product colour: Black, Display type: LCD. Width: 440 mm, Depth: 600 mm, Height: 86.5 mm
  • Online double conversion system (VFI-SS-111)
  • Input: socket IEC60320 C20, 208/220/230/240 Vac

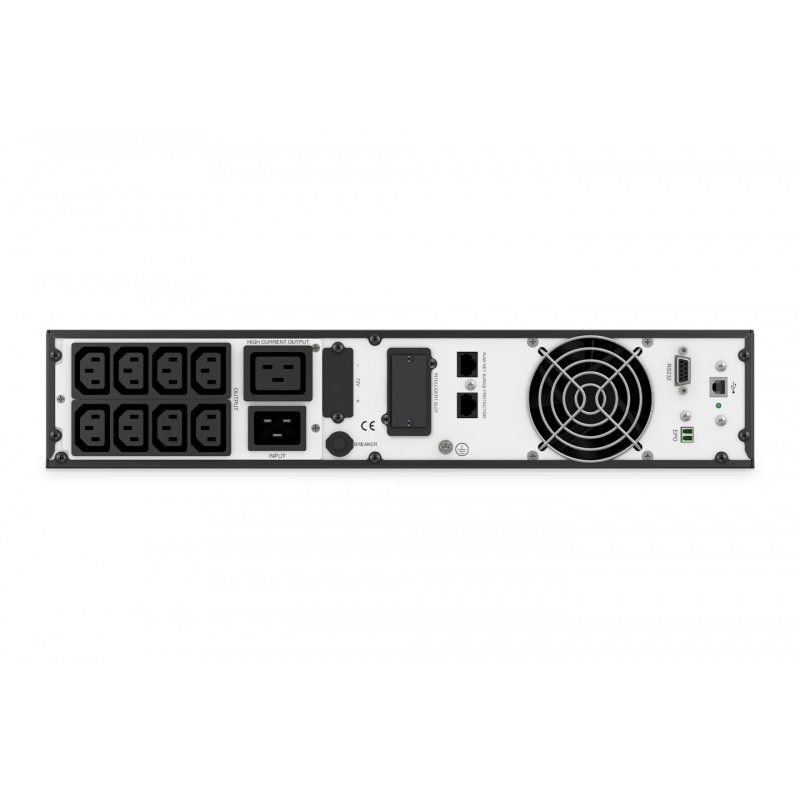

  • Output: 8 x IEC60320 C13, max. 10A per socket; 1 x IEC60320 C19, max. 16A per socket
  • System power rating: 3000 VA / 3000 W, power factor 1.0
  • AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
  • Replaceable internal battery pack during operation.
  • Battery: valve-regulated, non-spillable lead-acid battery.
  • Battery capacity: 6 x 12V x 9.0 Ah
  • Full load run time: 3 min; half load run time: 9 min
  • Charge: 4 hours to 90% capacity after fully discharged
  • Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
  • Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
  • Emergency power-off (EPO) contact for UPS shutdown in case of emergency
  • Maximum operating temperature: 0 - 40 °C
  • Storage temperature: -25 - 55 °C
  • Relative humidity: 20 - 90% non-condensing
  • Operating altitude: < 1500 m
  • Product dimensions WxDxH (mm): 440 (19") x 600 x 86.5 (2U)
  • Product weight: 26 kg
  • Shipping dimensions WxDxH (mm): 560 x 730 x 200
  • Shipping weight: 30.2 kg
  • Safety standards: IEC/EN62040-1,IEC/EN60950-1
  • EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
  • Approval: CE declaration

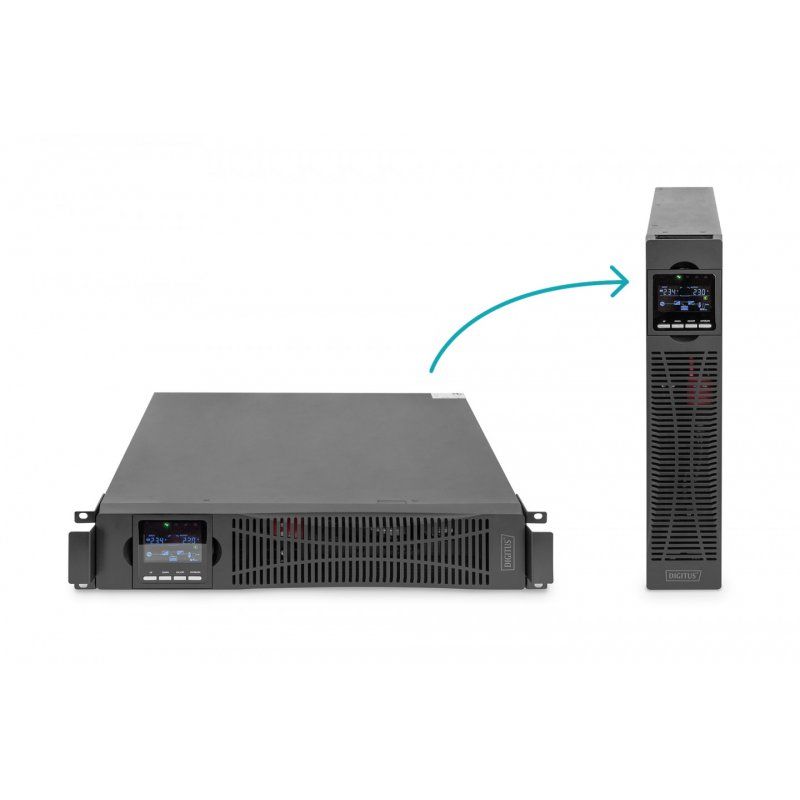

  • Scope of delivery: UPS unit, feet for tower installation, UPS manual, UPS QSG, UPS software license, USB cable, mains cable (1.8m protective contact socket (type 7/4) to IEC60320 socket C20), IEC C13 connection cable, 19" installation brackets
  • Optional available: 19" UPS mounting kit (profile rails), part number DN-170109

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DN-170096
Weight
2

Specific References

ean13
4016032474678
