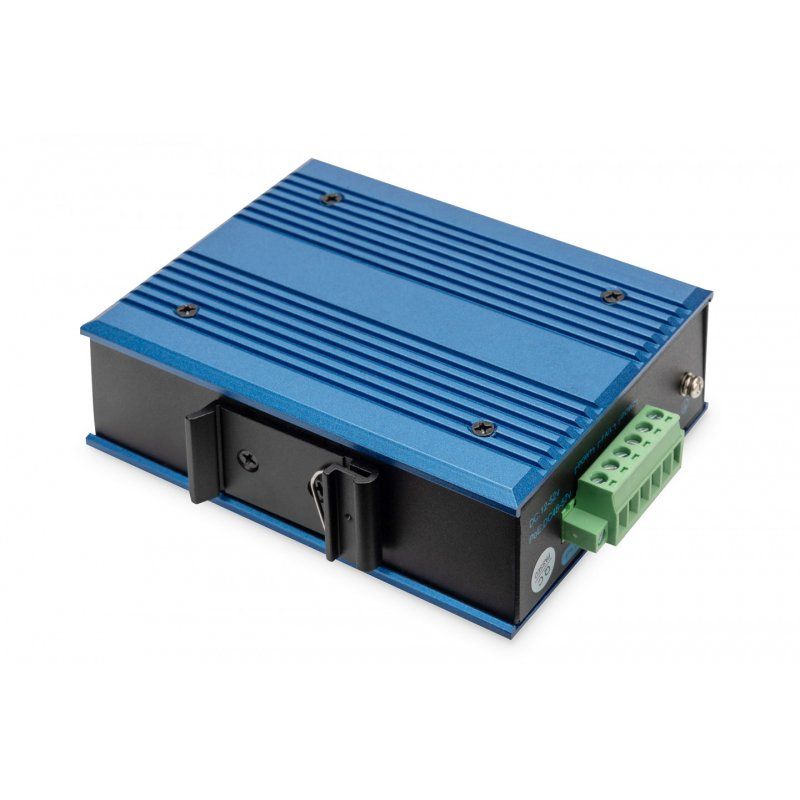

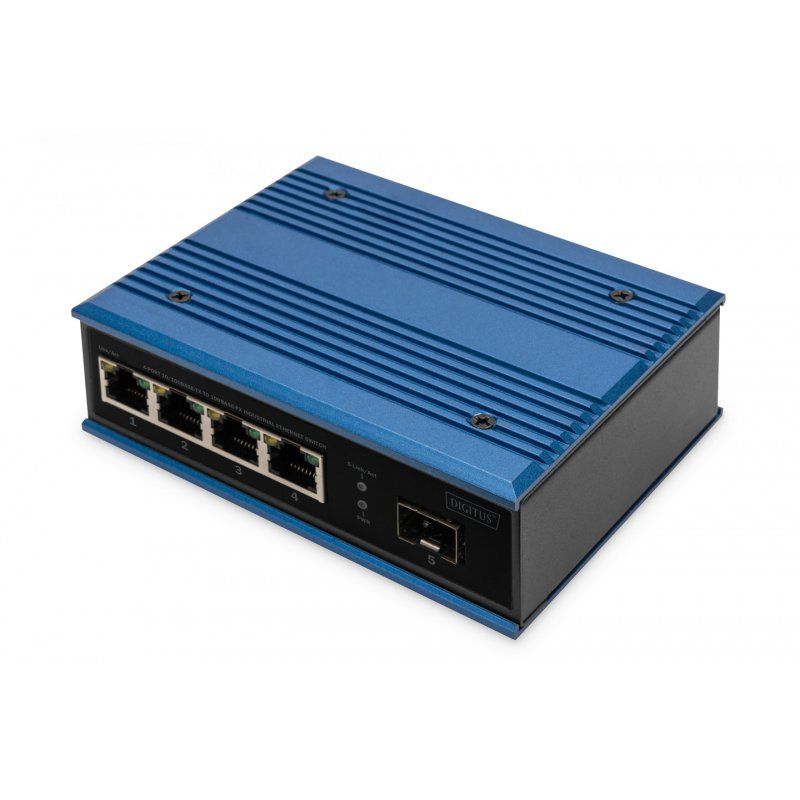

Digitus Digitus 4 Port Fast Ethernet Network Switch, Industrial, Unmanaged, 1 SFP Uplink

Digitus 4 Port Fast Ethernet Network Switch, Industrial, Unmanaged, 1 SFP Uplink, Unmanaged, Fast Ethernet (10/100), Full duplex
DN-651130
4016032485490
€89.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 4 Port Fast Ethernet Network Switch, Industrial, Unmanaged, 1 SFP Uplink. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 0.1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u. DC input voltage: 12 - 52 V. Power connector: Terminal block (6-pin)

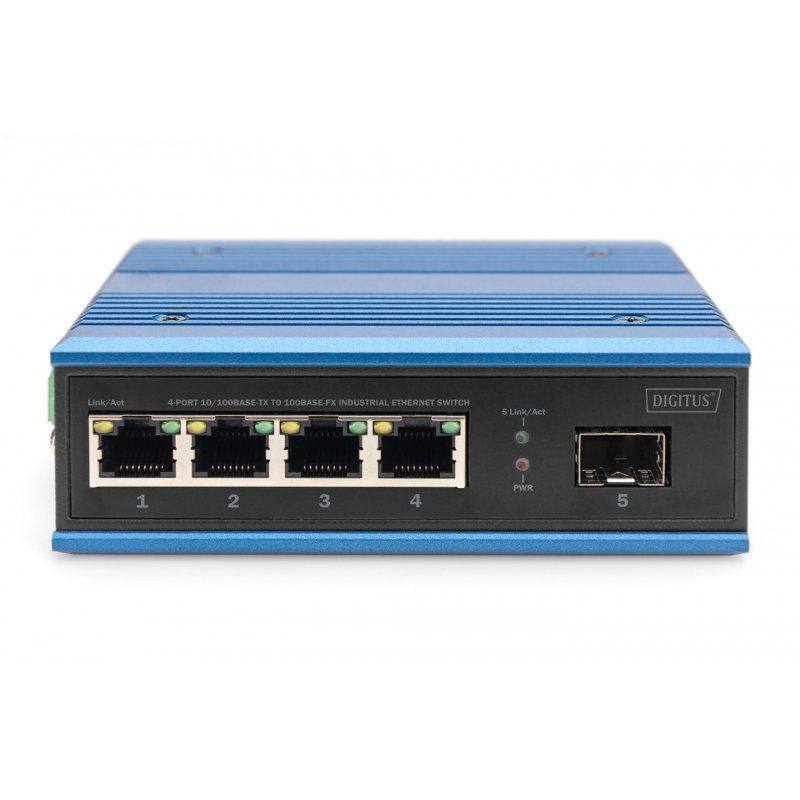

  • 4-port 10/100Base-Tx RJ45 with autonegotiation and auto-MDI/ MDI-X function
  • 1-port 100Base-Fx interface SFP
  • 12V to 48V DC, redundant power input
  • -40℃ to 80℃ operating temperature
  • IP40 aluminum housing
  • Supports 6KV DC Ethernet ESD protection
  • Supports 6KV DC EFT protection for power line
  • Free Fall, Shock and Vibration Stability

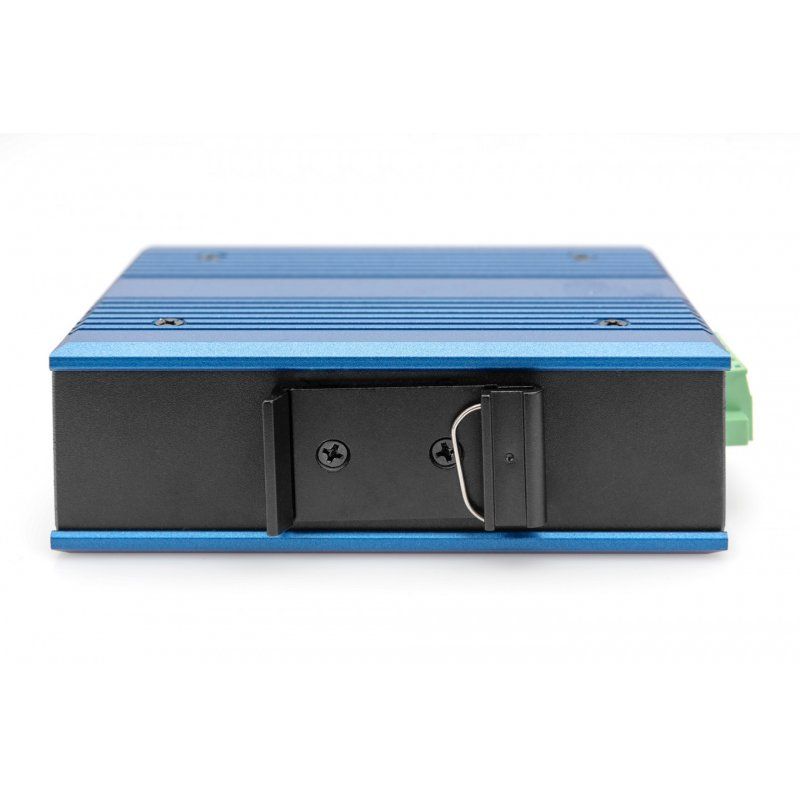

  • DIN-rail Installation
  • Performance Specification: Bandwidth: 1.6Gbps, Packet Buffer Memory:1Mbit, Packet Forwarding Rate:1.2Mpps, MAC Address Table: 2K
  • Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
  • LED Indicator: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow

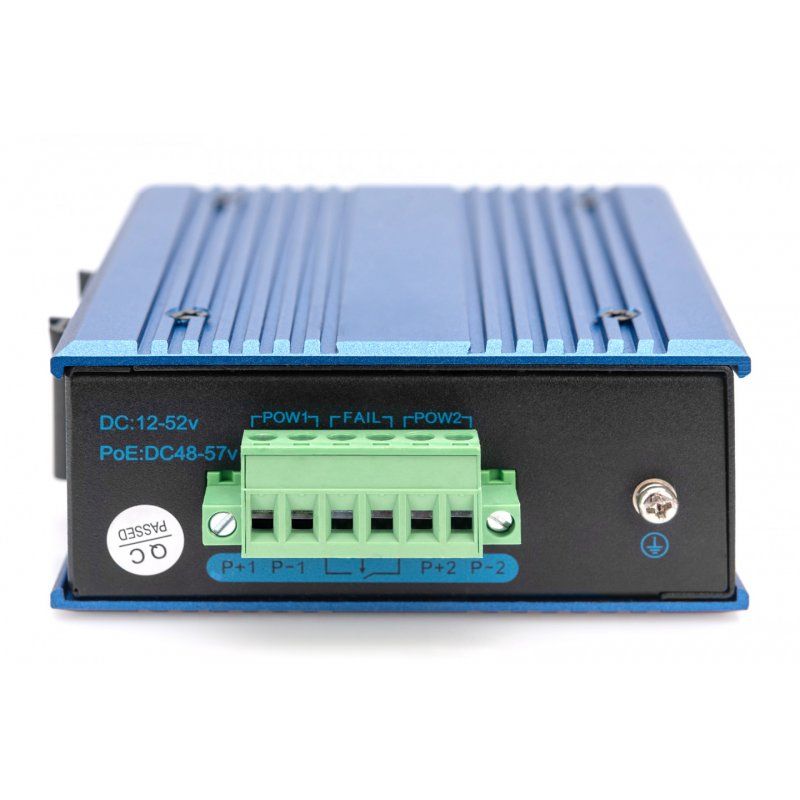

  • Power Input: 12 to 48V DC redundant power
  • Power Consumption: < 3 watts
  • Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
  • Industry Standard: FCC CFR47 Part 15,EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV, IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV, IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz), IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
  • Dimensions (W x D x H): 118 x 92.4 x 40 mm
  • Weight: Product Weight: 0.48KG
  • Working Environment: working temperature: -40～80℃ ;Storage temperature: -40～80℃
  • Relative Humidity: 5%~95 % ( no condensation)
  • Relative humidity: 5% to max. 95% (non-condensing)

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DN-651130
Weight
1

Specific References

ean13
4016032485490
