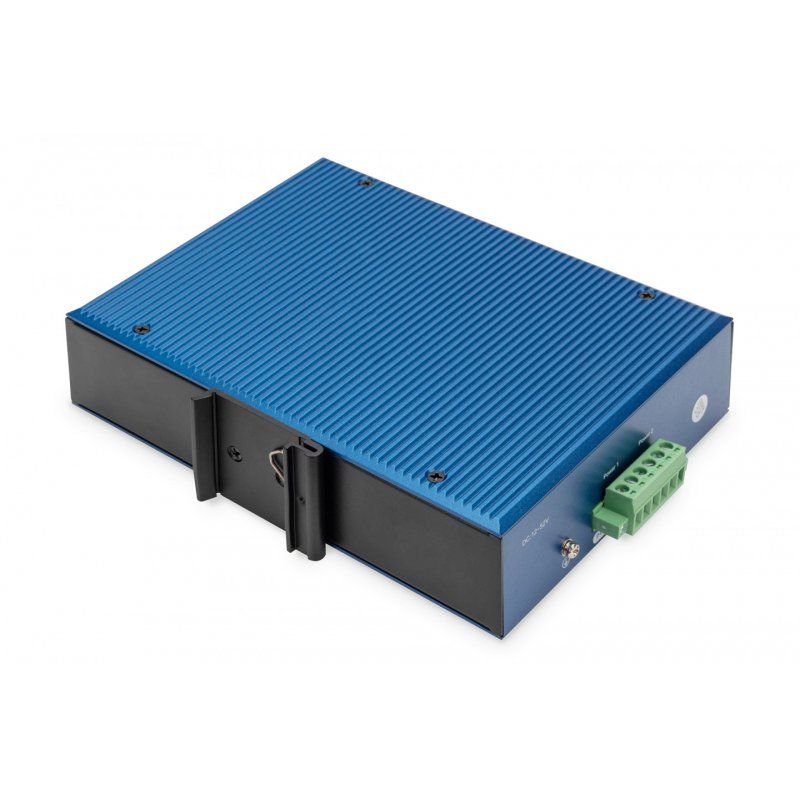

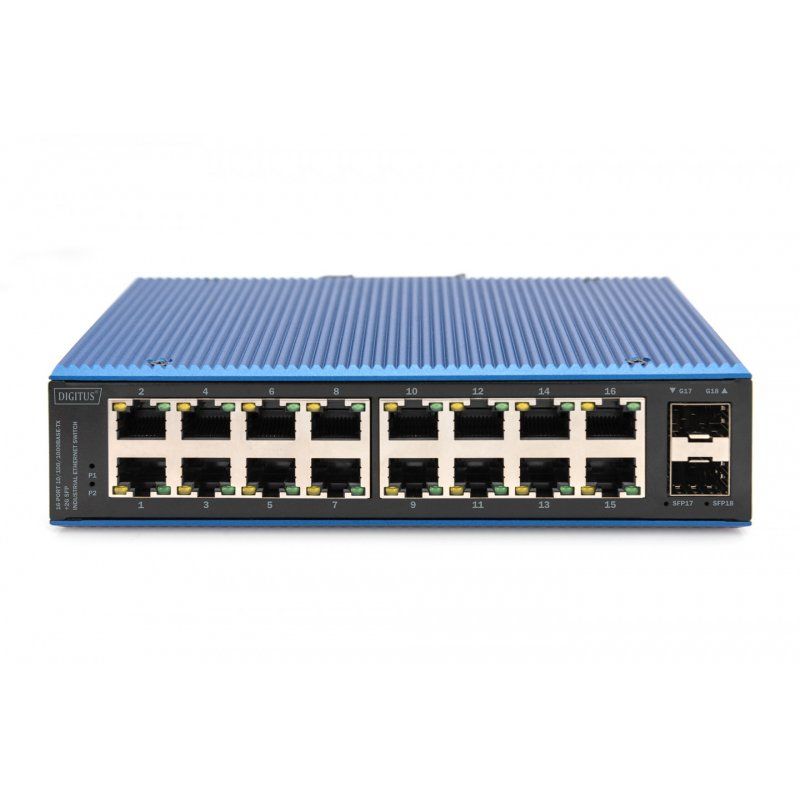

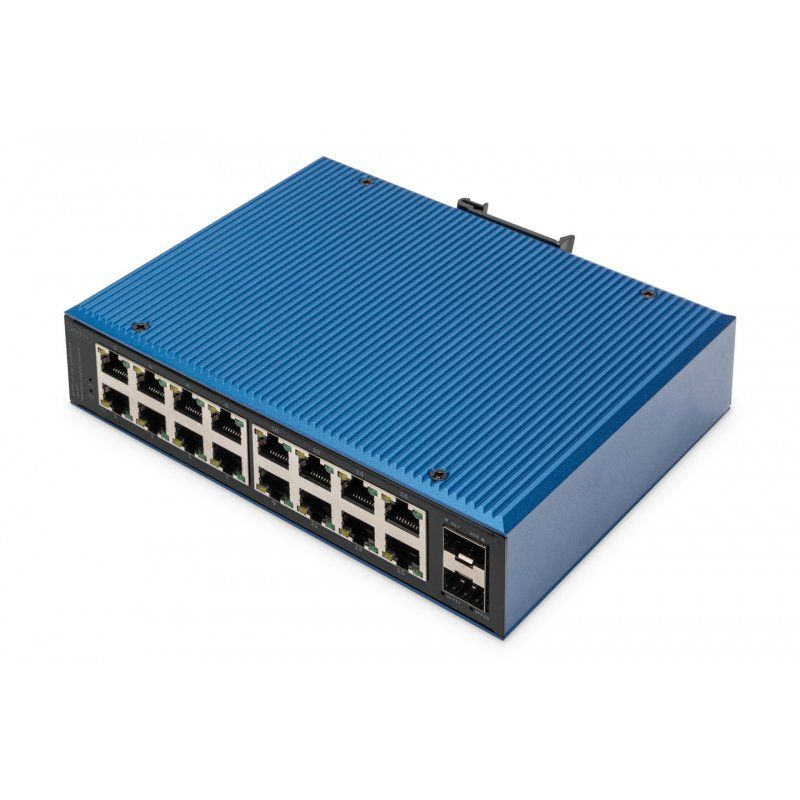

Digitus Digitus 16 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged, 2 SFP Uplink
Digitus 16 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged, 2 SFP Uplink, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex
DN-651138
4016032486084
€369.90
VAT included
Description
Digitus 16 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged, 2 SFP Uplink. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 52 V. Power connector: Terminal block (6-pin)
- 16-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
- 2-Port SFP uplink
- -40℃ to 80℃ operating temperature
- Enclosure: IP40 aluminum housing
- Supports Air discharge: ±12kV
- Contact discharge: ±8kV
- Free Fall, Shock and Vibration Stability

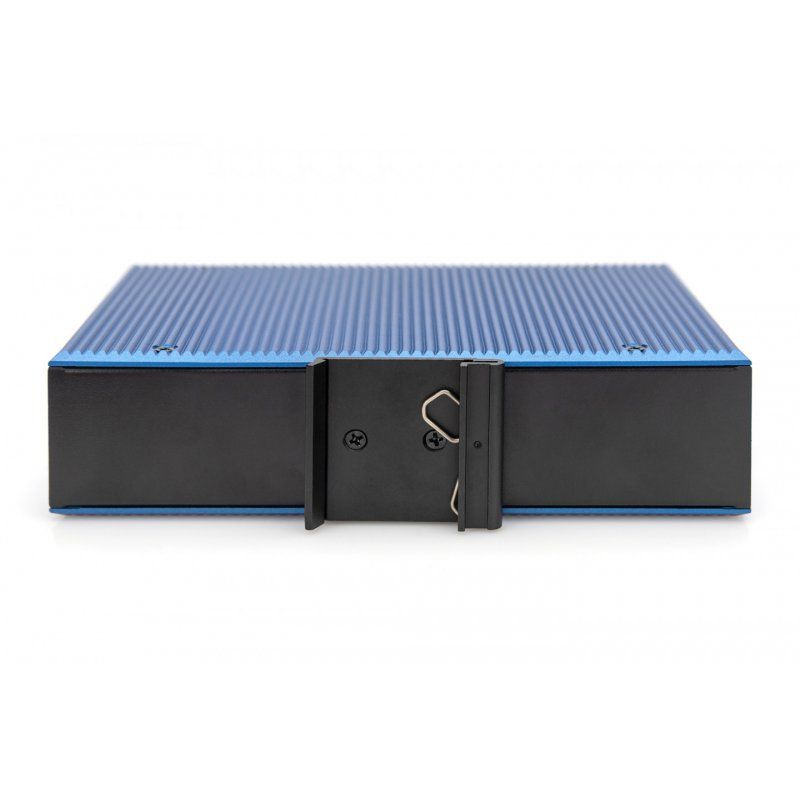

- DIN-rail hardware design
- Performance Specification: Bandwidth: 52Gbps, Packet Buffer Memory: 4.1Mbit, Packet Forwarding Rate: 38.7Mpps, MAC Address Table: 8K
- Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
- LED Indicator: Power: Red, Ethernet: Yellow

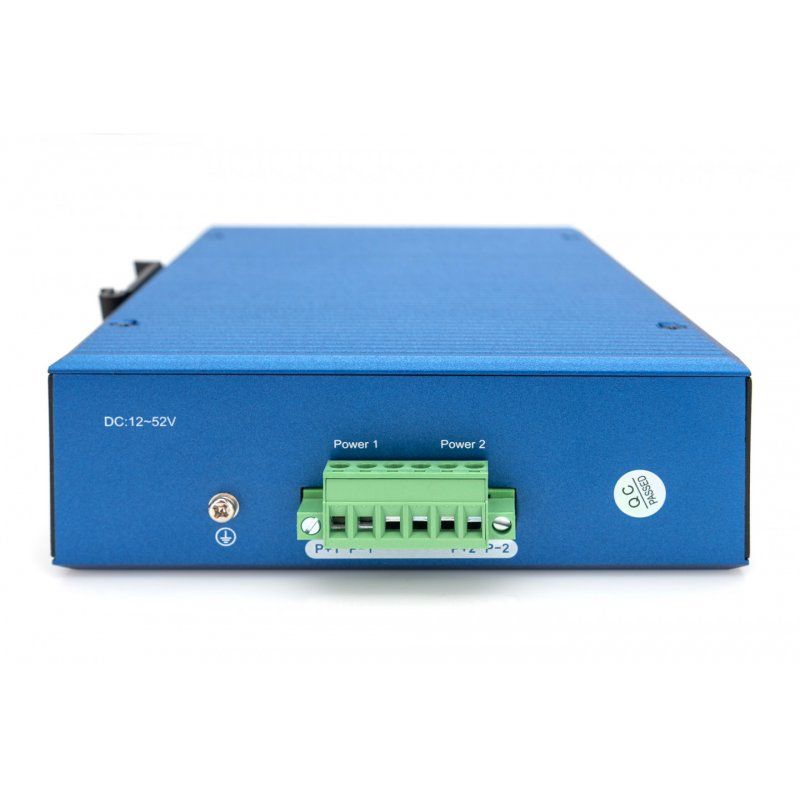

- Power Input: 12 to 57V DC redundant power
- Power Consumption: 10 watts
- Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
- Network cables: 10BASE-T: Cat3,4,5 UTP(≤100 meter), 100BASE-TX: Cat5 or later UTP(≤100meter)
- Indusrty Strandard: Free fall: IEC 60068-2-32; Vibration: IEC 60068-2-6
- Dimensions (W x D x H): 175.6 x 135 x 45.5 mm
- Weight: Product Weight: 1.0KGS
- Working Environment: working temperature: -40～80℃ ;Storage temperature: -40～80℃
- Relative Humidity: 5%~95 % ( no condensation)
- Relative humidity: 5% to max. 95% (non-condensing)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Modèle
- DN-651138
- Weight
- 1
Specific References
- ean13
- 4016032486084
