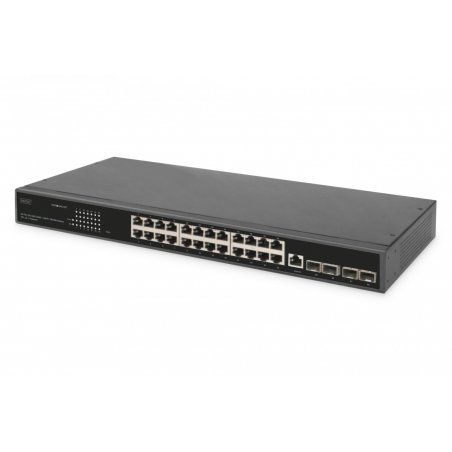

Digitus Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19", L2+ Features

Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19", L2+ Features, Unmanaged, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
DN-80223
4016032485452
€409.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19", L2+ Features. Switch type: Unmanaged, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w,IEEE 802.3ad
  • Interface: 24*10/100/1000Mbps RJ45 Port, 4* 10G SFP+ Slots, 1*Console
  • Indicator: PWR, LINK/ACT, SYS
  • Network media: 10BASE-T: UTP category 3,4,5 cable（≤100m）, 100BASE-TX: UTP category 5, 5e cable（≤100m）,1000BASE-T: UTP category 5e, 5 cable（≤100m） 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF
  • MAC Address Table: 16K, Auto-learning, Auto-aging
  • jumbo frame: 12K Bytes
  • Transfer Mode: Store-and-forward
  • Packet Forward Speed: 95.23Mpps
  • Switching Capacity:128Gbps
  • Packet buffer: 12Mbit
  • Dimensions(L*W*H): 440*260*44mm
  • Fan Quantity: Fanless
  • Green energy saving: IEEE 802.3az
  • Power supply: 24W
  • Input Power Supply: 12V/2A
  • Operating Temperature: 0°C ~ 40 °C
  • Storage Temperature:-40 °C ~ 70 °C
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing
  • System Settings: Basic information, system status, user management,SNTP configuration, importing/exporting configuration files, firmware upgrade
  • Port Settings: Basic configuration, port statistics, Broadcast Storm, Port Rate limiting, Port security, link aggregation, port Mirroring, and port Isolation, Port aggregation,Load balancing, static aggregation, LACP
  • MAC binding: MAC static binding, dynamic learning, MAC binding automatic conversion, MAC aging and learning restriction, and MAC filtering
  • VLAN configuration: VLAN information, VLAN configuration, VLAN port configuration, Voice VLAN, QinQ, Guest-VLAN, GVRP, MVR
  • ARP: IP Source Guard, ARP Check, gratuitous-ARP, ARP defense, DAI, tri-binding
  • DHCP: IPV4/IPV6 DHCP Snooping, DHCP Server, DHCP Relay
  • STP: STP/MSTP/RSTP, PortFast，Root Guard, Bpdu Guard
  • SNMP configuration: SNMP community, SNMP view, SNMP TRAP, SNMP(V1,V2C,V3)
  • RMON configuration: RMON(1,2,3,9)
  • ACL configuration: Standard ACLs, ipv6-based ACLs, extended ACLs, Mac-based ACLs, expert ACLs, and time-range ACLs
  • QOS configuration: QOS Application, QOS Scheduling Strategy, Queue Mapping (DSCP&CoS)
  • IGMP Snooping configuration: IGMP SNOOPING configuration, multicast group information, IGMP SNOOPING VLAN, IGMP SNOOPING (V1,V2,V3)）
  • ERPS: ERPS configuration, ERPS mode, ERPS role
  • LLDP: LLDP TLV configuration to view neighbor information
  • Error-Disable: Error-Disable, Loopback-detection
  • Web tools: Ping/Ping6, Traceroute/Traceroute 6, cable detection
  • Log management: Log management and Debug information

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DN-80223
Weight
1

Specific References

ean13
4016032485452
