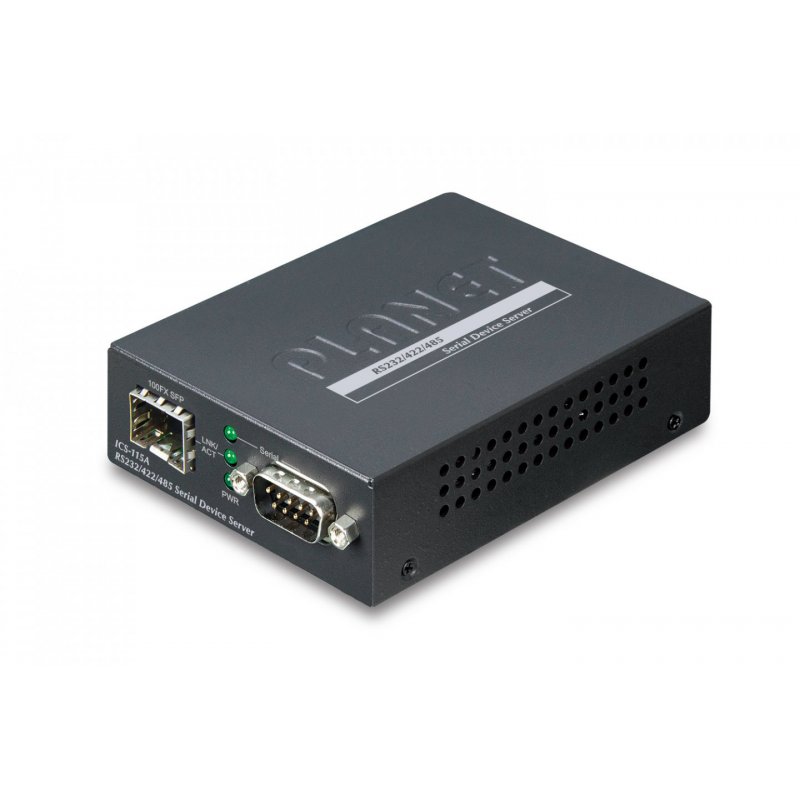

PLANET Technology Corp.po PLANET RS232/RS-422/RS485 t 100Bas-FX serial server

PLANET RS232/RS-422/RS485 t 100Bas-FX, 5.5 mA, 185 g, 97 x 70 x 26 mm, -10 - 60 °C, -10 - 70 °C, 5 - 95%
ICS-115A
4711605285018
€141.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET RS232/RS-422/RS485 t 100Bas-FX. Power consumption: 5.5 mA. Weight: 185 g, Dimensions (WxDxH): 97 x 70 x 26 mm. Product colour: Black
  • Serial Interface
  • One DB9 interface supports RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
  • Asynchronous serial data rates up to 921600bps
  • Data mode includes VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes
  • Ethernet Port
  • 1-port 100BASE-FX SFP slot
  • Management
  • IPv4 and IPv6 dual stack management
  • Remote Management Interfaces
  • IP-based Web management
  • Telnet console management
  • Windows-based VCOM utility supports searching, monitoring and configuration setting
  • IP NTP (Network Time Protocol)
  • Standard TCP/IP interface and versatile operation modes
  • Software Protocol supports ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
  • Serial Operation mode selected via management interface
  • Pair Connection mode for connecting two serial devices over a network
  • Allows a maximum of 4 hosts to be accessed as TCP client mode
  • Firmware upgrade via HTTP protocol
  • Accessible IP security control to prevent illegal users
  • Event notification
  • Remote syslog server
  • SNMP trap
  • DHCP client for IP address assignment
  • PLANET Smart Discovery utility automatically finds the client devices on the network
  • Case and Installation
  • Compact size for easy Installation
  • Standalone -- Wall mountable or DIN-rail mounting (optional accessory)
  • Co-works with PLANET MC family Media Chassis (MC-700/1500)
  • External power adaptor 5V DC, 2A max
  • Supports 6000 VDC Ethernet ESD protection
  • 10 to 60 degrees C operating temperature
  • Supports extensive LED indicators for network diagnosis
  • Reset button for resetting to factory default

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605285018
