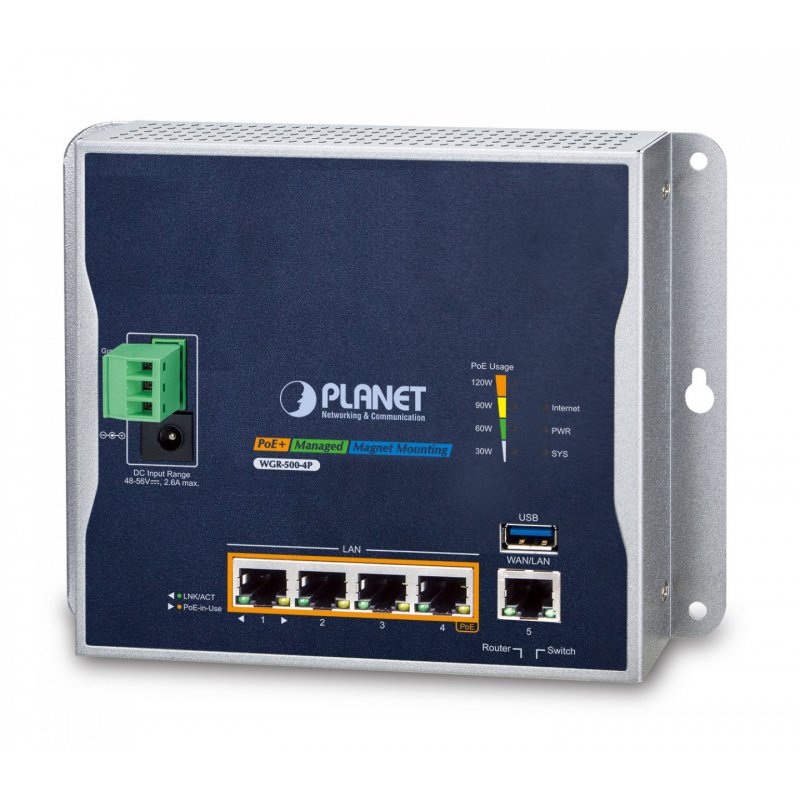

PLANET Technology Corp.po PLANET IP30 Industrial Wall-mount wired router Gigabit Ethernet Blue, Grey

PLANET IP30 Industrial Wall-mount, Gigabit Ethernet, Blue, Grey
WGR-500-4P
4711605283885
€139.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IP30 Industrial Wall-mount. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE..., Ethernet interface type: Gigabit Ethernet. Product colour: Blue, Grey. Power source type: DC, PoE. Width: 180 mm, Depth: 140 mm, Height: 24.4 mm
  • Physical Port
  • 4-port 10/100/1000BASE-T RJ45 with IEEE 802.3af / 802.3at PoE injector
  • 1-port 10/100/1000BASE-T RJ45 for WAN port or LAN port interface (router mode/switch mode)
  • 1 x USB 3.0 port for back up and restoration of configuration file
  • Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters
  • PoE Management
  • PoE Port status monitoring
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE Port power feeding priority
  • Per PoE port power limit
  • PD classification detection
  • PoE alive check
  • Industrial Case and Installation
  • Compact size with fixed wall mounting, magnetic wall mounting or DIN-rail design
  • IP30 metal case
  • Supports -10 to 60 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Dual power input design
  • 48V~56V DC wide power input with polarity reverse protect function
  • 3-pin terminal block or DC jack connector
  • Layer 2 Features
  • Supports IEEE 802.1Q tagged VLAN
  • Supports IEEE 802.1D Spanning Tree Protocol (STP)
  • Layer 3 IP Routing Features
  • IPv6 support
  • WAN Internet types: Dynamic IP(DHCP Client), static IP, PPPoE, L2TP, PPTP
  • Static and dynamic (RIP1 and 2) routing
  • Supports Port Forwarding, DMZ, UPnP and for various networking applications
  • IP/MAC-based bandwidth control
  • Supports Dynamic DNS and PLANET DDNS
  • Security
  • Port filtering lets you either allow or prevent which applications can access the Internet
  • MAC filtering allows you to include or exclude computers and devices based on their MAC address
  • URL filtering allows you to control access to Internet websites in an URL list
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • Management
  • Management Interfaces
  • Web GUI management
  • Static and DHCP for IP address assignment
  • System Maintenance
  • Firmware upload/download via HTTP
  • Hardware reset button for system reboot or reset to factory default
  • NTP Network Time Protocol
  • Event message logging to remote syslog server
  • PLANET Smart Discovery Utility for deployment management

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605283885

Comments

No customer reviews for the moment.
