PLANET Technology Corp.po PLANET IFT-802T network media converter 200 Mbit/s 1310 nm Blue
PLANET IFT-802T, 200 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Fast Ethernet, 10,100 Mbit/s, 10BASE-T, 100BASE-TX, 100BASE-FX
IFT-802T
4711213687556
€145.90
VAT included
Description

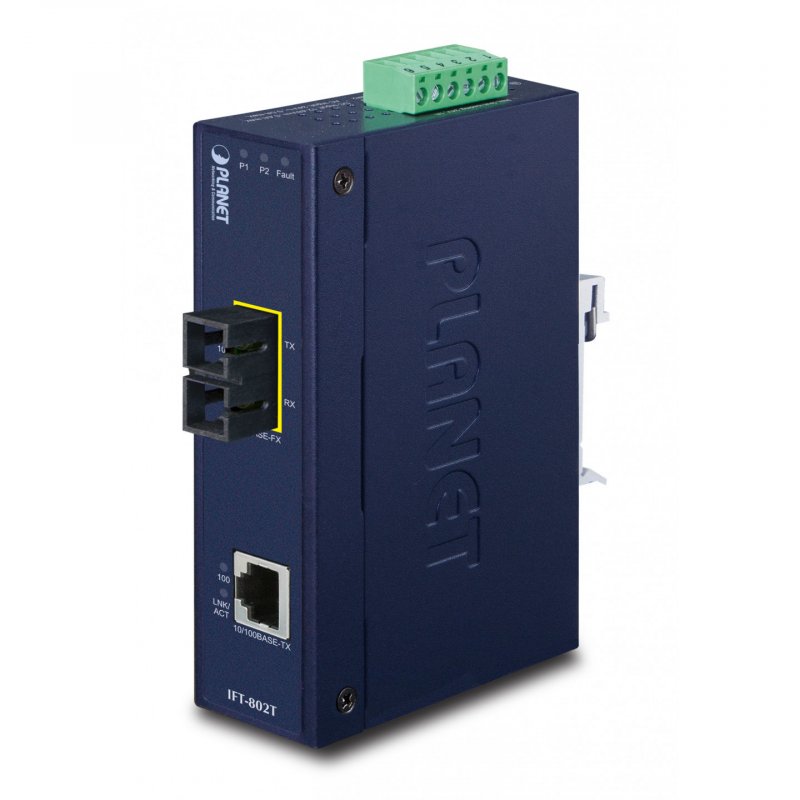

PLANET IFT-802T. Maximum data transfer rate: 200 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Fast Ethernet. Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1310 nm. Product colour: Blue, International Protection (IP) code: IP30, Certification: FCC, CE. Input voltage: 12 - 48 V, Power consumption (typical): 3 W
- Interface
- 1-port 10/100Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function
- 1 100Base-FX SC interface, providing long distance up to 2km on IFT-802T
- 1 100Base-FX SC interface, providing long distance for 15km on IFT-802TS15

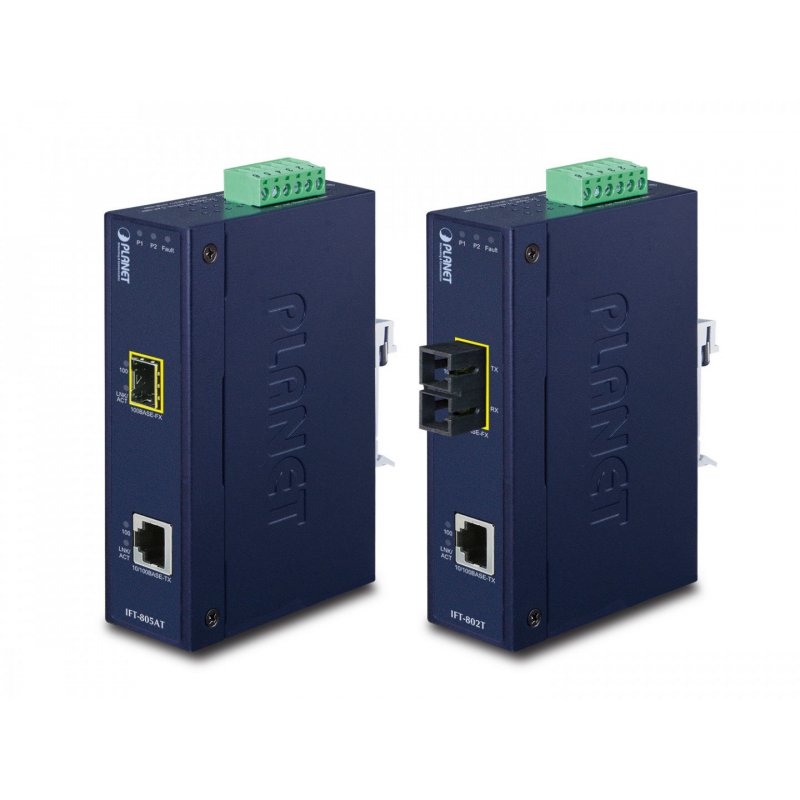

- 1 Mini-GBIC slot, providing multi choice of SFP modules on IFT-805AT
- Industrial Conformance
- 12V to 48V DC, redundant power with polarity reverse protect function
- Minus 40 to 75 degrees C operating temperature
- IP30 metal case
- Relay alarm for port breakdown
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
- Layer 2 Features
- Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
- Auto-MDI / MDI-X detection and auto negotiation in half-duplex / full-duplex modes for 10 /100Base-TX RJ-45 port
- Store-and-Forward Switching Architecture
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Supports packet size of up to 1522bytes
- CSMA/CD Protocol
- Automatic source address learning and aging
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET Technology Corp.po
Specific References
- ean13
- 4711213687556
