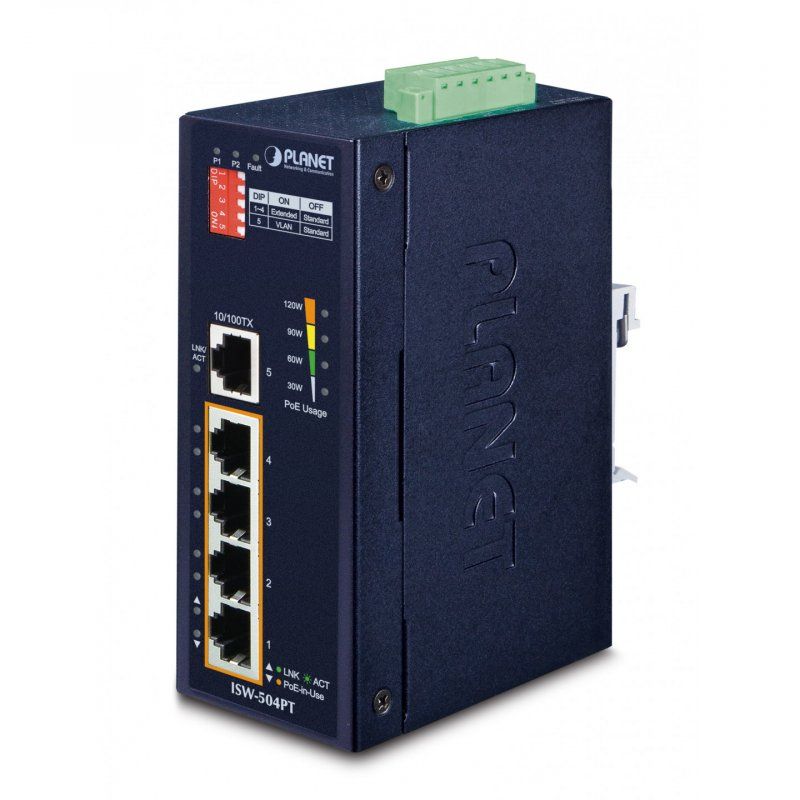

PLANET Technology Corp.po PLANET ISW-504PT network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black

PLANET ISW-504PT, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mountable
ISW-504PT
4711213688829
€222.92
VAT included

Visa
Mastercard
PayPal

Description

PLANET ISW-504PT. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1024 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
  • Interface
  • －4 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45 copper ports (Port-1 to Port-4)
  • －1 10/100BASE-TX Fast Ethernet non-PoE RJ45 copper port
  • －One terminal block for master and slave power input (Power Range: 12 ~ 48V DC redundant power)
  • －Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 25-watt PoE transmission distance of 250m at speed of 10Mbps (Only for Port-1 to Port-4)
  • Power over Ethernet
  • －Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • －Backward compatible with IEEE 802.3af Power over Ethernet
  • －Up to 4 ports of IEEE 802.3af/at devices powered
  • －Up to 120-watt PoE budget
  • －Supports PoE power up to 36 watts for each PoE port
  • －Each port supports 54V DC power to PoE powered device
  • －Auto detects powered device (PD)
  • －Circuit protection prevents power interference between ports
  • －Remote power feeding up to 100m in standard mode with 250m in extend mode
  • Switching
  • －Hardware-based 10/100Mbps (half/full duplex), auto-negotiation and auto MDI/MDI-X
  • －Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • －IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • －1K MAC address table size
  • －1536 Bytes jumbo frame
  • －IEEE 802.1Q VLAN transparency
  • －Automatic address learning and address aging
  • －Supports CSMA/CD protocol
  • Industrial Case and Installation
  • －IP40 metal case
  • －DIN-rail, wall-mount design or side wall-mount design
  • －12~48V DC redundant power with polarity reverse protect function
  • －Fault alarm for power input failed
  • －Supports 5KV DC Ethernet ESD protection
  • －-40 to 75 degrees C operating temperature
  • －4 real-time PoE power usage indicators

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711213688829
