• Rupture de stock, ce produit n'est plus commercialisé

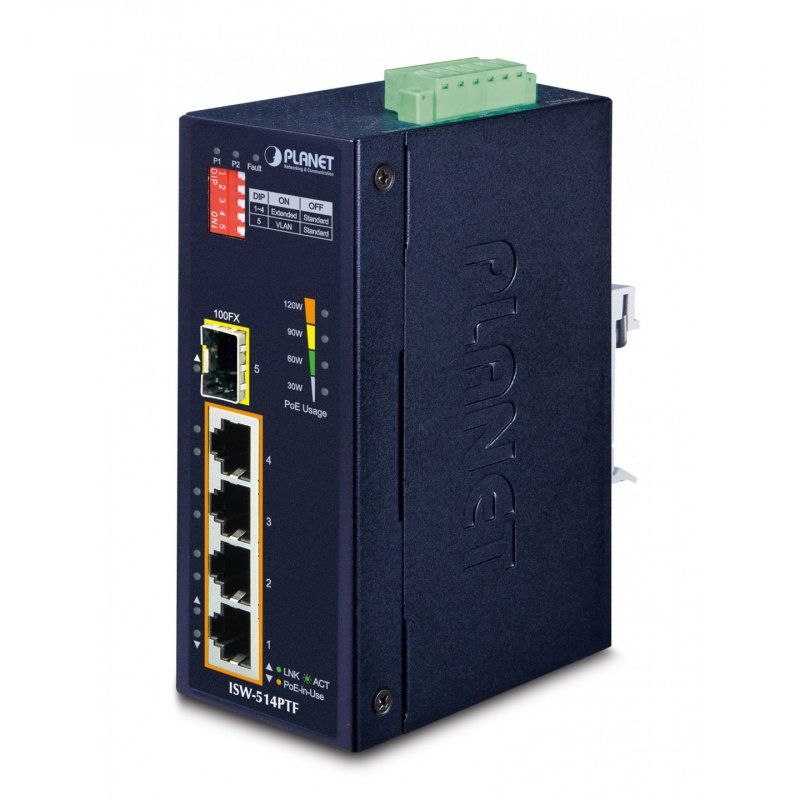

PLANET Technology Corp.po PLANET ISW-514PTF network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Blue

PLANET ISW-514PTF, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mountable
ISW-514PTF
4711213688812
€214.79
VAT included

Visa
Mastercard
PayPal

Description

PLANET ISW-514PTF. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 24 V. Power over Ethernet (PoE). Wall mountable
  • Interface
  • 4 10/100BASE-TX Fast Ethernet RJ45 copper ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
  • 1 100BASE-FX SFP interface
  • One terminal block for master and slave power input (Power Range: 12 ~ 48V DC redundant power)
  • Hardware-based DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 25-watt PoE transmission distance of 250m at speed of 10Mbps (Only for Port-1 to Port-4)
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/at devices powered
  • Up to 120-watt PoE budget
  • Supports PoE power up to 36 watts for each PoE port
  • Each port supports 54V DC power to PoE powered device
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode with 250m in extend mode
  • Switching
  • Hardware-based 10/100Mbps (half/full duplex), auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 2K MAC address table size
  • 10K jumbo frame
  • IEEE 802.1Q VLAN transparency
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Industrial Case and Installation
  • IP40 metal case
  • DIN-rail , wall-mount design or side wall-mount design
  • 12~48V DC redundant power with polarity reverse protect function
  • Fault alarm for power input failed
  • Supports 5KV DC Ethernet ESD protection
  • 40 to 75 degrees C operating temperature
  • 4 real-time PoE power usage indicators

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711213688812

Comments

No customer reviews for the moment.
