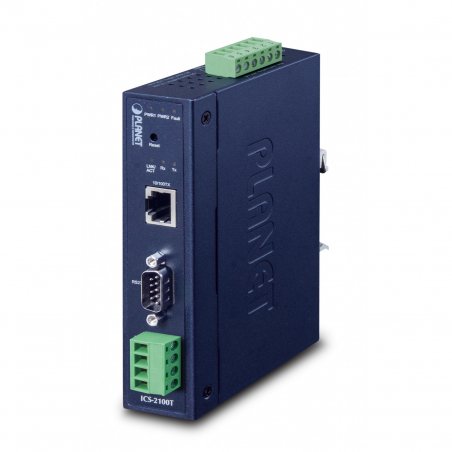

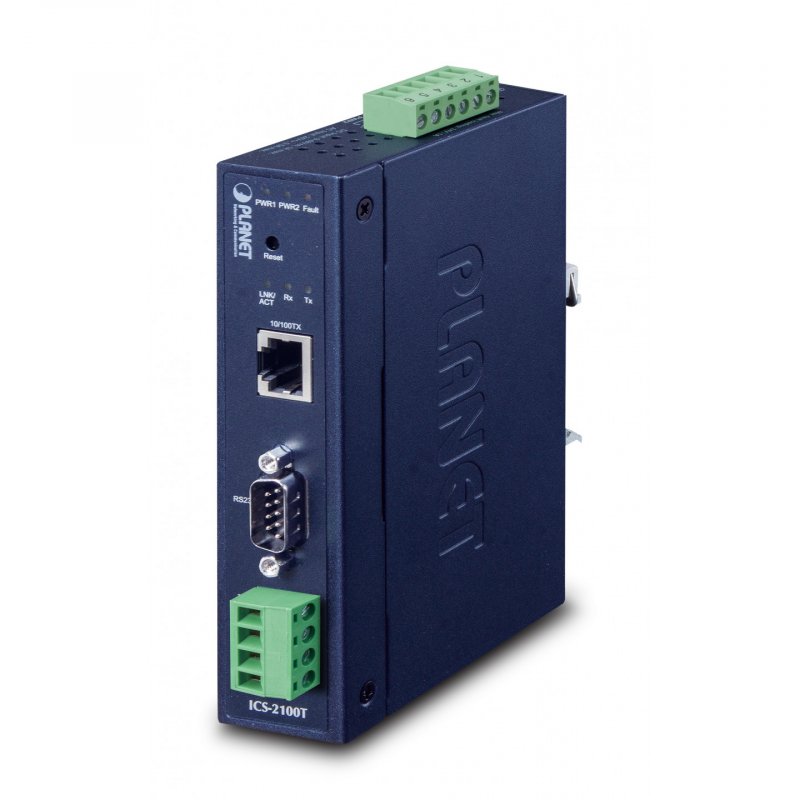

PLANET Technology Corp.po PLANET IP30 Industrial 1-Port serial server

PLANET IP30 Industrial 1-Port, System, 392 g, 32 x 87.8 x 135 mm, -40 - 75 °C, -40 - 85 °C, 5 - 95%
ICS-2100T
4711605285100
€199.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IP30 Industrial 1-Port. LED indicators: System. Weight: 392 g, Dimensions (WxDxH): 32 x 87.8 x 135 mm. Product colour: Blue, Housing material: Metal, International Protection (IP) code: IP30
  • Serial Interface
  • One DB9 interface that supports RS232
  • One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 standards
  • Asynchronous serial data rates up to 921600bps
  • Data modes include VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes
  • Ethernet Interface
  • 1-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
  • Management
  • IPv4 and IPv6 dual stack management
  • Remote Management Interfaces
  • IP-based Web management
  • Telnet console management- Windows-based VCOM utility supports searching, monitoring and configuration setting
  • IP NTP (Network Time Protocol) and DNS management
  • Standard TCP/IP interface and versatile operation modes
  • Software Protocol supports ARP, ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
  • Serial Operation mode selected via management interface
  • Pair Connection mode for connecting two serial devices over a network
  • Allows a maximum of 4 hosts to be accessed as TCP client mode
  • Firmware upgrade via HTTP protocol
  • Accessible IP security control to prevent illegal users
  • Event notification
  • Remote Syslog server
  • SNMP trap
  • Relay output alarm
  • DHCP client for IP address assignment
  • PLANET Smart Discovery utility automatically finds the client devices on the network
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • Redundant power design
  • 9 to 48V DC / 24V AC, redundant power with reverse polarity protection
  • Supports 6000 VDC Ethernet ESD protection
  • Supports -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries
  • Supports extensive LED indicators for network diagnosis
  • Reset button for resetting to factory default

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605285100
