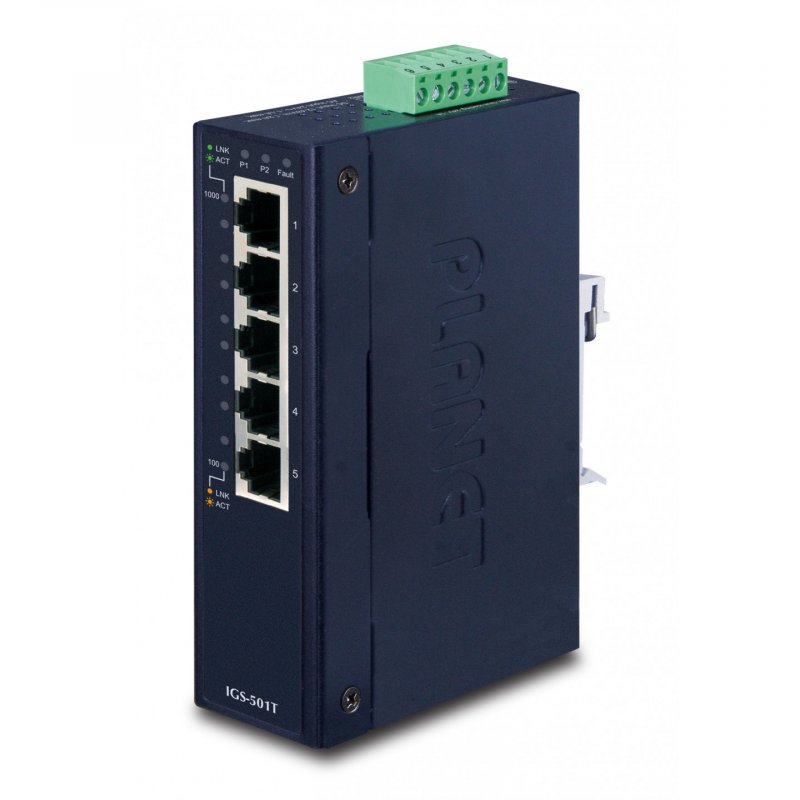

PLANET Technology Corp.po PLANET IGS-501T network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-501T, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
IGS-501T
4711213687334
€135.90
VAT included
Description
PLANET IGS-501T. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 48 V. Wall mountable
- Physical Port
- 5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function
- Layer 2 Features
- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- High performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 2K absolute MAC addresses
- 1M bits on-chip buffer memory
- 9K Jumbo packet size support
- Automatic address learning and address aging
- CSMA/CD Protocol
- Industrial Case / Installation
- IP30 metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
- Supports EFT protection 6000V DC for power line
- Supports 6000V DC Ethernet ESD protection
- Minus 40 to 75 degrees C operating temperature
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET Technology Corp.po
Specific References
- ean13
- 4711213687334
