• Rupture de stock, ce produit n'est plus commercialisé

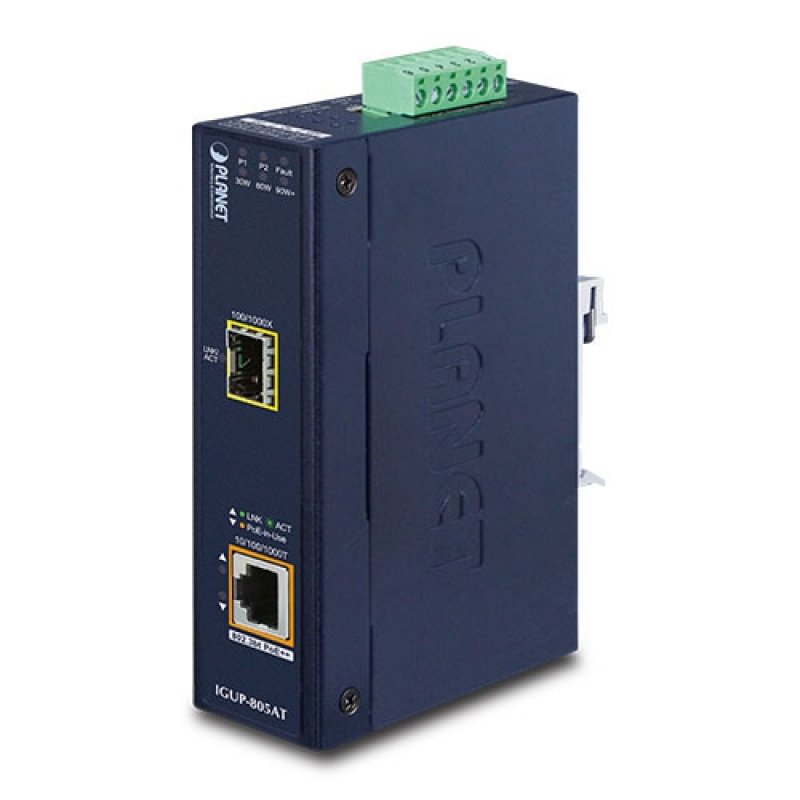

PLANET Technology Corp.po PLANET IGUP-805AT network media converter 1000 Mbit/s Blue

PLANET IGUP-805AT, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, 1000Base-BX, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u,..., Half, SFP
IGUP-805AT
4711605284486
€282.00
VAT included

Visa
Mastercard
PayPal

Description

PLANET IGUP-805AT. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-BX, 1000Base-LX, 1000Base-SX. Fiber optic connector: SFP, Connectivity technology: Wired. LED indicators: Activity, Fault, Link, PoE, Power, Product colour: Blue, International Protection (IP) code: IP30. Input voltage: 12 - 56 V, Power consumption (typical): 4.44 W, Power consumption (max): 98 W. Width: 32 mm, Depth: 87 mm, Height: 135 mm
  • Physical Port
  • 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE Injector function
  • 1 SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
  • Power over Ethernet
  • Complies with IEEE 802.3bt PoE++ Type-4 PSE
  • Backward compatible with IEEE 802.3af/at PoE+ standard
  • 1 IEEE 802.3af/at/bt device powered
  • Supports PoE Power up to 95 watts for PoE port
  • Provides DC 55V power over RJ45 Ethernet cable to PD with Ethernet port
  • Auto-detects IEEE 802.3bt equipment and protects devices from being damaged by incorrect installation
  • Remote power feeding up to 100m
  • IEEE 802.3af/at/bt splitter devices compatible
  • Layer 2 Features
  • Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode on RJ45 port
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Hardware
  • LED Indicators
  • System: Power 1, Power 2, Fault and PoE usage
  • Fiber port: LNK/ACT
  • 10/100/1000BASE-T port: LNK/ACT, PoE-in-use
  • DIP switch 1: LFPP (Link Fault Passthrough PoE Control) On/Off
  • DIP switch 2: Standard (BT)/Legacy (POH) mode selection
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 12 ~ 56V DC redundant power with reverse polarity protection and connective removable terminal block for master and slave power
  • Supports 6000 VDC Ethernet ESD protection
  • Minus 40 to 75 degrees C operating temperature

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605284486
