PLANET Technology Corp.po PLANET IGS-510TF network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-510TF, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
IGS-510TF
4711605284448
€194.90
VAT included
Description
PLANET IGS-510TF. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 4000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 - 48 V. Wall mountable

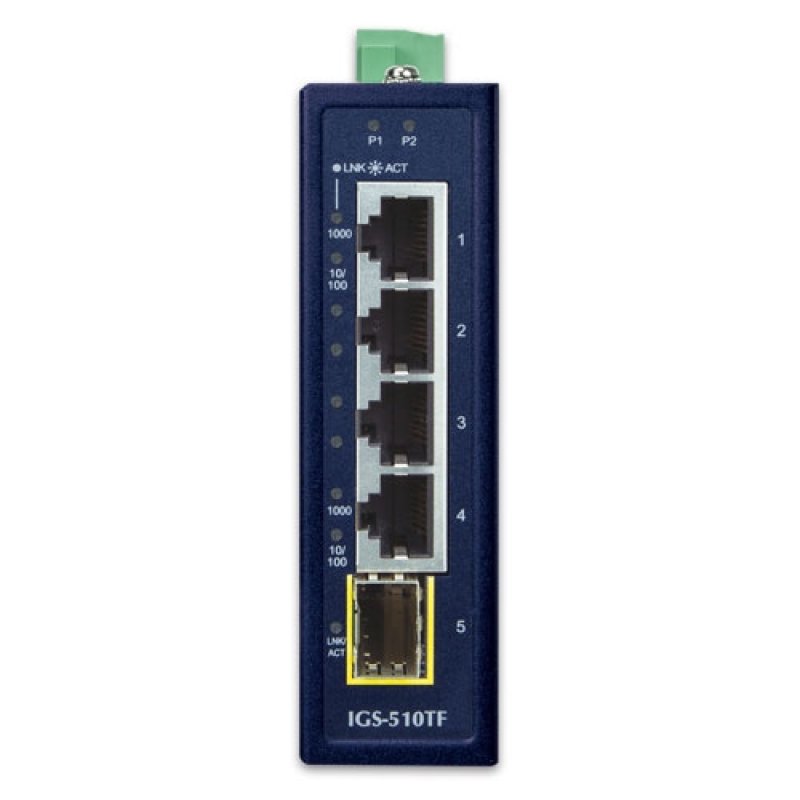

- Physical Port
- 4-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
- One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
- Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 4K absolute MAC addresses
- 9K jumbo packet size
- Automatic address learning and address aging
- CSMA/CD Protocol
- Industrial Case and Installation
- IP30 metal case
- DIN rail and wall-mount designs

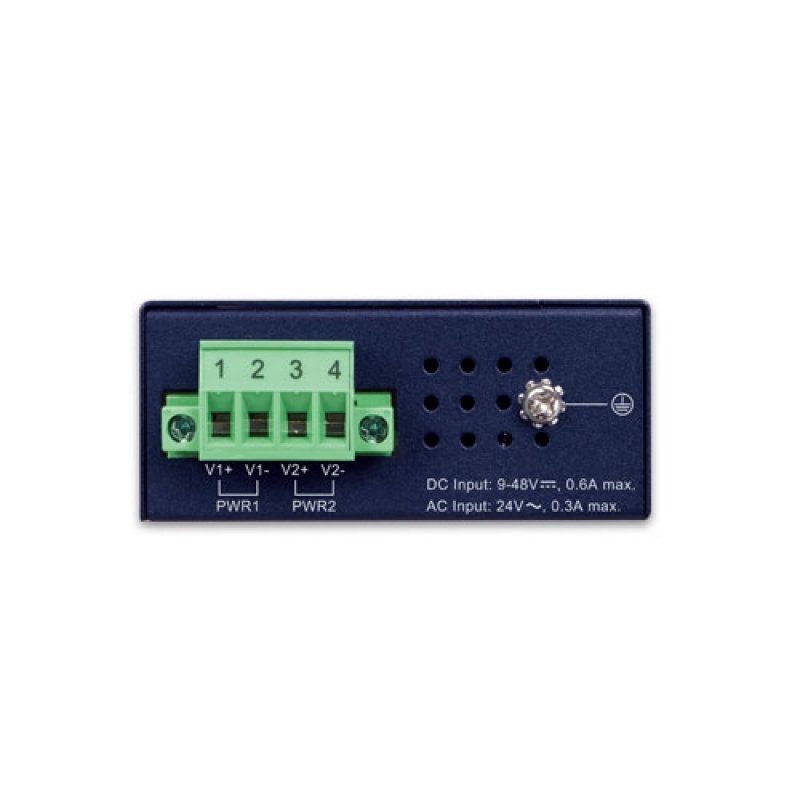

- 9 to 48V DC and 24V AC power support, redundant power with reverse polarity protection
- Removable terminal block for master and slave power
- Supports 6000 VDC Ethernet ESD protection
- Supports -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET Technology Corp.po
Specific References
- ean13
- 4711605284448
