• Rupture de stock, ce produit n'est plus commercialisé

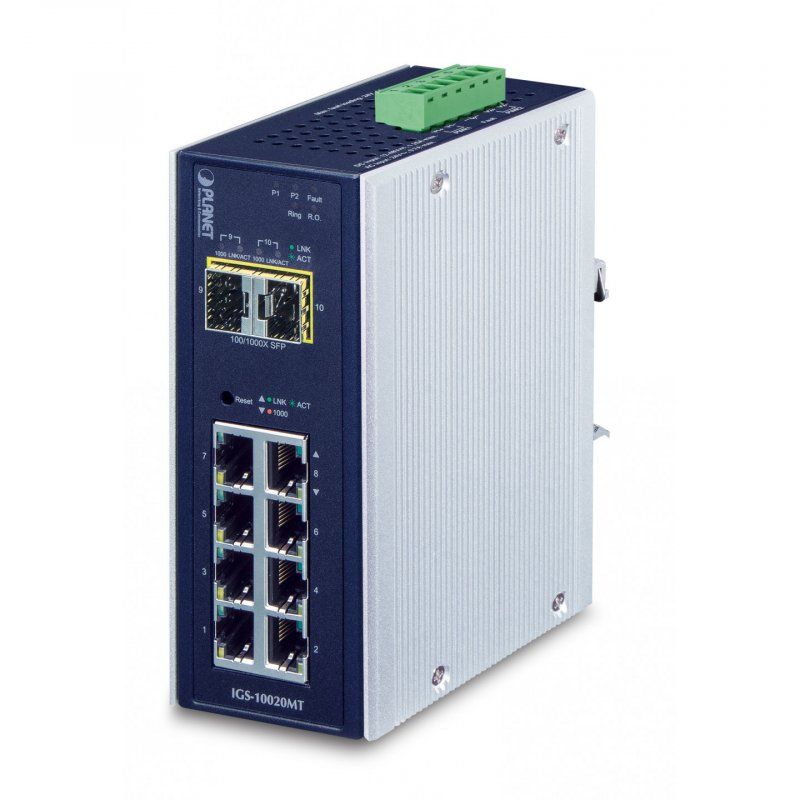

PLANET Technology Corp.po PLANET IGS-10020MT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black

PLANET IGS-10020MT, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
IGS-10020MT
4711213688782
€350.22
VAT included

Visa
Mastercard
PayPal

Description

PLANET IGS-10020MT. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 26 Gbit/s. Networking standards: IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... Wall mountable
  • Physical Port
  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 2 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
  • Industrial Case and Installation
  • IP30 aluminum case protection
  • DIN-rail or wall-mount design
  • Redundant power design
  • 12 to 48V DC, redundant power with polarity reverse protect function
  • AC 24V power adapter acceptable
  • Supports 6000 VDC Ethernet ESD protection
  • 40 to 75 degrees C operating temperature
  • Industrial Protocol
  • Modbus TCP for real-time monitoring in SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol)
  • Layer 2 Features
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • Broadcast, Multicast and Unknown Unicast
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Up to 255 VLANs groups, out of 4095 VLAN IDs
  • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Protocol-based VLAN
  • MAC-based VLAN
  • Voice VLAN
  • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  • BPDU Guard
  • Supports Link Aggregation
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Maximum 5 trunk groups, up to 10 ports per trunk group
  • Up to 26Gbps bandwidth (duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)
  • Layer 3 IP Routing Features
  • Supports maximum 32 static routes and route summarization
  • Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • IEEE 802.1p CoS
  • IP TOS/DSCP/IP precedence
  • IP TCP/UDP port number
  • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking
  • Multicast
  • Supports IPv4 IGMP Snooping v1, v2 and v3
  • Supports IPv6 MLD Snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP Snooping port filtering
  • IPv6 MLD Snooping port filtering
  • MVR (Multicast VLAN Registration)

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711213688782

Comments

No customer reviews for the moment.
