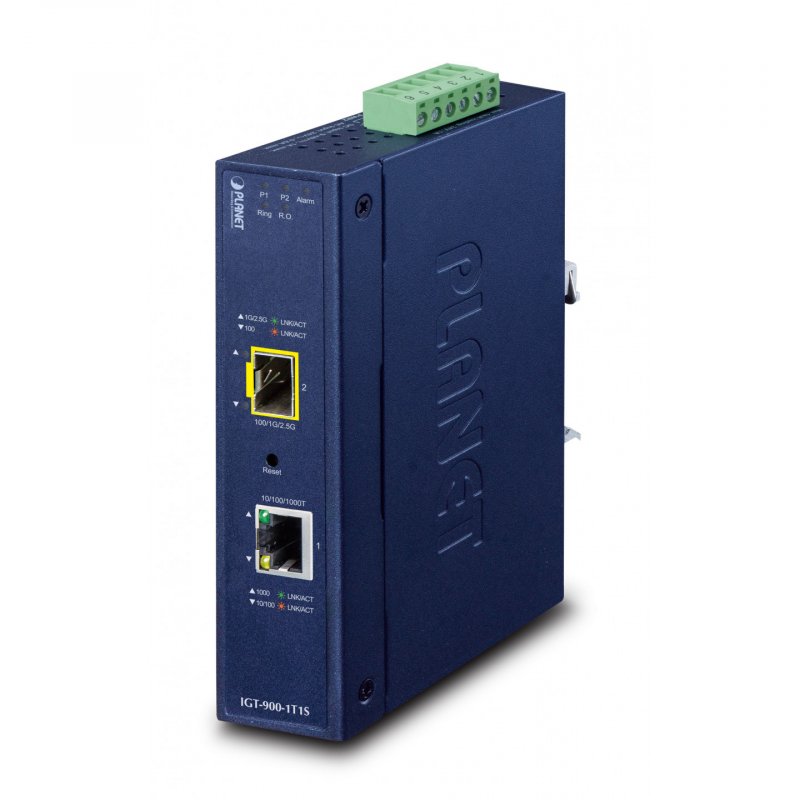

PLANET Technology Corp.po PLANET Industrial 1-Port network media converter Internal Blue

PLANET Industrial 1-Port, IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE..., SFP, Wired, Blue, Aluminium, IP30
IGT-900-1T1S
4711605286503
€259.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET Industrial 1-Port. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE.... Fiber optic connector: SFP, Connectivity technology: Wired. Product colour: Blue, Housing material: Aluminium, International Protection (IP) code: IP30. Width: 32 mm, Depth: 87 mm, Height: 135 mm
  • Physical Port
  • 1 10/100/1000BASE-T Gigabit Ethernet RJ45 port
  • 1 100/1000/2500BASE-X SFP port for SFP type auto detection
  • Industrial Protocol
  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail or wall-mount design
  • 24V AC, 9~48V DC, redundant power with reverse polarity protection
  • Supports 6KV DC Ethernet ESD protection
  • Supports -40 to 75 degrees C operating temperature
  • Layer 3 IP Routing Features
  • Supports maximum 32 static routes and route summarization
  • Routing interface provides per VLAN routing mode
  • Layer 2 Features
  • Storm Control support
  • Broadcast/Multicast/Unicast
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Port Isolation
  • MAC-based VLAN
  • IP Subnet-based VLAN
  • Protocol-based VLAN
  • VLAN Translation
  • Voice VLAN
  • GVRP
  • Supports Spanning Tree Protocol
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  • BPDU Filtering/BPDU Guard
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)
  • IEEE 802.3ah OAM
  • Link Fault Passthrough (LFP)
  • The IGT-900-1T1S supports one group (TP Port 1 and SFP Port 2) LFP function.
  • The IGT-900-2T2S supports two groups (TP Port 1 and SFP Port 3, TP Port 2 and SFP Port 4) LFP function.
  • Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • IEEE 802.1p CoS
  • IP TOS/DSCP/IP precedence
  • IP TCP/UDP port number
  • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking
  • Security
  • Authentication
  • IEEE 802.1x port-based/MAC-based network access authentication
  • Built-in RADIUS client to co-operate with the RADIUS servers
  • TACACS+ login users access authentication
  • RADIUS / TACACS+ users access authentication
  • Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605286503
