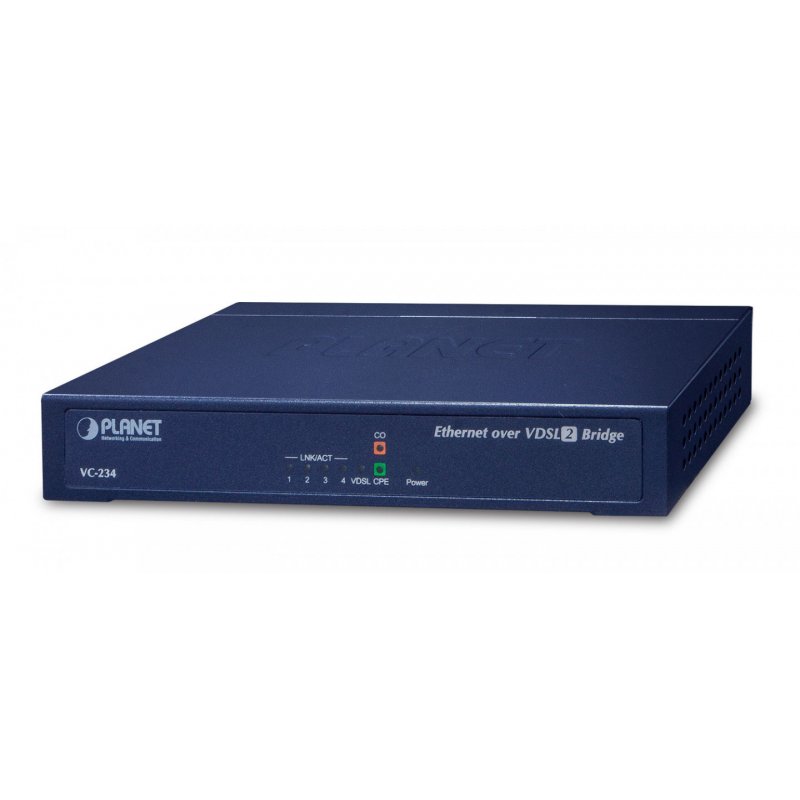

PLANET Technology Corp.po PLANET VC-234 bridge/repeater Network bridge Blue
PLANET VC-234, Network bridge, Ethernet LAN, Rack mounting, Blue
VC-234
4711213687112
€145.90
VAT included
Description
PLANET VC-234. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Product type: Network bridge, Form factor: 1U, Product colour: Blue. Power source type: DC, Power consumption (typical): 7.2 W. Width: 155 mm, Depth: 86 mm, Height: 26 mm
- Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution
- One box design, CO / CPE selectable via DIP Switch
- Defines symmetric band plan for the transmission of upstream and downstream signals
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards
- DMT (Discrete Multi-Tone) line coding
- Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
- Built-in POTS splitter to share voice and data
- Two RJ-11 connectors for each VDSL port, one for VDSL connection and one for POST connection
- Voice and data communication can be shared simultaneously based on the existing telephone wire
- Four 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X
- Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
- Hardware IGMP Snooping for Multimedia service
- VDSL2 stand-alone transceiver for simple bridge modem application
- Advantage of minimum installation time (Simply as Plug-and-Play)
- Selectable target profile and target SNR margin
- Supports extensive LED indicators for network diagnosis
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET Technology Corp.po
Specific References
- ean13
- 4711213687112
