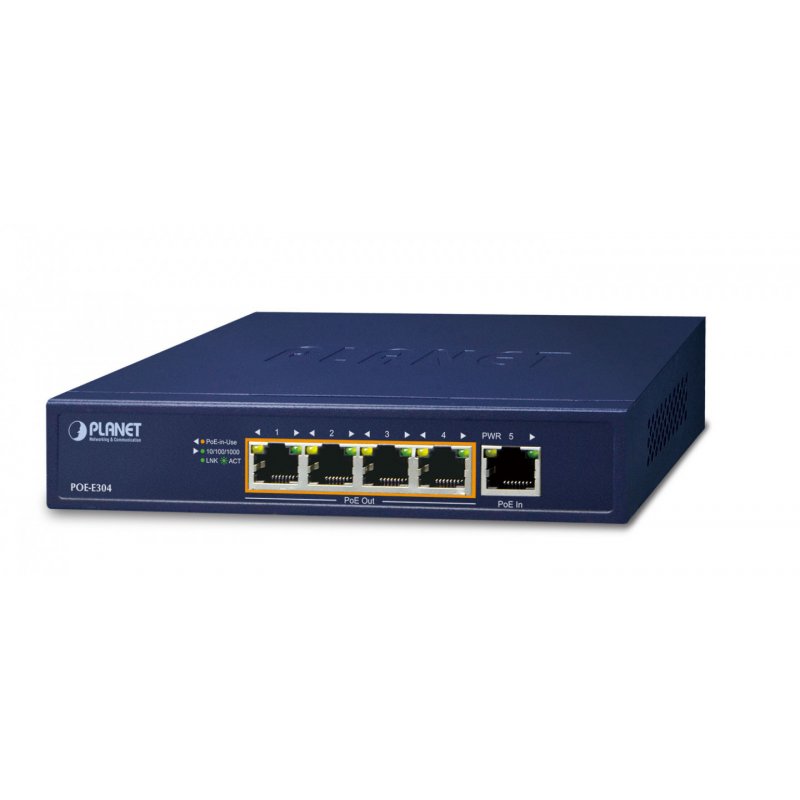

PLANET Technology Corp.po PLANET POE-E304 network extender Network transmitter & receiver Blue 10, 100, 1000 Mbit/s
PLANET POE-E304, Network transmitter & receiver, 100 m, Cat5, Cat5e, Cat6, 10,100,1000 Mbit/s, Full, 2000 entries
POE-E304
4711605282260
€116.90
VAT included
Description
PLANET POE-E304. Type: Network transmitter & receiver, Maximum transfer distance: 100 m, Cable types supported: Cat5, Cat5e, Cat6. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product colour: Blue, Housing material: Metal, Mounting type: Desk/Wall. Power consumption (max): 60 W. Width: 168 mm, Depth: 93 mm, Height: 32 mm
- Physical Port
- 5 10/100/1000BASE-T Gigabit RJ45 ports
- 1-port data + power input
- 4-port data + power output
- Power over Ethernet
- Complies with IEEE 802.3bt PoE++ PD
- Supports PoE input power up to 95 watts
- Complies with IEEE 802.3af/IEEE 802.3at PoE+/end-span PSE
- Up to 4 IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 32 watts for each PoE port
- Auto detects powered device (PD)
- Extends the range of PoE to an additional 100 meters (328ft.)
- Forwards both Ethernet data and PoE power to remote device
- Layer 2 Features
- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Integrates address look-up engine, supporting 2K absolute MAC addresses
- 9K jumbo packet support
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
- Automatic address learning and address aging
- Case and Installation
- No external power cable installation required
- Made of metal, desktop size design
- Wall-mountable, Plug-and-Play installation
- 0 ~ 50 degrees C operating temperature
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET Technology Corp.po
Specific References
- ean13
- 4711605282260
