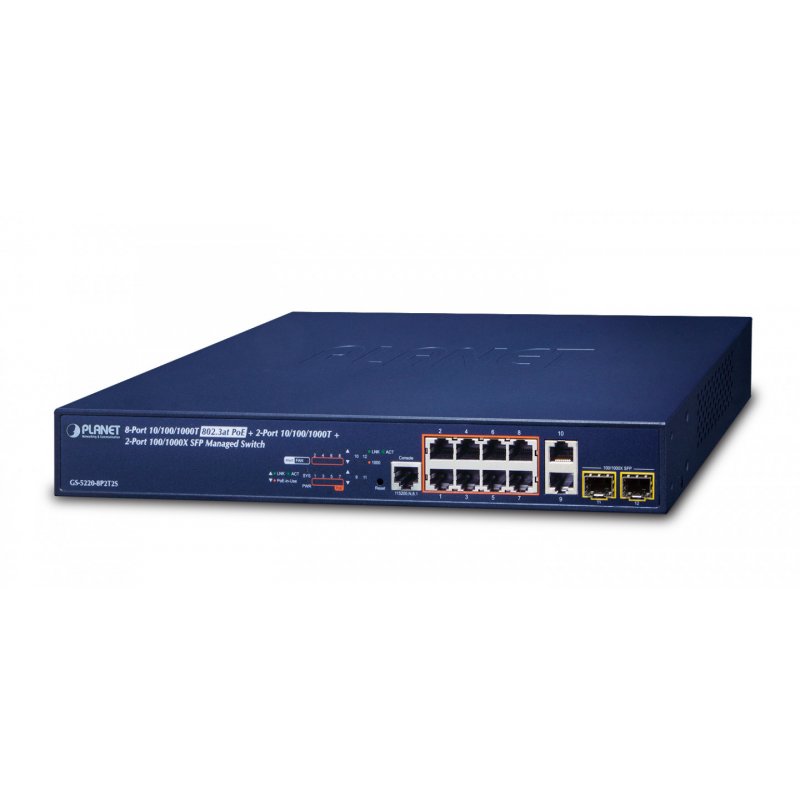

PLANET Technology Corp.po PLANET GS-5220-8P2T2S network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue

PLANET GS-5220-8P2T2S, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
GS-5220-8P2T2S
4711605281348
€550.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET GS-5220-8P2T2S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Installed SFP modules quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Physical Port
  • 10-Port 10/100/1000BASE-T RJ45 copper with 8-Port IEEE 802.3at/af Power over Ethernet Injector function
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • RJ45 console interface for basic management and setup
  • Power over Ethernet
  • Complies with IEEE 802.3at High Power over Ethernet end-span PSE
  • Complies with IEEE 802.3af Power over Ethernet end-span PSE
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE Management
  • Total PoE power budget control- Per port PoE function enable/disable- PoE Port Power feeding priority- Per PoE port power limitation- PD classification detection- PD alive check- PoE schedule- PD power recycling schedule
  • Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • Broadcast / Multicast / Unknown unicast
  • Supports VLAN- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4094 VLAN IDs- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN
  • Supports Spanning Tree Protocol
  • STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard
  • Supports Link Aggregation
  • 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 6 trunk groups, up to 8 ports per trunk group- Up to 16Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Layer 3 IP Routing Features
  • Supports maximum 32 static routes and route summarization
  • Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • IEEE 802.1p CoS- TOS/DSCP/IP Precedence of IPv4/IPv6 packets- IP TCP/UDP port number- Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing policies on the switch port
  • DSCP remarking
  • Multicast
  • Supports IGMP Snooping v1, v2 and v3
  • Supports MLD Snooping v1 and v2
  • Querier mode support
  • IGMP Snooping port filtering
  • MLD Snooping port filtering
  • Multicast VLAN Registration (MVR) support

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605281348
