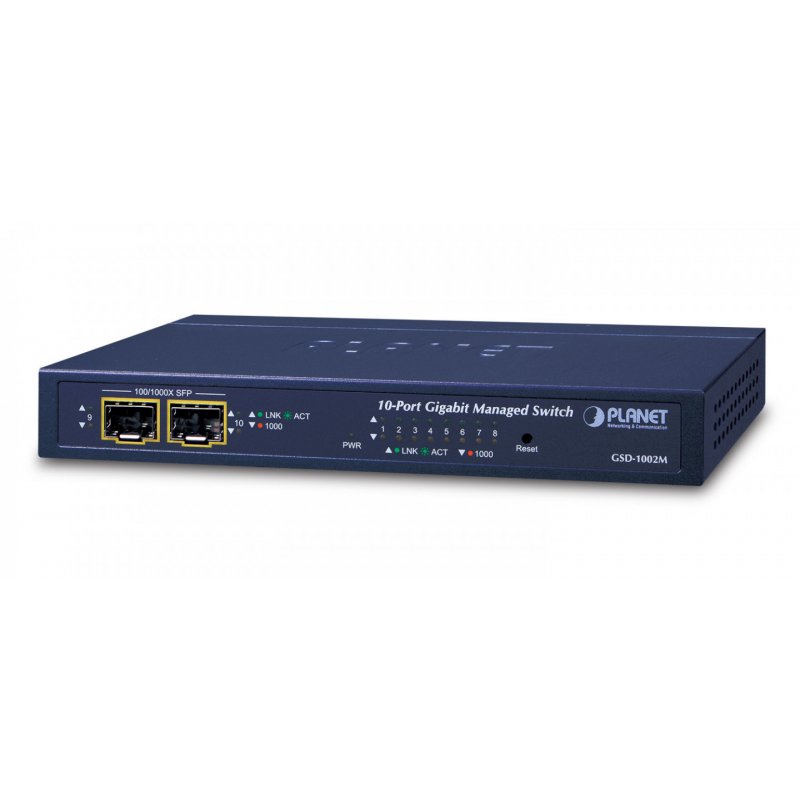

PLANET Technology Corp.po PLANET GSD-1002M network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue

PLANET GSD-1002M, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
GSD-1002M
4711605280082
€149.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET GSD-1002M. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE)
  • Physical Ports
  • 8 10/100/1000Mbps Gigabit Ethernet ports with auto-MDI/MDI-X supported
  • 1 port (Port 8) supports 802.3af/at PoE 48~56V DC in-line power
  • 2 100/1000Base-X mini-GBIC/SFP slots
  • Installation
  • Dual Power Design
  • 802.3af/at PoE In- 12V DC power adapter acceptable
  • Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Protocol VLAN- Voice VLAN- Private VLAN- Management VLAN- GVRP
  • Supports Spanning Tree Protocol
  • STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 8 trunk groups, up to 8 ports per trunk group
  • Provides Port Mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Quality of Service
  • Ingress / Egress Rate Limit per port bandwidth control
  • Storm Control support
  • Broadcast / Unknown-Unicast / Unknown-Multicast
  • Traffic classification
  • IEEE 802.1p CoS- TOS / DSCP / IP Precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Multicast
  • Supports IGMP Snooping v1, v2 and v3
  • Supports MLD Snooping v1 and v2
  • IGMP Querier mode support
  • IGMP Snooping port filtering
  • MLD Snooping port filtering
  • Security
  • Authentication
  • IEEE 802.1X Port-based network access authentication- Built-in RADIUS client to co-operate with the RADIUS servers- RADIUS / TACACS+ login user access authentication
  • Access Control List
  • IPv4 / IPv6 IP-based ACLMAC-based ACL
  • MAC Security
  • Static MAC- MAC Filtering
  • Port Security for Source MAC address entries filtering
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • DoS Attack Prevention
  • SSH / SSL
  • Management
  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
  • Web switch management- Telnet Command Line Interface- SNMP v1, v2c and v3- SSH / SSL secure access
  • User Privilege Levels Control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
  • Firmware upload/download via HTTP / TFTP- Configuration upload / download through Web interface- Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Cable Diagnostics
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  • SNMP trap for interface Link Up and Link Down notification
  • Event message logging to remote Syslog server
  • Four RMON groups (history, statistics, alarms, and events)
  • PLANET Smart Discovery Utility

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605280082
