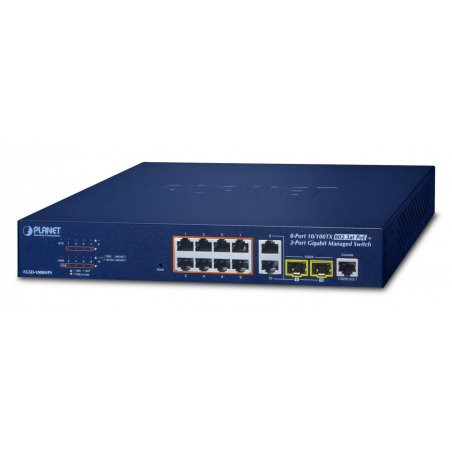

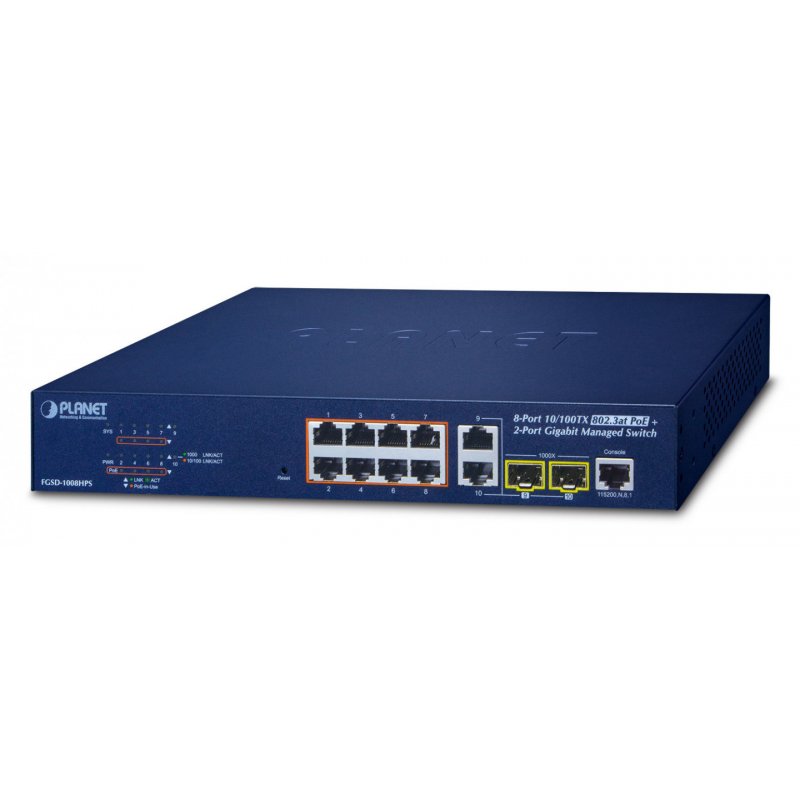

PLANET Technology Corp.po PLANET FGSD-1008HPS network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Blue

PLANET FGSD-1008HPS, Managed, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
FGSD-1008HPS
4711605281034
€199.45
VAT included

Visa
Mastercard
PayPal

Description

PLANET FGSD-1008HPS. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 5.5 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE)
  • Physical Port
  • 8 10/100BASE-TX RJ45 copper ports with IEEE 802.3at/af PoE+ injector function
  • 2 10/100/1000BASE-T Gigabit RJ45 copper ports
  • 2 100/1000BASE-X mini-GBIC/SFP slots, shared with port-9 to port-10
  • Reset button for system factory default
  • Switching
  • Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 30 watts for each PoE port
  • 120-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 250m via extend mode
  • PoE Management
  • Per port PoE function enable/disable
  • Per Port PoE operation mode selection
  • Per PoE port power budget control
  • PD classification detection and PoE consumption usage status
  • Intelligent PoE features
  • PD alive check
  • PoE port sequence
  • PoE schedule
  • Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
  • Port-based VLAN, up to 10 VLAN groups
  • IEEE 802.1Q tagged VLAN
  • Protocol VLAN
  • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • GVRP
  • Voice VLAN
  • Supports Spanning Tree Protocol
  • STP (IEEE 802.1D Spanning Tree Protocol)
  • RSTP (IEEE 802.1w Rapid Spanning Tree Protocol)
  • MSTP (IEEE 802.1s Multiple Spanning Tree Protocol)
  • STP BPDU filtering, BPDU Guard
  • Supports Link Aggregation
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • 1 LACP group, up to 2 ports per LACP group
  • Cisco ether-channel (static trunk)
  • 1 trunk group, up to 2 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop detection
  • Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Storm Control support
  • Broadcast/ Multicast /DLF (Destination Lookup Fail)/ARP/ICMP
  • Traffic classification
  • IEEE 802.1p Qos/CoS
  • TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Multicast
  • Supports IPv4 IGMP snooping v1/ v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • Security
  • Access Control List
  • IPv4/IPv6 IP-based ACL
  • MAC-based ACL
  • Port-MAC-IP Address Binding
  • Port-MAC-IP Port Setting
  • Port-MAC-IP Entry Setting
  • MAC Address Binding
  • Static MAC
  • MAC Filtering
  • DHCP snooping to filter distrusted DHCP messages
  • ARP Inspection discards ARP packets with invalid MAC address to IP address binding

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605281034
