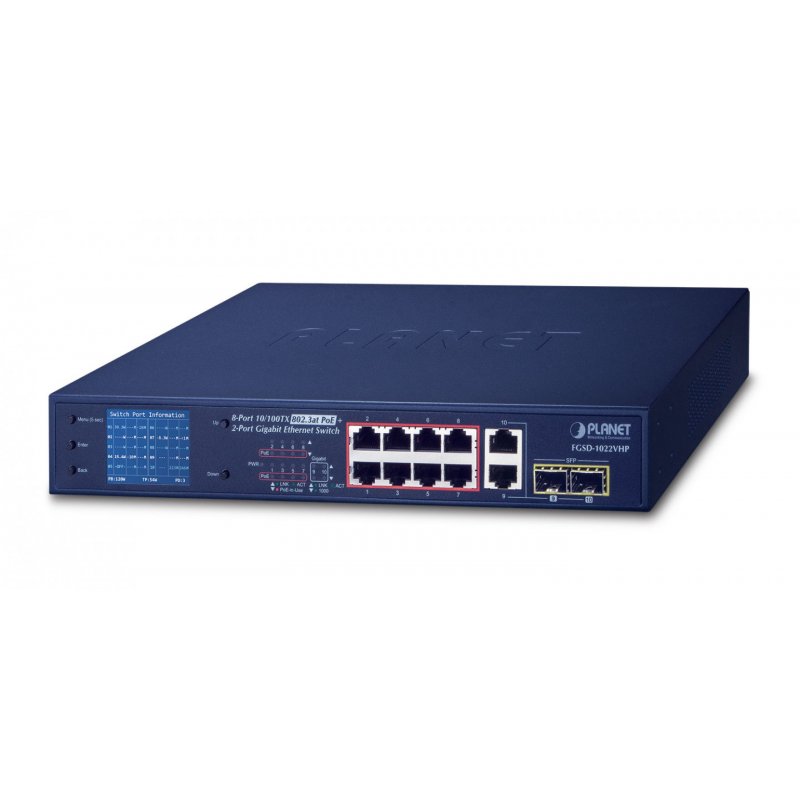

PLANET Technology Corp.po PLANET FGSD-1022VHP network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue

PLANET FGSD-1022VHP, Unmanaged, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U
FGSD-1022VHP
4711605283779
€213.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET FGSD-1022VHP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Physical Port
  • 8-port 10/100/1000BASE-T Gigabit RJ45 copper
  • 2 10/100/1000BASE-T TP interfaces and 2 1000BASE-X mini-GBIC SFP shared combo interfaces
  • Power over Ethernet
  • Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 32 watts for each PoE port
  • Each port supports 52V DC power to PoE powered device
  • 120-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode and 250m in extend mode
  • Smart LCD
  • The LCD switch features “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
  • The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Power low-voltage, power over-voltage and PSE over-temperature protection
  • Screen saver, fan control, factory default and save configuration
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE port power feeding priority
  • Per PoE port power limitation
  • PD alive check
  • Switching
  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • 9216bytes packet size
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • IEEE 802.1Q VLAN transparency
  • Automatic address learning and address aging
  • Hardware
  • 12-inch desktop size, 1U height, rack mountable
  • 2-inch color LCD with smart management functions
  • LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
  • 1 silent fan to provide stable and efficient power performance
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
  • Supports ±4KV surge immunity

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605283779
