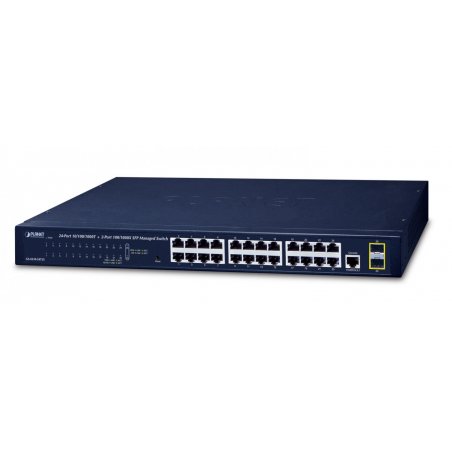

PLANET Technology Corp.po PLANET GS-4210-24T2S network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Blue

PLANET GS-4210-24T2S, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
GS-4210-24T2S
4711605280785
€299.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET GS-4210-24T2S. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
  • Physical Port
  • 24-port 10/100/1000BASE-T Gigabit RJ45 copper
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • RJ45 console interface for switch basic management and setup
  • Reset button for system factory default
  • Switching
  • Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 9K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Layer 2 Features
  • Supports VLAN- IEEE 802.1Q tagged VLAN- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Protocol VLAN- Voice VLAN- Private VLAN (Protected port)- Management VLAN- GVRP
  • Supports Spanning Tree Protocol- STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 8 trunk groups, up to 8 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Storm Control support
  • Broadcast/unknown unicast/unknown multicast
  • Traffic classification
  • IEEE 802.1p CoS- TOS/DSCP/IP precedence of IPv4/IPv6 packets- Strict priority and Weighted Round Robin (WRR) CoS policies
  • Multicast
  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • Security
  • Authentication
  • IEEE 802.1X port-based network access authentication- Built-in RADIUS client to cooperate with the RADIUS servers- DHCP Option 82- RADIUS/TACACS+ login user access authentication
  • Access Control List
  • IPv4/IPv6 IP-based ACL- IPv4/IPv6 IP-based ACE- MAC-based ACL- MAC-based ACE
  • MAC Security
  • Static MAC- MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • SSH/SSL

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605280785
