• Rupture de stock, ce produit n'est plus commercialisé

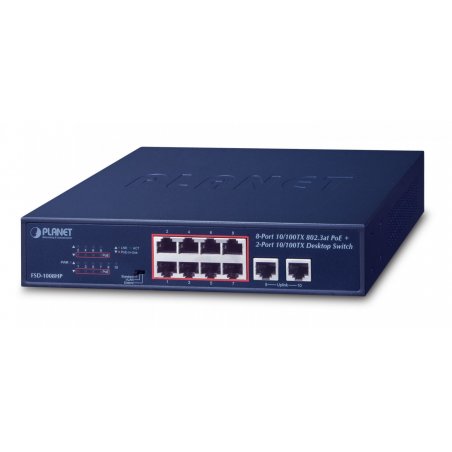

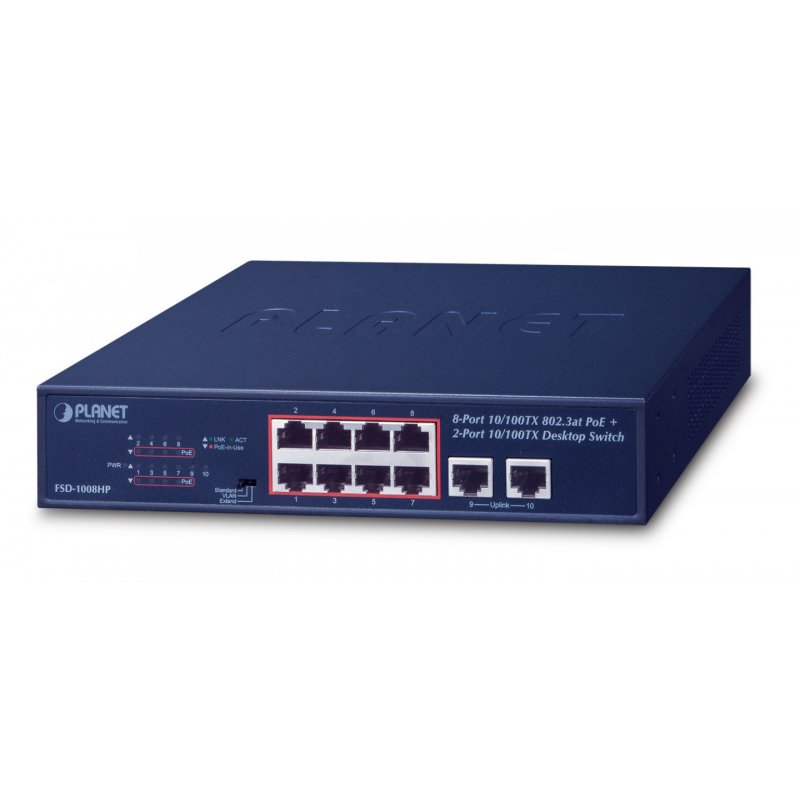

PLANET Technology Corp.po PLANET FSD-1008HP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue

PLANET FSD-1008HP, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U
FSD-1008HP
4711605283083
€78.54
VAT included

Visa
Mastercard
PayPal

Description

PLANET FSD-1008HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 8000 entries, Switching capacity: 2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Physical Port
  • 10-port 10/100BASE-TX Fast Ethernet RJ45 copper
  • 8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
  • Power over Ethernet
  • Complies with IEEE 802.3at Power+ over Ethernet end-span PSE
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30.8 watts for each PoE port
  • Each port supports 55V DC power to PoE powered device
  • 120-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode with 250m in extend mode
  • Switching
  • Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • IEEE 802.1Q VLAN transparency
  • Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
  • Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Hardware
  • 9-inch desktop size, 1U height, rack mountable
  • LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
  • Fanless design
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605283083
