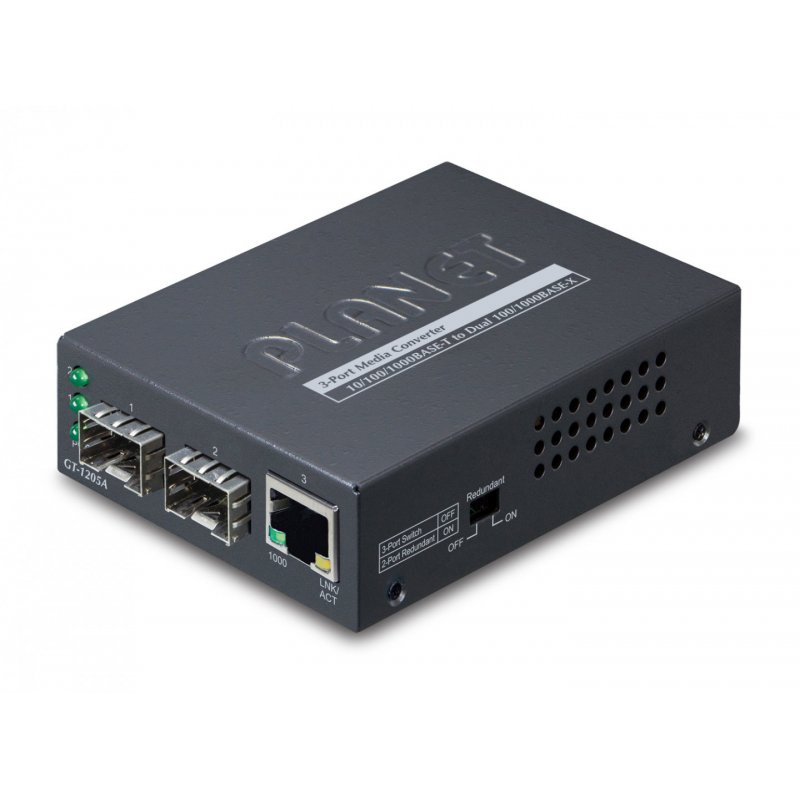

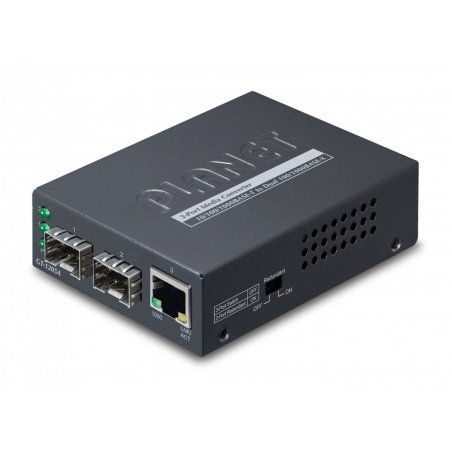

PLANET Technology Corp.po PLANET GT-1205A network media converter 1000 Mbit/s Black

PLANET GT-1205A, 1000 Mbit/s, 1000Base-T, 1000Base-X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s
GT-1205A
4711213686672
€169.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET GT-1205A. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-X. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 120000 m. Product colour: Black, Certification: FCC Class B, CE. Input voltage: 5 V, Input current: 2 A
  • Standard
  • Complies with IEEE 802.3 10BASE-T
  • Complies with IEEE 802.3u 100BASE-TX/100BASE-FX
  • Complies with IEEE 802.3ab 1000BASE-T
  • Complies with IEEE 802.3z 1000BASE-SX/LX
  • IEEE 802.3x full-duplex flow-control, back-pressure in half-duplex eliminate packets loss
  • Interface
  • Dual 100BASE-FX/1000BASE-SX/LX SFP fiber-optic slots
  • One 10/100/1000BASE-T Copper, auto MDI/MDIX function
  • Auto-negotiation for 10/100/1000BASE-T; half-duplex or full-duplex for 10Mbps and 100Mbps, full-duplex for 1000Mbps
  • Supports maximum frame size up to 10K jumbo packet size
  • IEEE 802.1Q Tag VLAN transparent, multicast pass through
  • Redundancy
  • Link status auto-detecting and redundant on dual ports with the same connector type
  • Allows only the Primary-Port or the Backup-Port to activate at a time
  • When the Primary-Port link fails occurs, the traffic swaps to Backup-Port automatically
  • Once the Primary-Port link regains, the traffic swaps from the Backup-Port to the Primary-Port
  • Hardware fiber port redundant
  • Mechanical
  • External 5V/2.5A DC power supply
  • LED indicators for easy network diagnose
  • DIP switch for 100FX or 1000X SFP module supports on dual SFP slots
  • DIP switch for 3-port operation in Gigabit switch mode or redundant mode
  • Compact in size, easy installation
  • Co-works with PLANET 10”/19” Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
  • Wall mounting and DIN-Rail installation supported

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711213686672
