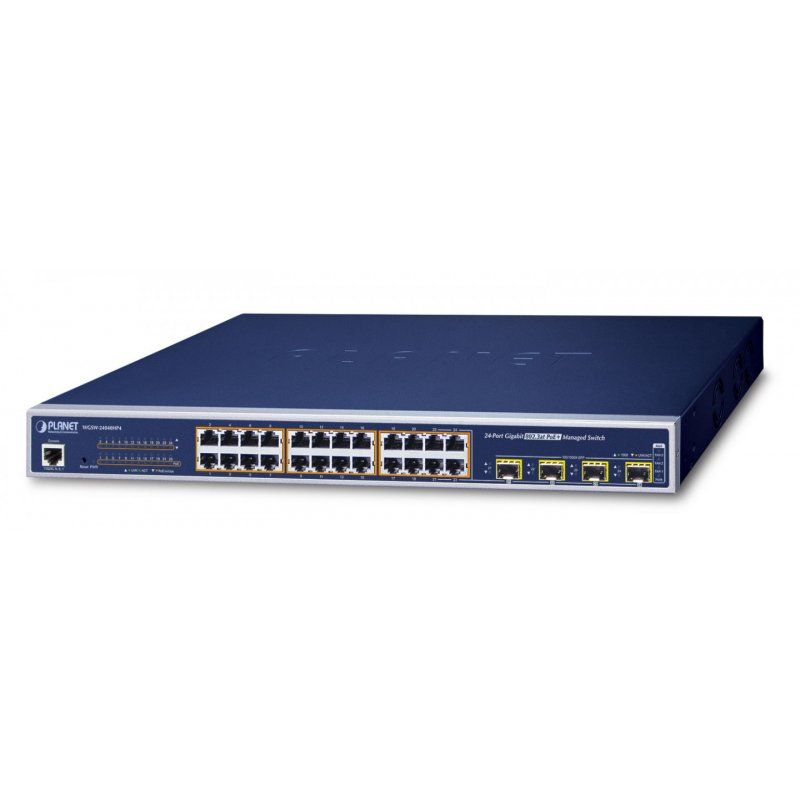

PLANET Technology Corp.po PLANET WGSW-24040HP4 network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue

PLANET WGSW-24040HP4, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
WGSW-2404HP4
4711213689475
€829.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET WGSW-24040HP4. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20, Console port: RS-232. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting
  • Physical Port
  • 24-port 10/100/1000BASE-T RJ45 copper with 802.3at PoE+ injector function
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with port-21 to port-24
  • RS232 RJ45 console interface for switch basic management and setup
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  • Up to 24 IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extended mode
  • PoE management feature
  • PoE admin-mode control
  • PoE management mode selection
  • Per port PoE function enable/disable
  • PoE port power feeding priority
  • Per PoE port power limit
  • PoE Port Status monitoring
  • PD classification detection
  • Sequence port PoE
  • PoE extension
  • Intelligent PoE features
  • Temperature threshold control
  • PoE usage threshold control
  • PoE schedule
  • PD alive check
  • LLDP PoE neighbors
  • Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • Broadcast/Multicast/Unicast
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Up to 4K VLANs groups, out of 4094 VLAN IDs
  • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Port Isolation
  • MAC-based VLAN
  • IP Subnet-based VLAN
  • Protocol-based VLAN
  • VLAN Translation
  • Voice VLAN
  • GVRP
  • Supports Spanning Tree Protocol
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree Protocol
  • IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
  • BPDU Filtering/BPDU Guard
  • Supports Link Aggregation
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Maximum 12 trunk groups, up to 4 ports per trunk group
  • Up to 8Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Provides ONVIF for co-operating with PLANET video IP surveillances
  • Layer 3 IP Routing Features
  • Supports maximum 32 static routes and route summarization

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711213689475
