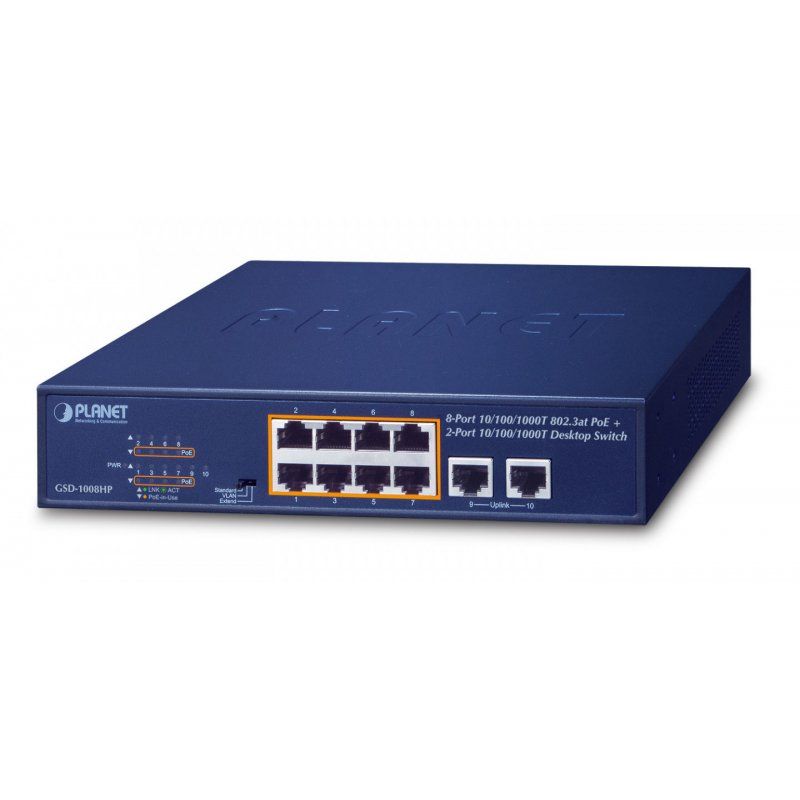

PLANET Technology Corp.po PLANET GSD-1008HP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue

PLANET GSD-1008HP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U
GSD-1008HP
4711605283090
€149.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET GSD-1008HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Physical Port
  • 10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
  • 8-port IEEE 802.3af/at PoE Injector (Port-1 to Port-8)
  • Power over Ethernet
  • Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 32 watts for each PoE port
  • Each port supports 54V DC power to PoE powered device
  • 120-watt PoE budget
  • Auto detects powered device (PD)
  • Supports PD alive check
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode with 250m in extended mode
  • Switching
  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 2K absolute MAC addresses
  • 9K jumbo frame supports all speeds (10/100/1000Mbps)
  • Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 20-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
  • Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Hardware
  • 9-inch desktop size, 1U height, rack mountable
  • LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
  • 1 silent fan to provide stable and efficient power performance
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605283090
