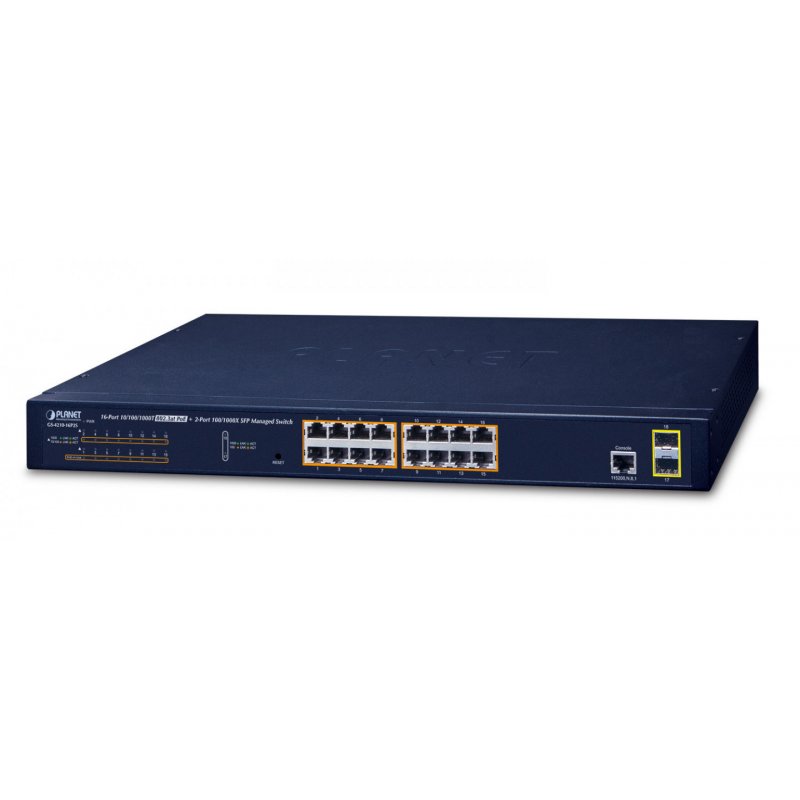

PLANET Technology Corp.po PLANET GS-4210-16P2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue

PLANET GS-4210-16P2S, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
GS-4210-16P2S
4711605282550
€432.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET GS-4210-16P2S. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Physical Port
  • 16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • 1 RJ45 console interface for switch basic management and setup
  • Reset button for system factory default and reboot
  • Switching
  • Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 9K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 16 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • 220-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  • PoE Management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE Port Power feeding priority
  • Per PoE port power limitation
  • PoE delay
  • PD classification detection
  • Intelligent PoE features
  • PoE usage threshold control
  • PD alive check
  • PoE schedule
  • Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • Protocol VLAN
  • Voice VLAN
  • Private VLAN
  • Management VLAN
  • GVRP
  • Supports Spanning Tree Protocol
  • STP (Spanning Tree Protocol)
  • RSTP (Rapid Spanning Tree Protocol)
  • MSTP (Multiple Spanning Tree Protocol)
  • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • 1 LACP group, up to 2 ports per LACP group
  • Cisco ether-channel (static trunk)
  • 1 trunk group, up to 2 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Storm Control support
  • Broadcast, Unknown Unicast, and Unknown Multicast
  • Traffic classification
  • IEEE 802.1p CoS
  • DSCP/IP Precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Multicast
  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605282550
