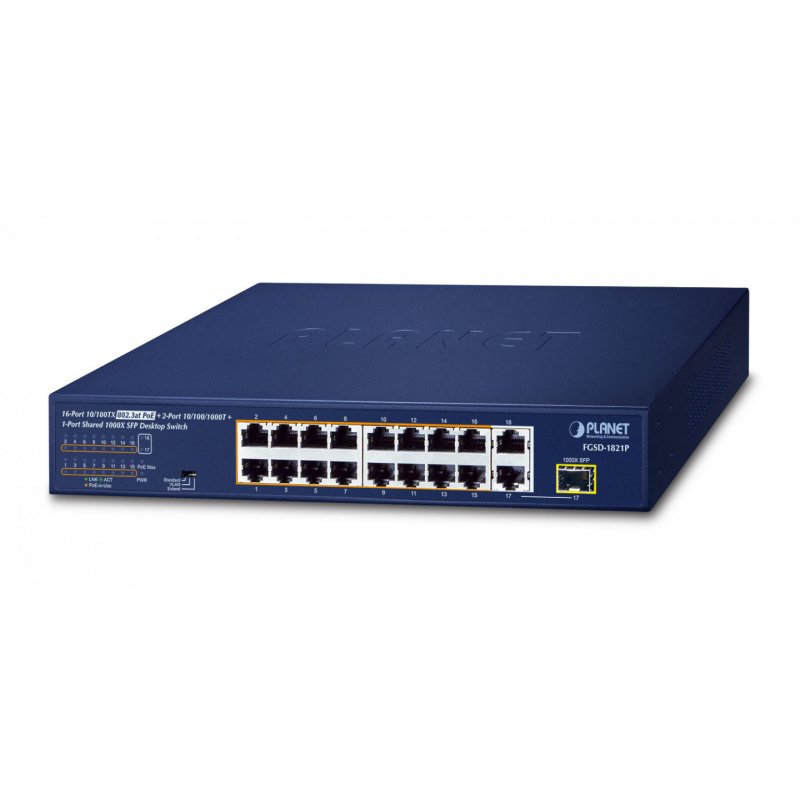

PLANET Technology Corp.po PLANET 16-Port 10/100TX 802.3at PoE Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue

PLANET 16-Port 10/100TX 802.3at PoE, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U
FGSD-1821P
4711605286060
€199.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET 16-Port 10/100TX 802.3at PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 18, Installed SFP modules quantity: 1. Full duplex. MAC address table: 16000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Physical Port
  • 16 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE+ injector function (ports 1~16)
  • 2 10/100/1000BASE-T Gigabit RJ45 ports interfaces (ports 17~18)
  • 1 1000BASE-X SFP interface (port 17)
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
  • Up to 16 ports of IEEE 802.3af/802.3at devices powered (ports 1~16)
  • Supports PoE power up to 32 watts for each PoE port, with a total PoE budget of 185W
  • Each port supports 55 DC power to PoE powered device
  • Auto detects powered device (PD)
  • Supports PD alive function
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode with 250m in extend mode
  • Switching
  • Hardware-based 10/100Mbps and 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Supports IEEE802.3x flow control in full-duplex mode and backpressure in half-duplex mode
  • Integrates address look-up engine, supporting 16K absolute MAC addresses
  • 16K jumbo frame supports 1000Mbps speed
  • Hardware-based DIP switch for Standard, VLAN or Extend mode selection
  • VLAN mode: Ports 1 to 16 cannot communicate with each other, but can communicate with the uplink ports 17 to 18 and SFP port 17
  • Extend mode: Ports 1 to 8 have data rate of 10Mbps. The farthest transmission distance is up to 250 meters and all ports can communicate with each other
  • VLAN mode is to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Automatic address learning and address aging
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
  • 11-inch desktop size, 1U height
  • LED indicators for system power, per port PoE ready and PoE activity, speed, link/act
  • 1 silent fan to provide stable and efficient power performance
  • Supports contact discharge of ±6KV DC and air distance discharge of ±8KV DC for Ethernet ESD protection
  • Supports ±6KV surge immunity

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605286060
