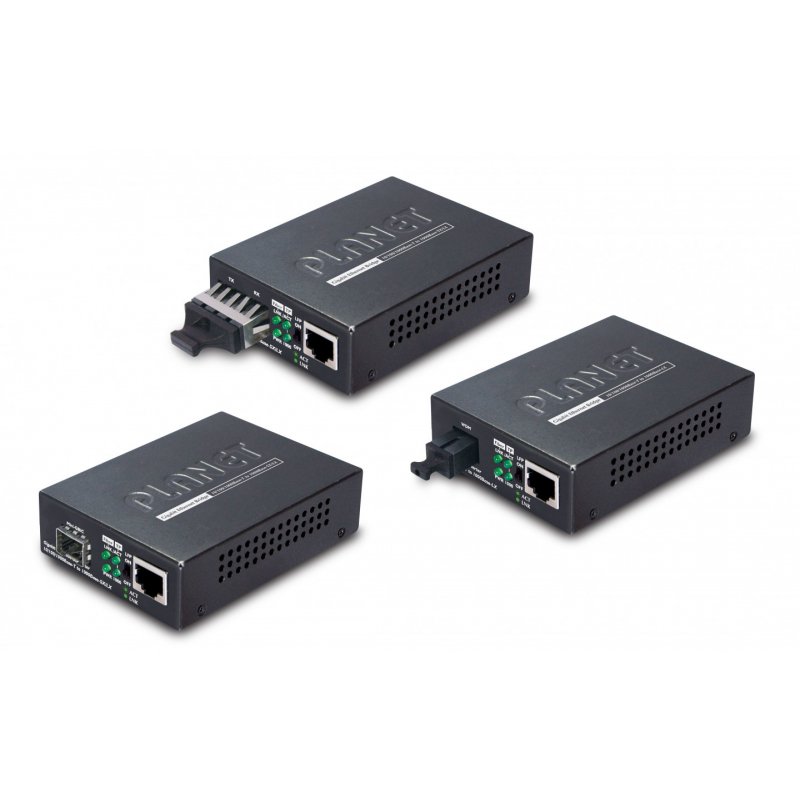

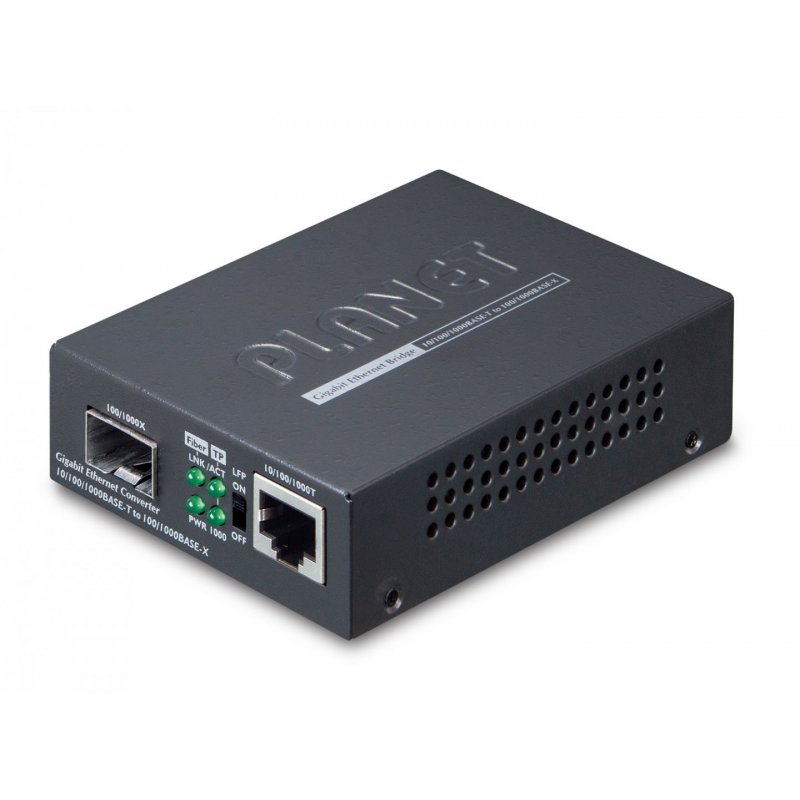

PLANET Technology Corp.po PLANET GT805A network media converter 1000 Mbit/s Multi-mode Black

PLANET GT805A, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s
GT-805A
4711213686887
€74.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET GT805A. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode, Fiber cable diameters supported (core/cladding): 9/125,50/125,62.5/125 µm. Product colour: Black, Certification: FCC Class A, CE Class A. Input voltage: 5 V, Input current: 2 A, Power consumption (typical): 5.6 W
  • Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
  • TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
  • 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m (GT-802)
  • 1000BASE-LX: 9/125μm single-mode cable provides a distance of 10km (GT-802S)
  • 1000BASE-LX: 9/125μm single-mode cable provides a distance of 40km (GT-802S40)
  • 1000BASE-LX: 9/125μm single-mode cable provides a distance of 60km (GT-802S60)
  • 1000BASE-SX/LX: 50/125μm/62.5/125μm multi-mode fiber cable or 9/125μm single-mode cable provides a distance depending on SFP module (GT-805A)
  • 1000BASE-LX WDM interface is for up to 15km (single-mode fiber 9μm/125μm) on GT-806A15/GT-806B15
  • 1000BASE-LX WDM interface is for up to 40km (single-mode fiber 9μm/125μm) on GT-806A40/GT-806B40
  • 1000BASE-LX WDM interface is for up to 60km (single-mode fiber 9μm/125μm) on GT-806A60/GT-806B60
  • 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
  • Layer 2 key features
  • IEEE 802.3x flow control for full duplex and back pressure for half duplex eliminate the loss of packets
  • Supports auto MDI/MDI-X function
  • Store-and-Forward mechanism
  • Non-blocking full wire-speed forwarding rate
  • Media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX
  • Fiber media allows
  • Multi-mode fiber using SC/LC/WDM connector
  • Single-mode fiber using SC/LC/WDM connector
  • Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
  • Wall-mountable design
  • LED indicators for easy network diagnostics
  • Provides DIP switch for LFP function (Disable/Enable) setting
  • 9K jumbo frame supported
  • Choice of fiber connectors from SC, LC and WDM; multi-mode/single-mode fiber for 1000BASE SFP interface
  • Compact in size, easy installation

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711213686887
