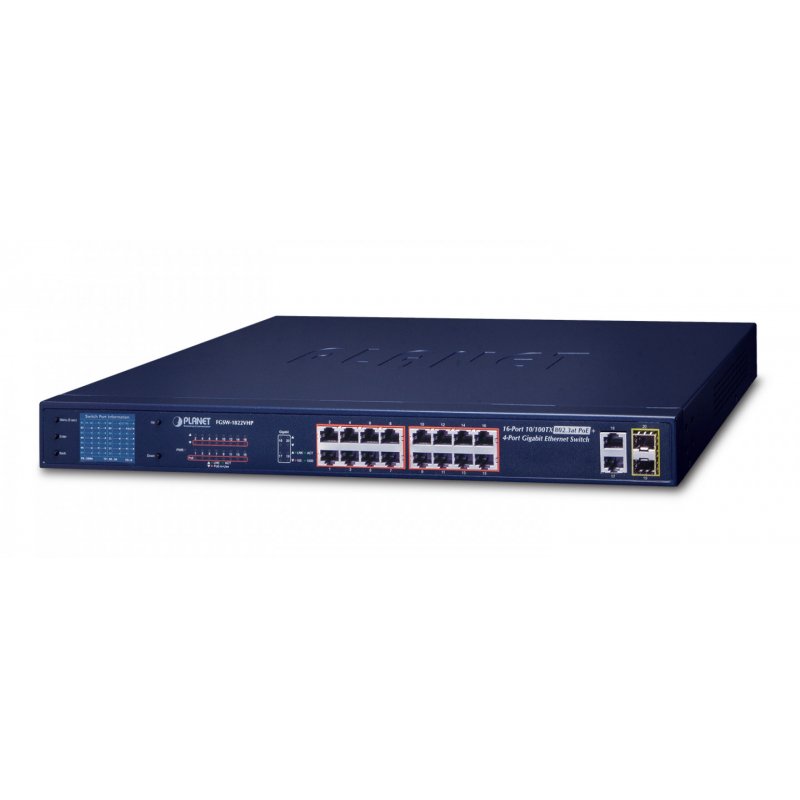

PLANET Technology Corp.po PLANET FGSW-1822VHP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue

PLANET FGSW-1822VHP, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U
FGSW-1822VHP
4711605283748
€419.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET FGSW-1822VHP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 11.2 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Physical Port
  • 16 10/100BASE-TX Fast Ethernet RJ45 copper ports
  • 2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP interfaces
  • Power over Ethernet
  • Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
  • Up to 16 ports of IEEE 802.3af/at devices powered
  • Supports PoE Power up to 32 watts for each PoE port
  • Each port supports 54V DC power to PoE powered device
  • 300-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode and 250m in extend mode
  • Smart LCD
  • The LCD switch features Standard, VLAN and Extend modes; the Extend mode features 20-watt PoE transmission distance of 250m at speed of 10Mbps and VLAN isolation
  • The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Power low-voltage, power over-voltage and PSE over-temperature protection
  • Screen saver, fan control, factory default and save configuration
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE port power feeding priority
  • Per PoE port power limitation
  • PD alive check
  • Switching
  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • 9216bytes packet size
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • IEEE 802.1Q VLAN transparency
  • Automatic address learning and address aging
  • Hardware
  • 19-inch desktop size, 1U height, rack mountable
  • 2-inch color LCD with smart management functions
  • LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
  • 3 silent fans to provide stable and efficient power performance
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
  • Supports ±6KV surge immunity

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605283748
