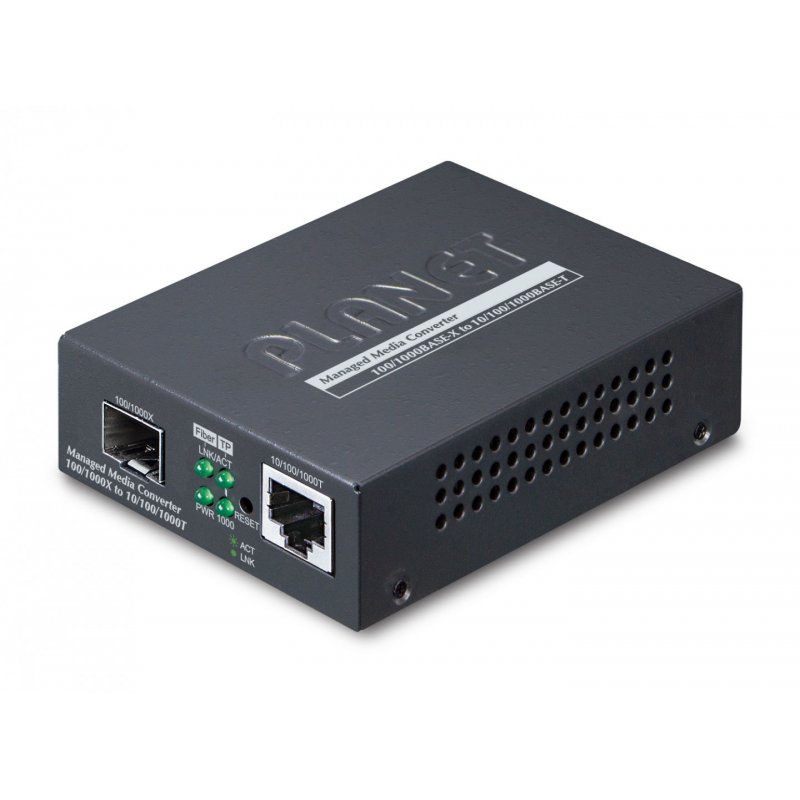

PLANET Technology Corp.po PLANET Web/SNMP Man network media converter Black

PLANET Web/SNMP Man, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE..., Gigabit Ethernet, 10,100,1000 Mbit/s, SFP, Black, Metal
GT-915A
4711605286817
€145.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET Web/SNMP Man. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE..., Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Fiber optic connector: SFP. Product colour: Black, Housing material: Metal, Certification: FCC Class A, CE Class A. Width: 94 mm, Depth: 70 mm, Height: 26 mm
  • Physical Port
  • One 1G/100/10BASE-T RJ45 interface with auto MDI/MDI-X function
  • One 1G/100BASE-X SFP interface
  • Layer 2 Features
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • VLAN transparent
  • Storm Control support
  • Broadcast/Multicast/DLF (Destination Lookup Failure)/ARP/ICMP
  • Store-and-Forward mechanism
  • Non-blocking full wire-speed forwarding rate
  • 16K jumbo frame size support
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Automatic address learning and address aging
  • Supports port status/Ethernet statistics on both TP and fiber interfaces
  • Supports Link Fault Passthrough (LFP) and Link Layer Discovery Protocol (LLDP)
  • OAM Compliant
  • TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
  • Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all converter ports
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic classification
  • IEEE 802.1p CoS
  • IP DSCP
  • IP Address
  • Management
  • IPv4 and IPv6 dual stack management
  • Management Interfaces
  • Web HTTP management
  • Telnet Command Line Interface
  • SNMP v1, v2c monitoring
  • SSHv2, TLSv1.2 and SNMP v3 secure access
  • System Maintenance
  • Firmware upload/download via HTTP
  • Reset button for system reboot or reset to factory default
  • Network Time Protocol (NTP)
  • SNMP Management
  • SNMP trap for interface link up and link down notification
  • Four RMON groups (history, statistics, alarms and events)
  • Network Diagnostic
  • SFP-DDM (Digital Diagnostic Monitor)
  • Syslog remote alarm
  • Local system Log
  • PLANET Smart Discovery Utility for deploy management
  • PLANET Remote Management
  • PLANET NMS Controller and CloudViewer for deployment management
  • Case and Installation
  • External 5V DC, 2A power supply
  • 0 to 50 degrees C operating temperature
  • Supports 6000 VDC Ethernet ESD protection
  • Wall mounting and DIN-rail installation supported
  • Works with PLANET’s 10”/19” Media Converter Chassis
  • (MC-700/MC-1500/MC-1500R/MC-1500R48)
  • Plug and Play installation

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605286817
