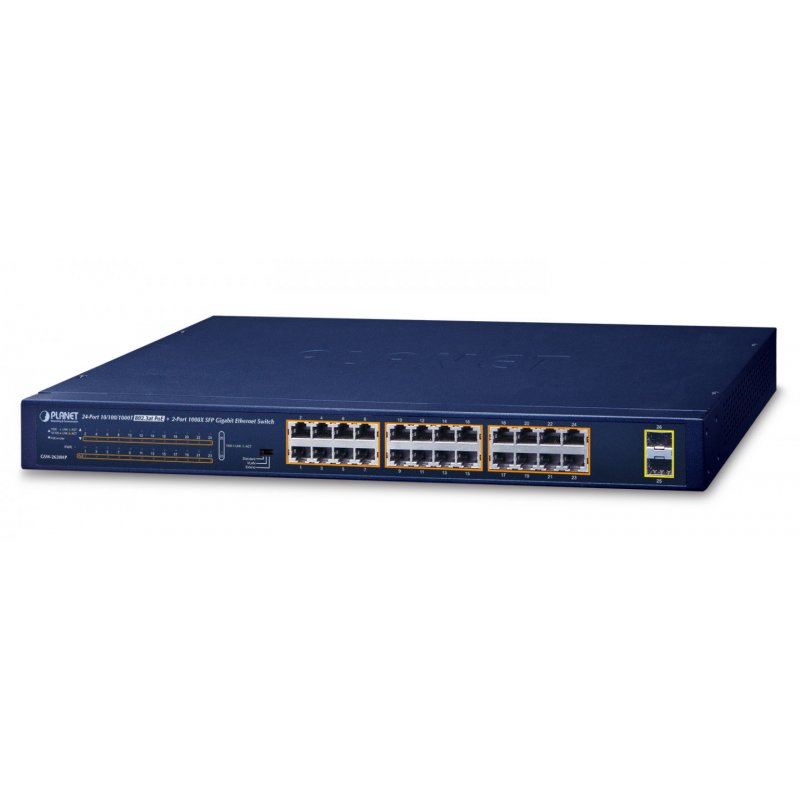

PLANET Technology Corp.po PLANET GSW-2620HP network switch Unmanaged 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Blue

PLANET GSW-2620HP, Unmanaged, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), 1U
GSW-2620HP
4711605281416
€463.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET GSW-2620HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Form factor: 1U
  • Physical Port
  • 24-port 10/100/1000BASE-T Gigabit RJ45 copper with 802.3at PoE+ injector function
  • 2 1000BASE-X mini-GBIC/SFP slots
  • Power over Ethernet
  • Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
  • Up to 24 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30.8 watts for each PoE port
  • Each port supports 52V DC power to PoE powered device
  • 240-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • Switching
  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • 9K jumbo frame supports all speeds (10/100/1000Mbps)
  • IEEE 802.1Q VLAN transparency
  • Hardware DIP switch for Standard, VLAN and Extend mode selection
  • VLAN mode: Ports 1 to 22 cannot communicate with each other, but can communicate with the uplink ports 23 to 24 and SFP ports 25 to 26
  • Extend mode: Ports1 to 8 have data rate of 10Mbps. The farthest transmission distance up to 250 meters and all ports can communicate with each other
  • The DIP switch can isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Automatic address learning and address aging
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
  • 19-inch desktop size, 1U height
  • LED indicators for PoE ready and PoE activity
  • Ethernet Link Energy-saving technology
  • Link down power savings
  • Intelligent use of power based on cable length

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605281416
