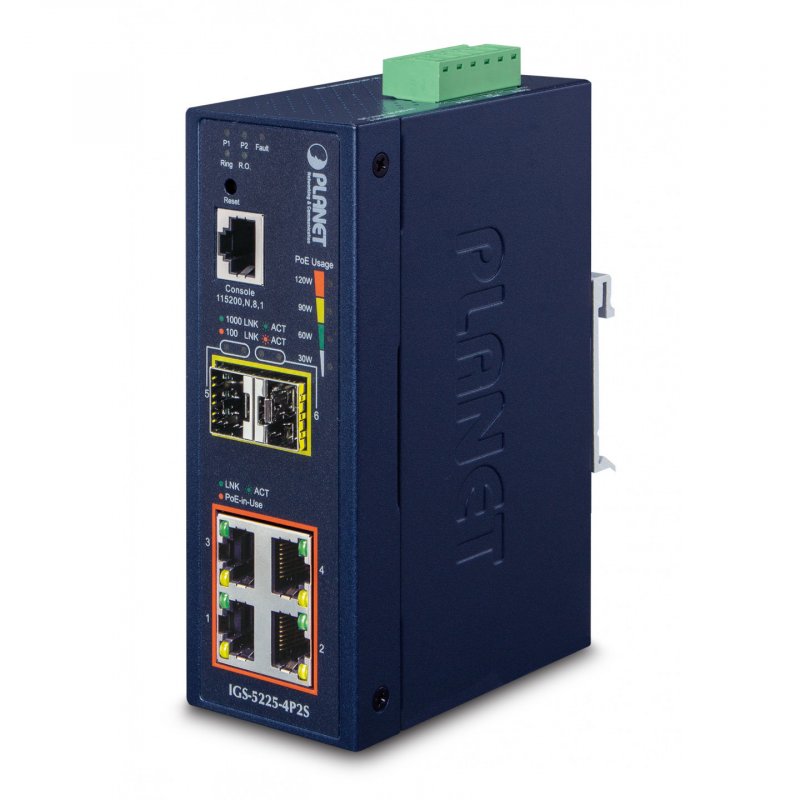

PLANET Technology Corp.po PLANET IGS-5225-4P2S network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue

PLANET IGS-5225-4P2S, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
IGS-5225-4P2S
4711605283892
€439.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IGS-5225-4P2S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... DC input voltage: 48 - 56 V. Power connector: Terminal block (3-pin). Power over Ethernet (PoE). Wall mountable
  • Physical Port
  • 4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
  • 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
  • One RJ45 console interface for basic management and setup
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  • Up to 4 IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • PoE management features
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE admin-mode control
  • PoE port power feeding priority
  • Per PoE port power limit
  • PD classification detection
  • Intelligent PoE features
  • Temperature threshold control
  • PoE usage threshold control
  • PD alive check
  • PoE schedule
  • Industrial Protocol
  • Modbus TCP for real-time monitoring in a SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol)
  • Industrial Case and Installation
  • IP40 metal case
  • DIN-rail and wall-mount designs
  • 48~56V DC, redundant power with polarity reverse protect function
  • Supports 6000V DC Ethernet ESD protection
  • Supports -40 to 75 degrees C operating temperature
  • Layer 2 Features
  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • Broadcast/Multicast/Unicast
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Up to 255 VLANs groups, out of 4094 VLAN IDs
  • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Protocol-based VLAN
  • MAC-based VLAN
  • Voice VLAN
  • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  • BPDU Guard
  • Supports Link Aggregation
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Maximum 2 trunk groups with 2 ports per trunk group
  • Up to 4Gbps bandwidth (duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)
  • Layer 3 IP Routing Features
  • Supports maximum 32 static routes and route summarization
  • Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • IEEE 802.1p CoS
  • IP TOS/DSCP/IP precedence
  • IP TCP/UDP port number
  • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic policing on the switch port
  • DSCP remarking

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605283892
