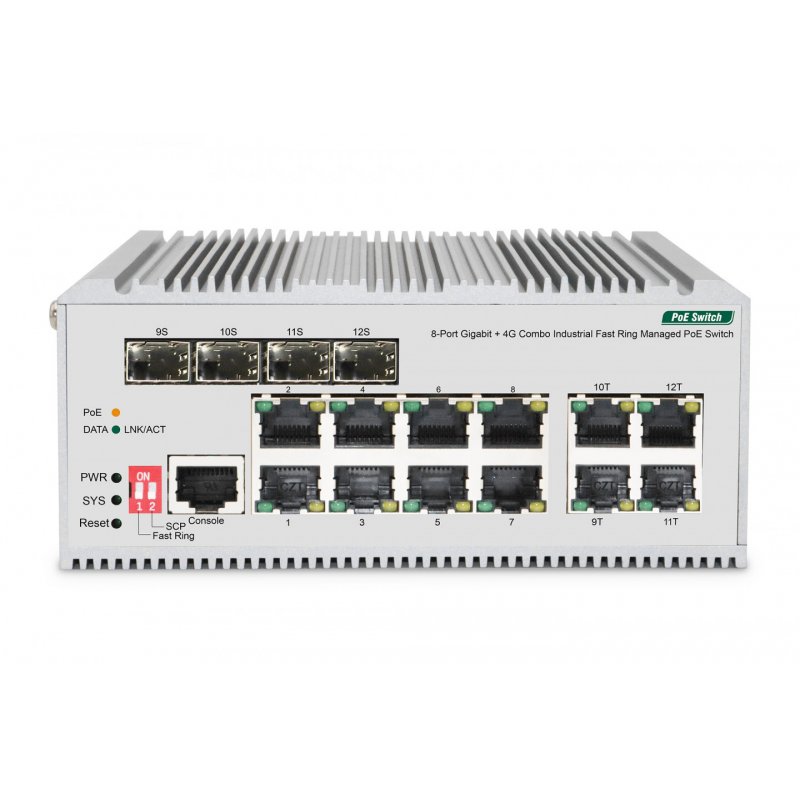

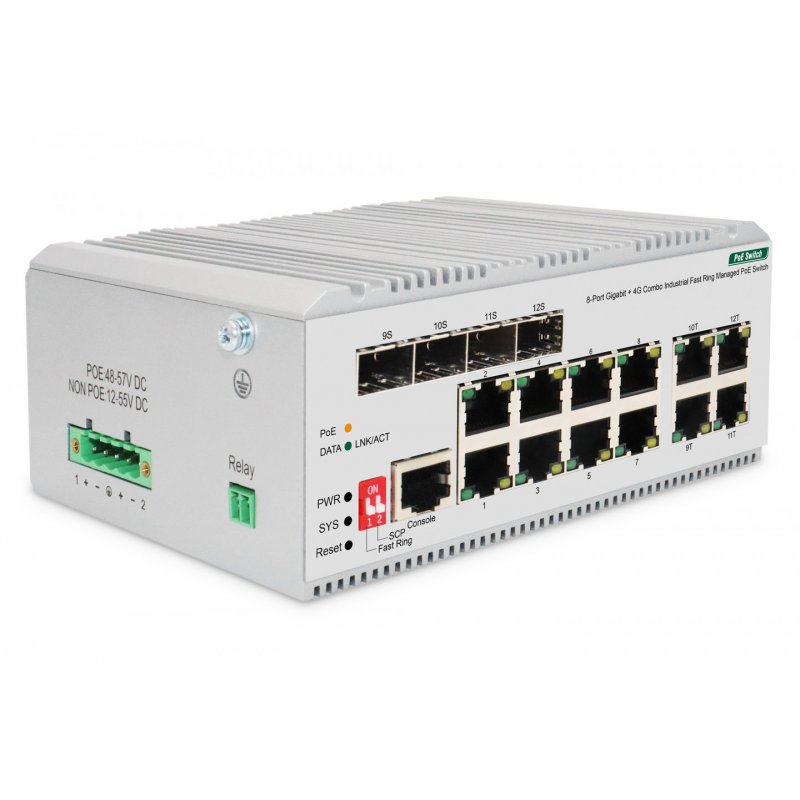

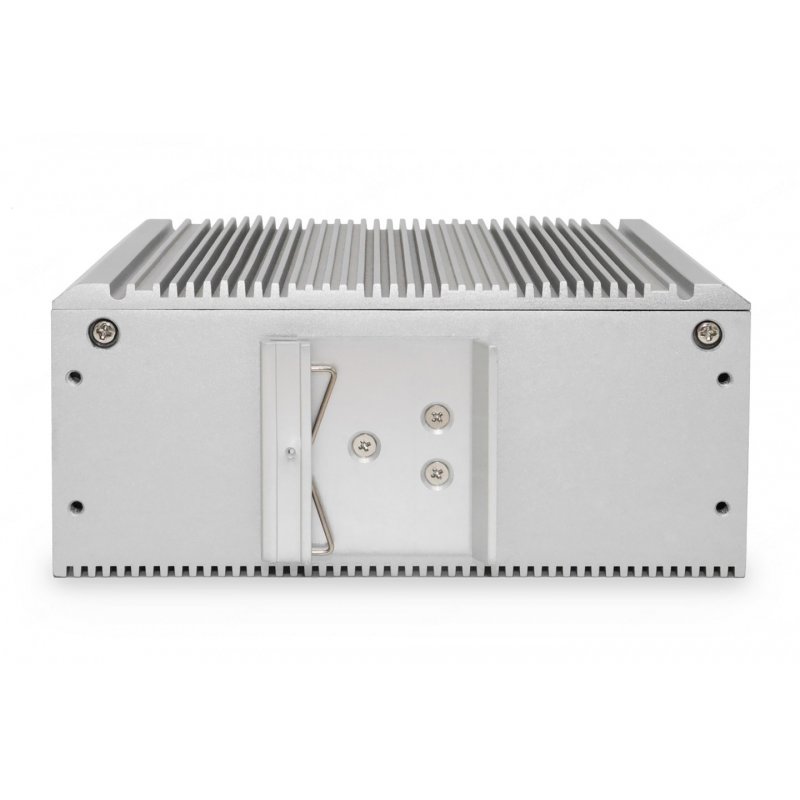

Digitus Digitus 8 port Gigabit Ethernet network PoE switch, industrial, L2 managed, 4 SFP uplink

Digitus 8 port Gigabit Ethernet network PoE switch, industrial, L2 managed, 4 SFP uplink, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex
DN-651139
4016032489238
€453.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 8 port Gigabit Ethernet network PoE switch, industrial, L2 managed, 4 SFP uplink. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... DC input voltage: 48 - 57 V
  • Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1X,IEEE 802.1q,IEEE 802.1p,IEEE 802.1d,IEEE 802.1w,IEEE 802.3ad, IEEE802.3af,IEEE802.3at
  • Interface: 8*10/100/1000Mbps RJ45 Ports, 4*10/100/1000Mbps Combo, 1 Console Port
  • Indicator: PWR, LNK/ACT, PoE, SYS
  • Network Media: 10BASE-T: UTP category 3,4,5 cable(≤100m), 100BASE-TX: UTP category 5, 5e cable(≤100m), 1000BASE-T: UTP category 5e, 5 cable(≤100m), 1000BASE-X: MMF, SMF
  • MAC Address Table: 8K, Auto-learning, Auto-update
  • Jumbo Frame: 9216Byte
  • Packet Buffer: 4.1M bit
  • Transfer Mode: Store-and-forward
  • Packet Forward Speed: 17.86Mpps
  • Switching Capacity: 24Gbps
  • Dimensions(L*W*H): 145*109*62mm
  • Fan Quantity: Fanless
  • Power Supply: 200W
  • PoE Power Budget: 185W
  • PoE Port: Port1~8
  • PoE Power On RJ45: Mode A 1/2(-),3/6( )
  • PoE Power Output: 30W(MAX)
  • Green Energy Saving: IEEE 802.3az
  • Input Power Supply: DC:48-57V
  • Operating Temperature: -40°C ~ 75 °C
  • Storage Temperature: -40°C ~ 80 °C
  • Operating Humidity: 5% ~ 95% non-condensing
  • Storage Humidity: 0% ~ 95% non-condensing
  • Surge Protection: Differential mode ±2KV, Common mode ±6KV
  • MTBF: >100000 hours
  • Electrostatic Standard: Contact ±6KV , Air ±8KV
  • Software Specification: spanning Tree, IEEE 802.1D -Spanning Tree, IEEE 802.1w -Rapid Spanning Tree, IEEE 802.1s -Multiple Spanning Tree, BPDU Guard, STP Root Guard, Loop Detection
  • VLAN: Management: VLAN, Private VLAN, Voice VLAN, Surveillance-VLAN, Q-in-Q (Double Tag), 802.1v Protocol VLAN, MAC-Based VLAN, Port IEEE 802.3ad witch LACP(Dynamic), Static Trunk EEE, Jumbo Frame, Error-Disable, IGMP Snooping: IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, MVR, QoS Features, Hardware Queues, Class Of Service, Port Based, 802.1p,CoS, DSCP, IP Precedence, TCP/UDP (IPv4/IPv6), Rate Limiting Ingress Egress, Priority Queue Scheduling, WRR, Strict Priority, DSCP & CS, IPv4 QoS (QCEs)
  • IPv6 QoS (QCEs), Security, Port Security, Port Isolation, IEEE802.1x AAA, ACLs
  • L2 /L3/L4, IPv6 Support, Management Access List, Management ACL/Management ACE, IP Source Guard (IP-MAC-Port-VALN Binding)
  • IP Source Guard (IP-MAC-Port Binding), Dynamic ARP Inspection, Storm Control, RADIUS/TACACS , RADIUS Authentication (RFC2138), DDoS Prevention, HTTPs and SSL (Secured Web), SSH v1.5/v2.0 (Secured Telnet Session)
  • DHCP Snooping, DHCP Relay, Management, SNMP (v1, v2c, v3), RMON ( 1,2,3 & 9 groups), Software Upgrade, Configuration Export/Import
  • Event/Error Log: Syslog, Management Access Filtering, Console, SNMP, HTTP/HTTPS, Telnet, Port Mirroring, LLDP (IEEE802.1AB), LLDP-MED, UDLD, DNS Client, Traceroute, Ping, Cable Test, DDMI, NTP/ SNTP (RFC2030)
  • IPv6 Support: Dual IPv6/IPv4 stack, IPv6 Web/SSL, IPv6 SNTP (Simple Network Time Protocol), IPv6 Telnet / SSH, IPv6 Ping/Trace route, IPv6 TFTP, IPv6 RADIUS/TACACS , IPv6 SNMP,
  • PoE Management: Port Config, Alive Checking for PD

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

ean13
4016032489238

Comments

No customer reviews for the moment.
