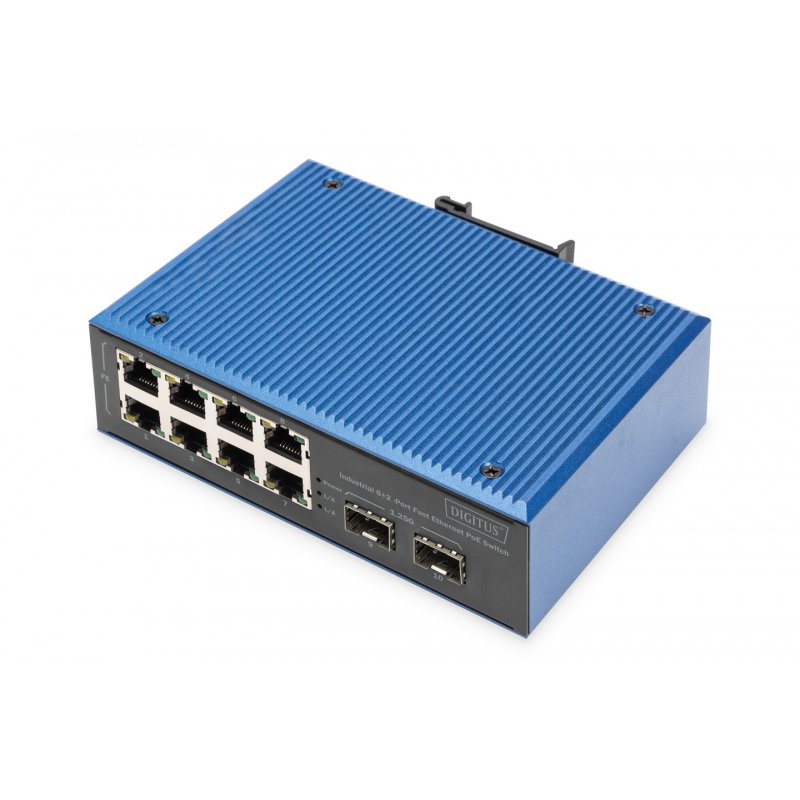

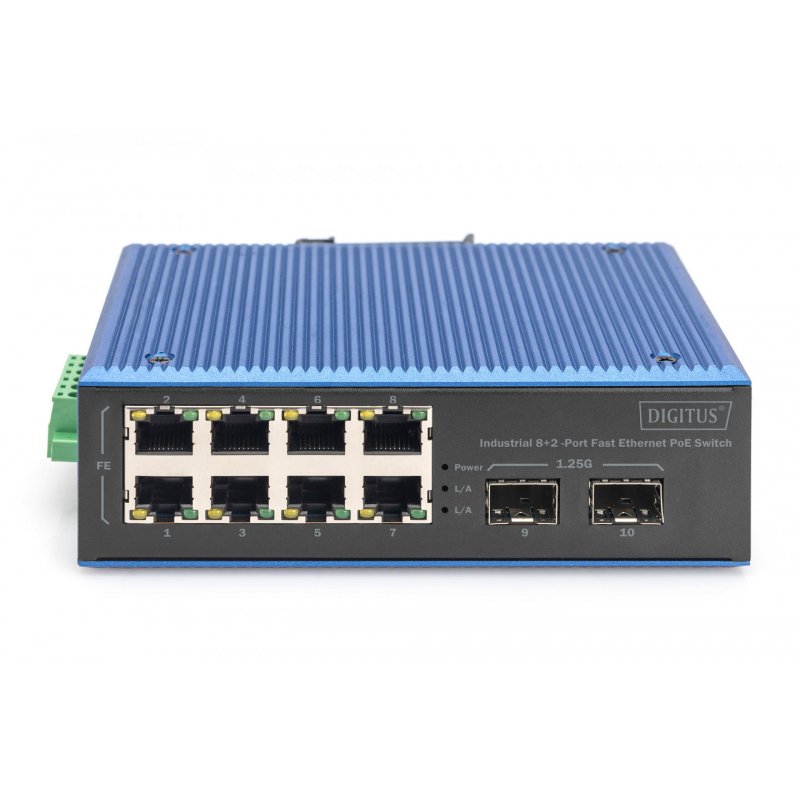

Digitus Digitus Industrial 8 2 -Port Fast Ethernet PoE Switch
Digitus Industrial 8 2 -Port Fast Ethernet PoE Switch, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
DN-651147
4016032490272
€162.90
VAT included
Description
Digitus Industrial 8 2 -Port Fast Ethernet PoE Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
- Supports IEEE802.3x flow control, and backpressure
- Supports store-and-forward technology for optimised data transmission
- Automatic speed and half/full duplex detection/setting
- 8 port PoE with up to 30 W
- Bandwidth: 5.6 Gbps
- Packet buffer size: 1.2 Mbit
- Packet forwarding size: 4.2 Mbps
- MAC address table size: 2K
- Jumbo frame rate: 9000 byte
- ESD protection: 6 kV (DC)
- EFT protection: 6 kV (DC)
- Metal housing, IP40
- 4 kV lightning and surge protection

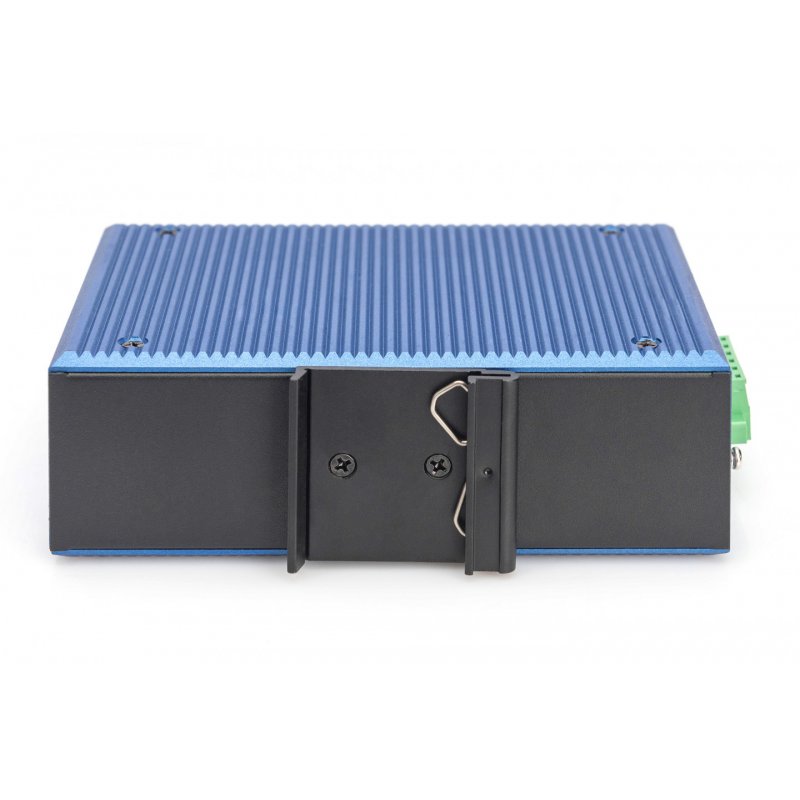

- Suitable for mounting on DIN rail (top-hat rail)

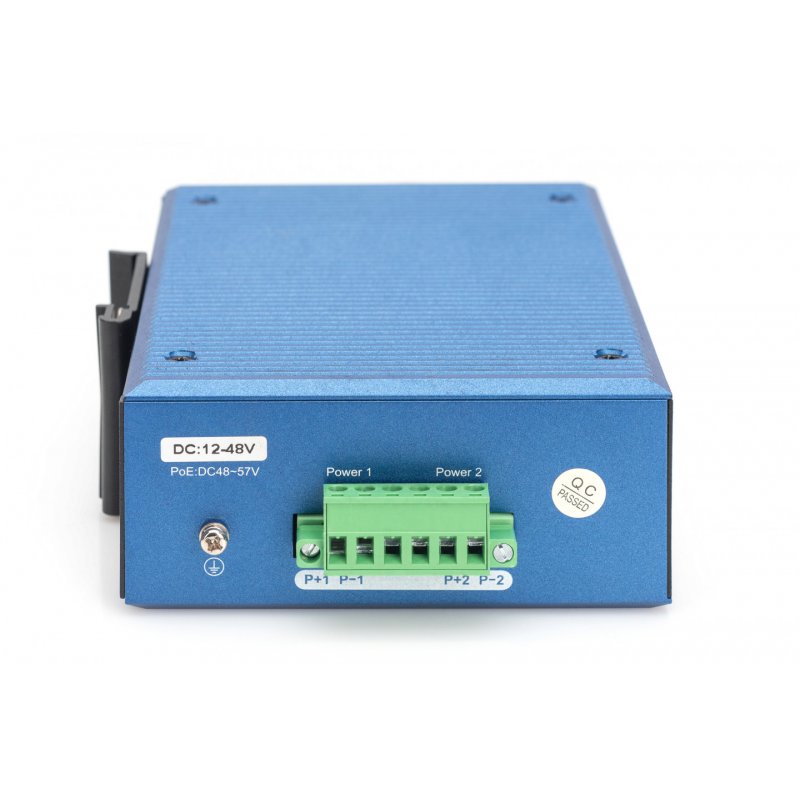

- Redundant power supply with reverse polarity protection function
- Power supply: 48 to 57 V
- Power consumption: < 8 W
- V-LAN: no
- Removable terminal connection
- Protection class: IP40
- Dimensions: 143.7 x 104 x 47.7 mm
- Weight: 0.7 kg
- Operating temperature: -40 to 80 ° C
- Storage temperature: -40 to 80 ° C
- Humidity: 5% to 95% (non-condensing)
- MTBF: 300,000 mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
Specific References
- ean13
- 4016032490272
