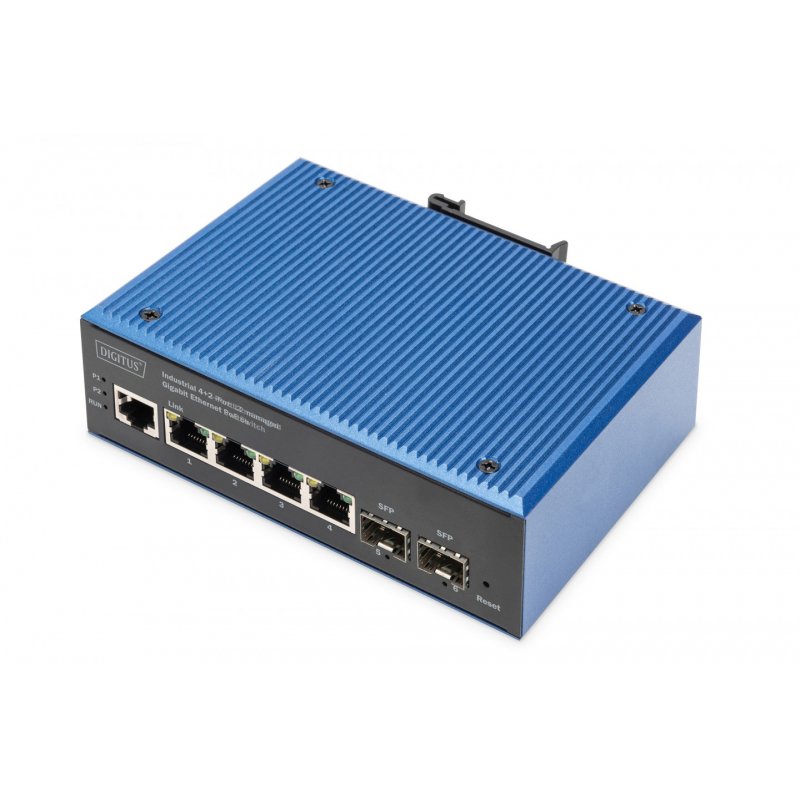

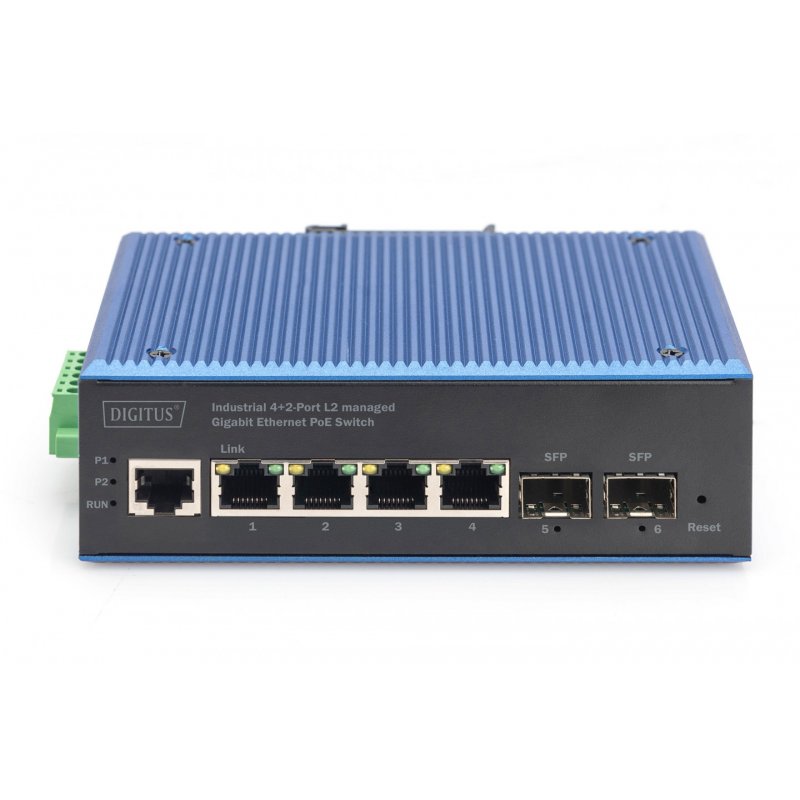

Digitus Digitus Industrial 4 2-Port L2 managed Gigabit Ethernet PoE Switch

Digitus Industrial 4 2-Port L2 managed Gigabit Ethernet PoE Switch, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
DN-651155
4016032490197
€269.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus Industrial 4 2-Port L2 managed Gigabit Ethernet PoE Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Installed SFP modules quantity: 2. Full duplex. MAC address table: 4000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
  • Supports IEEE802.3x flow control, and backpressure
  • Supports store-and-forward technology for optimized data transmission
  • Automatic speed and half/full duplex detection/adjustment
  • IEEE802.3af, IEEE802.3at
  • Bandwidth: 20 Gbps
  • Packet buffer size: 4.1 Mbit
  • Packet forwarding size: 15 Mbps
  • Size of the MAC address table: 4 K
  • Jumboframerate: 10240 bytes
  • ESD protection: 6 kV
  • EFT protection: 6 kV
  • Metal housing, IP40
  • 4 kV lightning and overvoltage protection

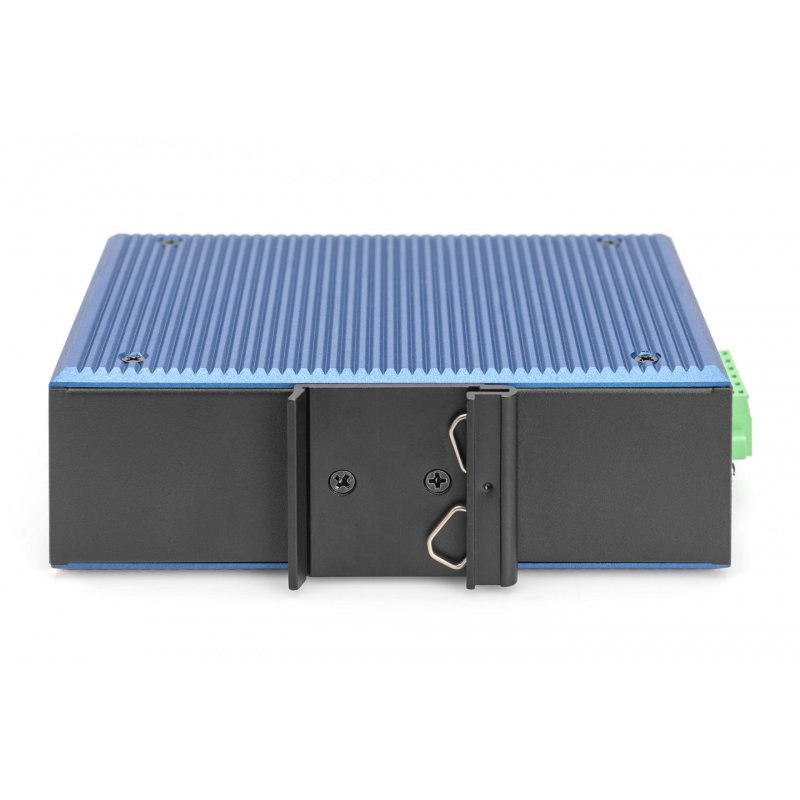

  • Suitable for DIN rail mounting (top hat rail)

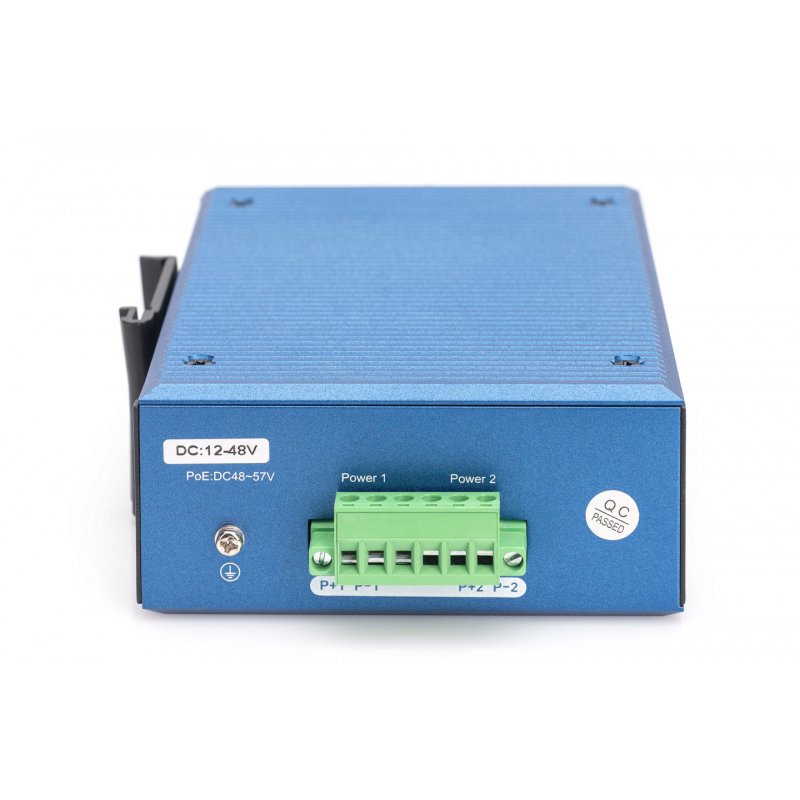

  • Redundant power supply with reverse polarity protection function
  • Power supply: 48 to 57 V (DC)
  • Power consumption: <5 W
  • Removable terminal connection
  • Protection class: IP40
  • Dimensions: 143.7 x 104 x 47.7 mm
  • Weight: 0.7 kg
  • Operating temperature: -40 to 80 ° C
  • Storage temperature: -40 to 80 ° C
  • Humidity: 5% to 95% (non-condensing)
  • MTBF: 300,000
  • Port features: IEEE 802.3x flow control, interface counter, storm control, link aggregation, static aggregation, dynamic aggregation, LACP
  • Supports up to 8 aggregation groups, each with up to 8 ports
  • Support for source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy
  • MAC table management,port forwarding,IVL forwarding, static MAC address, MAC address binding support, MAC address filtering support, port mirroring, port based mirroring
  • Spanning Tree: IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ERPS (G.8032), single ring, sub-ring, multi-ring, load balancing,
  • recovery time < 50 ms
  • QINQ: VLAN-based QinQ, GVRP support
  • LLDP: LLDP, LLDP-MED,
  • VLAN: 4094 VLANs, port-based VLAN, GVRP, protocol VLAN, MAC-based VLAN, IP subnet-based VLAN, voice VLAN.
  • Static entries: Port isolation support
  • IGMP: IGMP snooping V1, IGMP snooping V2, IGMP snooping V3, source port inspection, IGMP Fast Leave, IGMP filter,
  • MLD snooping: MLD snooping V1, MLD snooping V2, source port checking, MLD Fast Leave, MLD filtering
  • ACL: ACL (IP Standard ACL), IPv4/IPv6, Extended MAC ACL, Extended IP ACL, Matching L2, L3 and L4 fields, Logging, Forwarding, Mirroing, Speed Limiting
  • QoS: QoS class, re-evaluation, SP, WRR queue scheduling, ingress port-based rate limiting, ingress priority-based rate limiting, egress port-based rate limiting, egress queue-based rate limiting, policy-based QoS, storm control, 8 queues per port
  • Dot1x: port access control, user access control, MAC address access control
  • Various other L2 features

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

ean13
4016032490197
