Digitus Digitus Industrial 8 4 10G Uplink Port L3 managed Gigabit Ethernet Switch

Digitus Industrial 8 4 10G Uplink Port L3 managed Gigabit Ethernet Switch, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex
DN-651160
4016032490241
€491.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus Industrial 8 4 10G Uplink Port L3 managed Gigabit Ethernet Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 4. Full duplex. MAC address table: 32000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3x. DC input voltage: 12 - 48 V
  • Supports IEEE802.3x flow control, and backpressure
  • Supports store-and-forward technology for optimized data transmission
  • Automatic speed and half/full duplex detection/adjustment
  • 1,2 Tbps
  • 32 Mbps
  • 32 K
  • 10240 bytes
  • 8 kV
  • Metal housing, IP40
  • 4 kV lightning and overvoltage protection

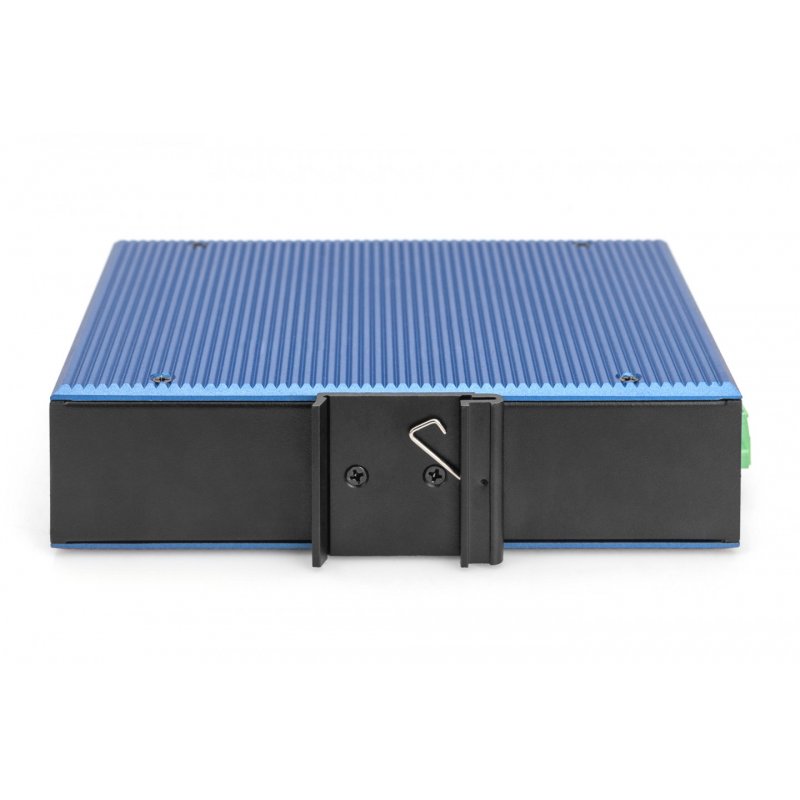

  • Suitable for DIN rail mounting (top hat rail)
  • Redundant power supply with reverse polarity protection function
  • Power supply: 12 to 48 V (DC)
  • Power consumption: < 18 W
  • Removable terminal connection
  • Protection class: IP40
  • Dimensions: 175,6 x 135 x 45,5 mm
  • Weight: 0.8 kg
  • Operating temperature: -40 to 80 ° C
  • Storage temperature: -40 to 80 ° C
  • Humidity: 5% to 95% (non-condensing)
  • MTBF: 300,000
  • Port features: IEEE 802.3x flow control, interface counter, storm control, link aggregation, static aggregation, dynamic aggregation, LACP
  • Data control: support 802.3X full-duplex flow control, support network storm suppression
  • Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)
  • Multicast management: support IGMP Snooping V1/V2/V3
  • Redundancy backup: supports the virtual route redundancy protocol VRRP
  • VLAN: Support IEEE 802.1Q VLAN, effectively isolate the broadcast domain
  • Link aggregation: support link static/dynamic aggregation, providing perfect bandwidth utilization
  • QOS: Support COS\DSCP, 4 queues, support WRR\SP scheduling mode
  • System Information: Global Information, Statistics, Log,
  • Port Management: Port Config, Port Isolate, Port Mirror, Port Limit, Storm Control, EEE(Enery-Efficient-Ethernet)
  • Basic Layer 2 Management: MAC Table, VLAN, GVRP, Link aggregation, MSTP Configration, ERPS, Loop Protect, PTP, DHCP-snooping, 802.1X
  • Layer 3 Config: Interface Config, Route Config, ARP, ND Config, DHCP Server, DHCP Relay, RIP, OSPF, RIPng, OSPFv3,
  • Multicast Management: IGMP Snooping, MLD Snooping, IP Multicast, IGMP
  • Advance Setup: QOS, ACL, SNMP, RMON, LLDP, NTP, Secure
  • System Management: User Config, Network, Service Config, Configration management, Firmware Upgrade, Diagnostic, Restart
  • Various other L2/ L3 features

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

ean13
4016032490241
