Digitus Digitus 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter

Digitus 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter, 1000 Mbit/s, 10Base-T, 100Base-TX, 100Base-T, 1000Base-T, 1000Base-TX, 1000Base-FX, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,1000,100 Mbit/s
DN-652103-1
4016032488200
€79.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 10/100/1000 Base-TX to 1000 Base-FX Industrial Media Converter. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 100Base-T, 1000Base-T, 1000Base-TX, Converter output interface: 1000Base-FX. Fiber optic connector: FX, Connectivity technology: Wired. Maximum transfer distance: 80000 m, Fiber mode structure: Multi-mode, Single-mode, Buffer size: 1200 KB. LED indicators: Link, Power, Product colour: Black, Blue, Housing material: Aluminium. Input voltage: 12 - 48 V, Power consumption (typical): 3 W
  • The use of high quality photoelectric integration module to provide good optical and electrical characteristics
  • Ensure reliable data transmission and long working life
  • Support full duplex or half duplex mode, with automatic negotiation capability
  • Network port support automatic cross identification
  • Internal storage and forwarding mechanism, support a variety of protocols
  • In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
  • Working power supply: DC 12-48V to provide reverse protection
  • Interface: 1-port 10/100/1000 Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, 1-port 1000 Base-Fx interface SC / SFP connector, Multi-Mode up to 2km, Single-Mode up to 20km/40km/60km/80km
  • 10/100/1000 Base-TX Port: 1 port RJ-45 auto-MDI / MDI-X
  • 1000 Base-FX Port: 1 SFP Slot
  • Fiber Port Type: Vary on module
  • Optical Frequency: Vary on SFP module
  • Performance Specification: Bandwidth: 14 Gbps, Packet Buffer Memory:1.2 Mbit, Packet Forwarding Rate:10.5 Mpps, MAC Address Table: 2K

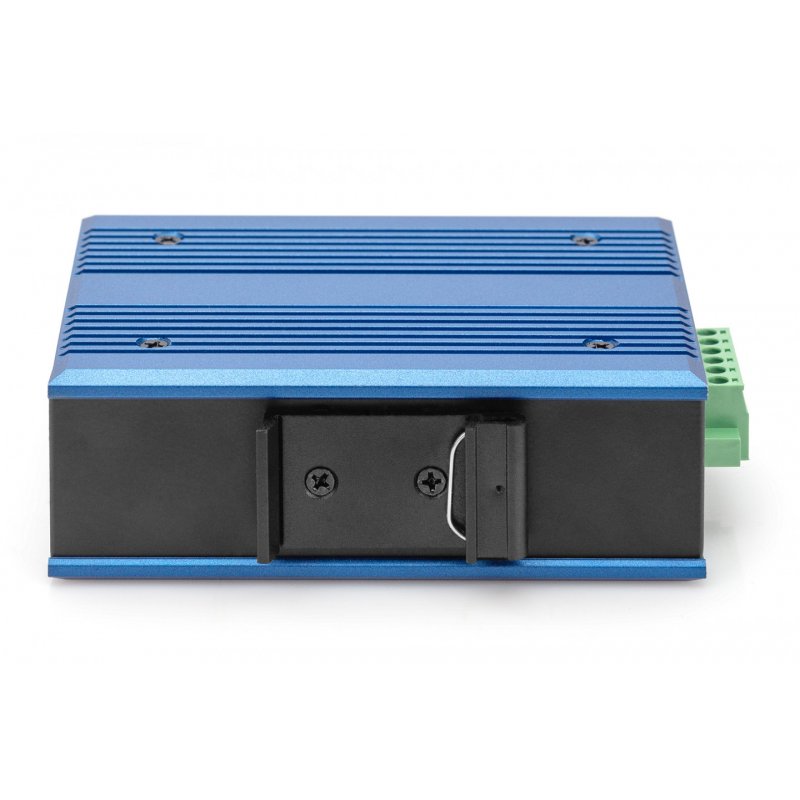

  • Installation: DIN rail
  • Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
  • Enclosure: IP40 aluminum housing
  • LED Indicator: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow
  • Power Input: 12 to 48V DC redundant power
  • Power Consumption: < 3 watts
  • Surge protection: ±4KV
  • Network Protocols: IEEE802.3i 10 Base-T; IEEE802.3u;100 Base-TX/FX; IEEE802.3ab 1000 Base-T; IEEE802.3z 1000 Base-X; IEEE802.3x
  • Network cables: 10 BASE-T: Cat3,4,5 UTP(≤100 meter), 100 BASE-TX: Cat5 or later UTP(≤100meter),1000 BASE-TX: Cat6 or later UTP(≤100 meter)
  • "Industry Standard: FCC CFR47 Part 15,EN55032 Class A,
  • MTBF: >300,000hours
  • Dimensions (W x D x H): 118x 92.4 x 40 mm
  • Weight: Product Weight: 0.4KG, Packing Weight: 0.53KG
  • "Working Environment: Working temperature: -40～80℃,
  • Automatic cable detection - Auto MDI / MDI-X function

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

ean13
4016032488200
