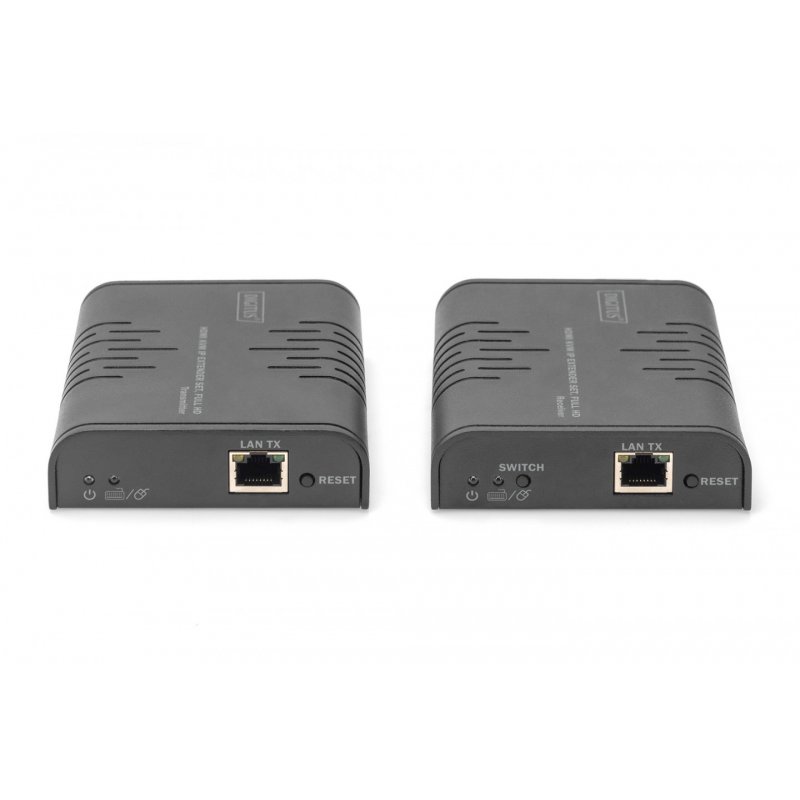

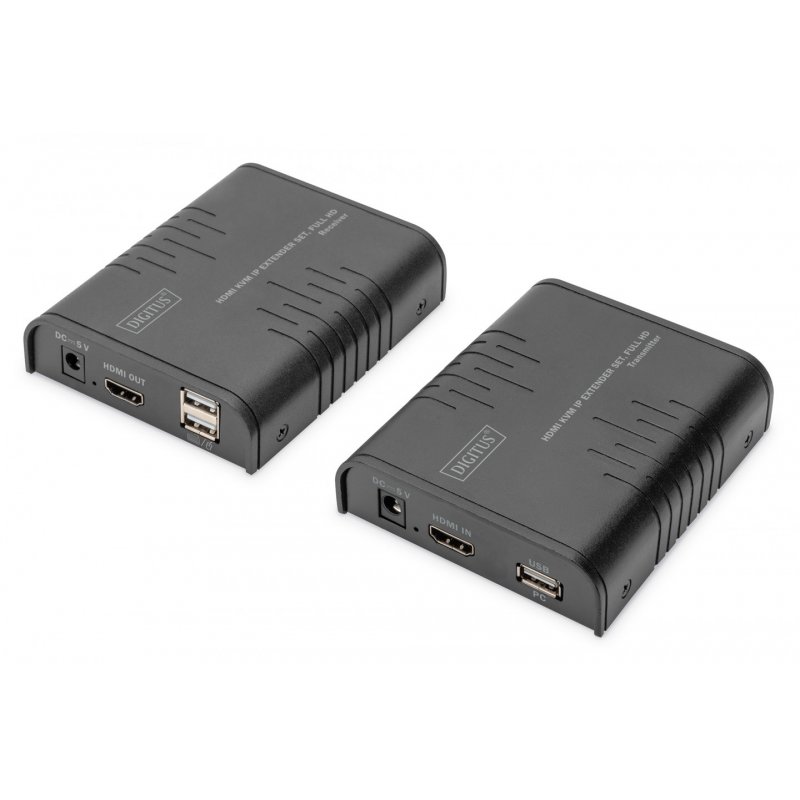

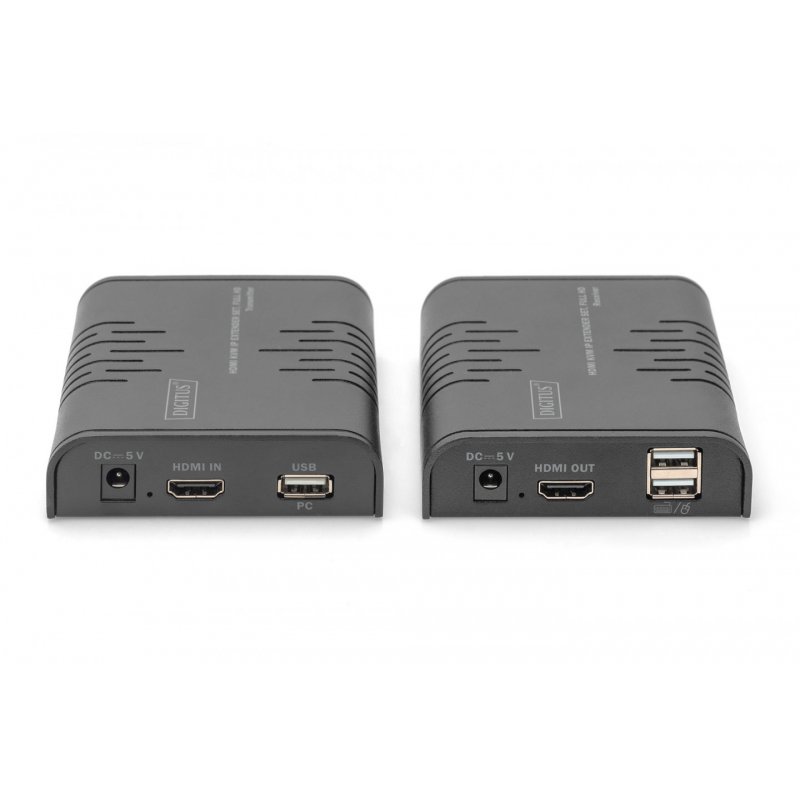

Digitus Digitus HDMI KVM IP Extender Set, Full HD

Digitus HDMI KVM IP Extender Set, Full HD, Transmitter & receiver, Wired, 120 m, Cat5e, 1920 x 1080 pixels, 1920x1080 60Hz
DS-55529
4016032490906
€209.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus HDMI KVM IP Extender Set, Full HD. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 120 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. Input current: 1 A, Power consumption (receiver) (max): 3.5 W, DC voltage: 5 V. Transmitter width: 9 cm, Transmitter depth: 11 cm, Transmitter height: 2.7 cm
  • Extends Full HD AV signals with a CAT-5e (or higher) over an unlimited distance via the existing local network infrastructure or commercial network switches
  • Extends Full HD AV signals with a CAT-5e (or higher) cable up to 120 m (point-to-point connection)
  • KVM function on the receiver side for connection of mouse/keyboard to control the signal source on the output screen
  • Can be extended on up to 253 screens (receivers) - additional receivers. DS-55530
  • Supports resolutions of up to 1080p/60Hz, Full HD
  • Supports CAT 5e (or higher) network cable
  • Easy installation thanks to Plug & Play - no additional software/drivers etc. required
  • Supports Full-HD resolutions of up to 1920x1080 / 60 Hz
  • HDMI 1.3
  • HDCP 1.4
  • Transmitter unit connections:
  • 1x HDMI input (1080p/60Hz) - Connection signal source
  • 1x RJ45 output - Connection CAT transmission cable
  • 1x USB-A (2.0) input - Connection of signal source to use KVM functionality
  • 1x Power adapter input (DC 5V/1A) - Connection for external power adapter
  • 1x Reset button
  • 4x LED activity light
  • Receiver unit connections:
  • 1x HDMI output (1080p/60Hz) - Connection output device
  • 1x RJ45 input - Connection CAT transmission cable
  • 2x USB-A (2.0) input - Connection of mouse/keyboard
  • 1x KVM button - Switch to the desired receiver (output device) to use the KVM functionality
  • Operating temperature: -10 - 60°
  • Power consumption (1 unit): approx. 3.5W
  • Housing: Metal
  • Dimensions (1 unit): L 11 x W 9 x H 2.7 cm
  • Weight (1 unit): 244 g
  • Color: black

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

ean13
4016032490906
