STARTECH StarTech.com 4-Port Multi-Gigabit PoE Injector, 5/2.5G Ethernet (NBASE-T), PoE/PoE /PoE (802.3af/802.3at/802.3bt),

StarTech.com 4-Port Multi-Gigabit PoE Injector, 5/2.5G Ethernet (NBASE-T), PoE/PoE /PoE (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, 10,100,1000,2500,5000 Mbit/s, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, Cat5e, Cat6, Cat6a, Microsemi - PD69208T4, Microsemi - PD69200R, Grey
AS445C-POE-INJECTOR
0065030900928
€489.90
VAT included

Visa
Mastercard
PayPal

Description

StarTech.com 4-Port Multi-Gigabit PoE Injector, 5/2.5G Ethernet (NBASE-T), PoE/PoE /PoE (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,5000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u. Product colour: Grey, Housing material: Metal, Maximum operating distance: 100 m. AC adapter input voltage: 100 - 240 V, Input current: 2.5 A, AC adapter output voltage: 54 V. Width: 70 mm, Depth: 94 mm, Height: 39 mm. Package width: 170 mm, Package depth: 300 mm, Package height: 90 mm

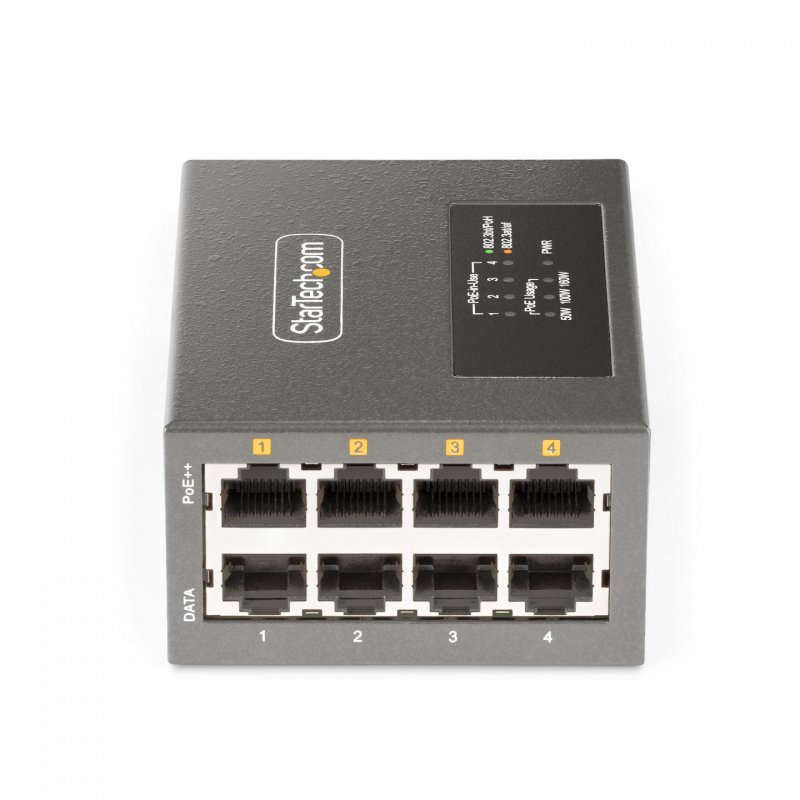

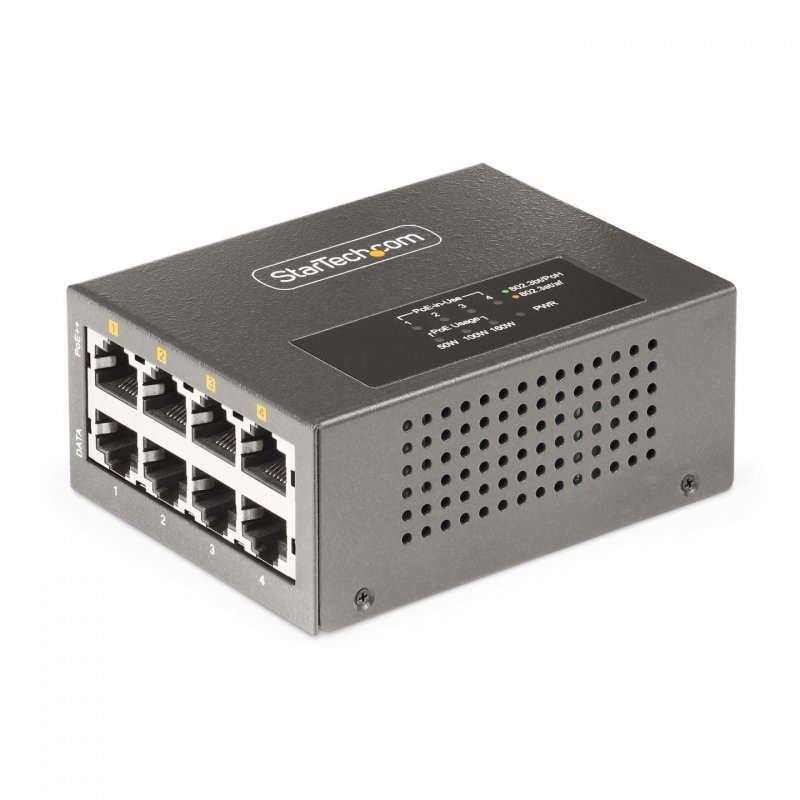

  • 4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE /PoE 95W max; Level-4 ESD protection
  • SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH , or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts
  • MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment

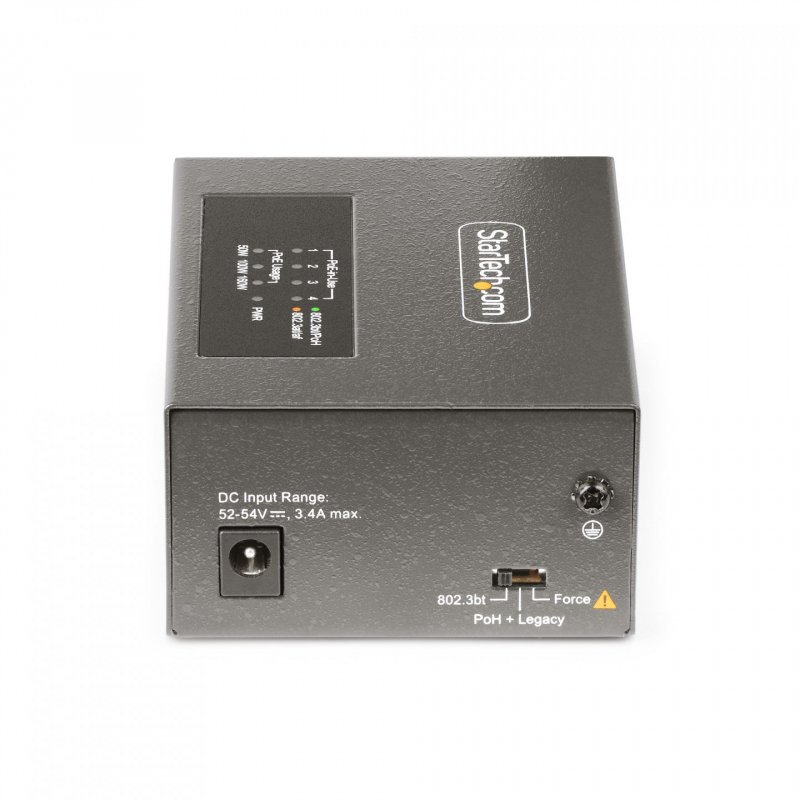

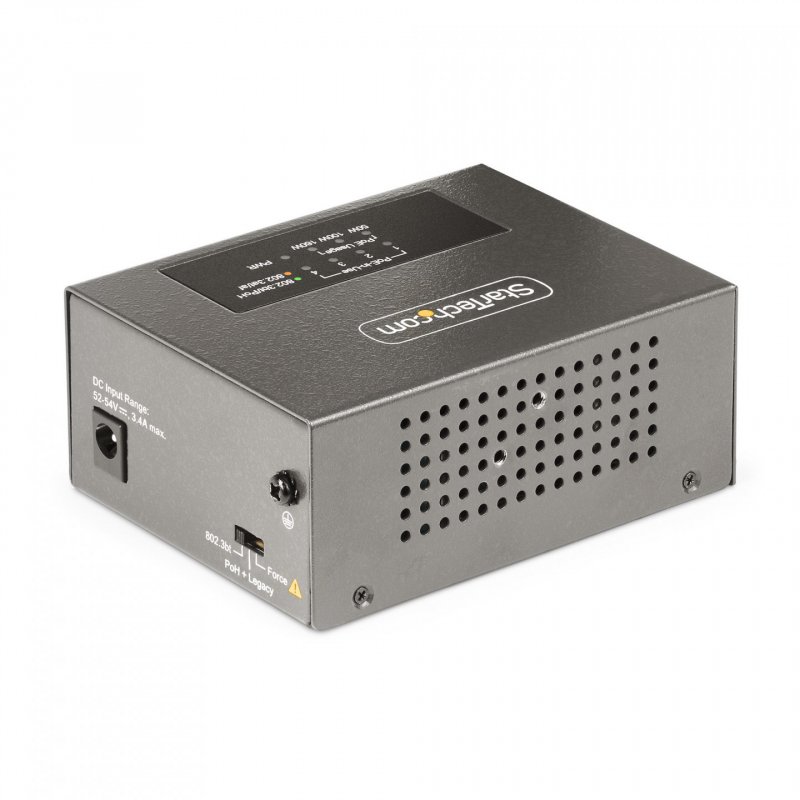

  • RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports

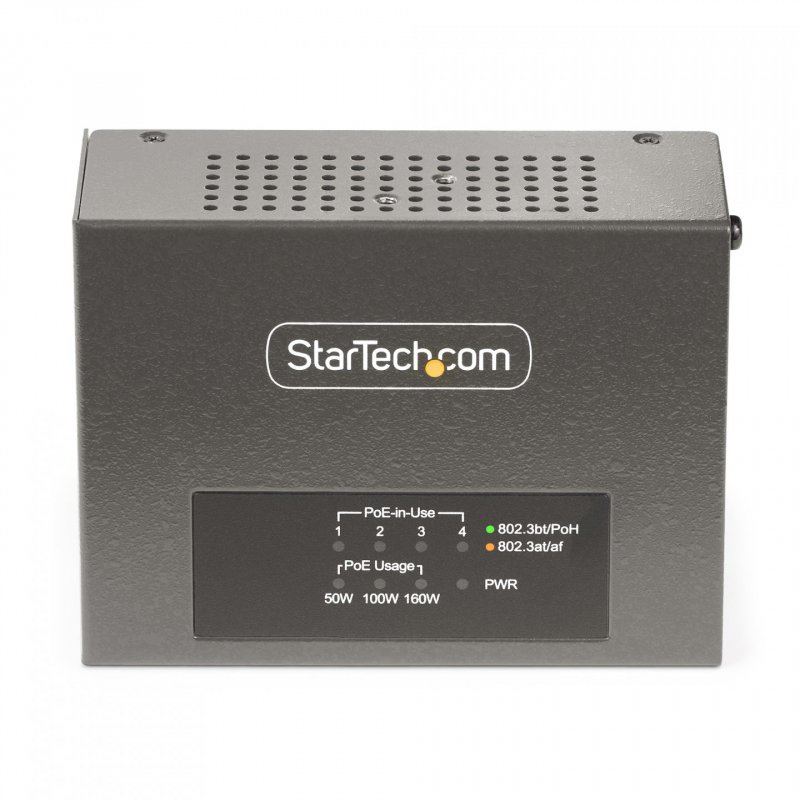

  • STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system

Data sheet

Colour
Black
Garantie
2 ans
Marque
STARTECH

Specific References

ean13
0065030900928
