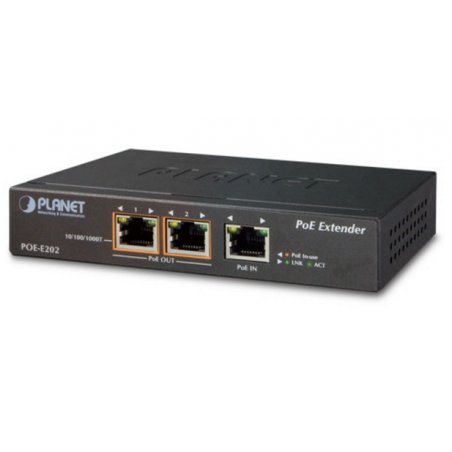

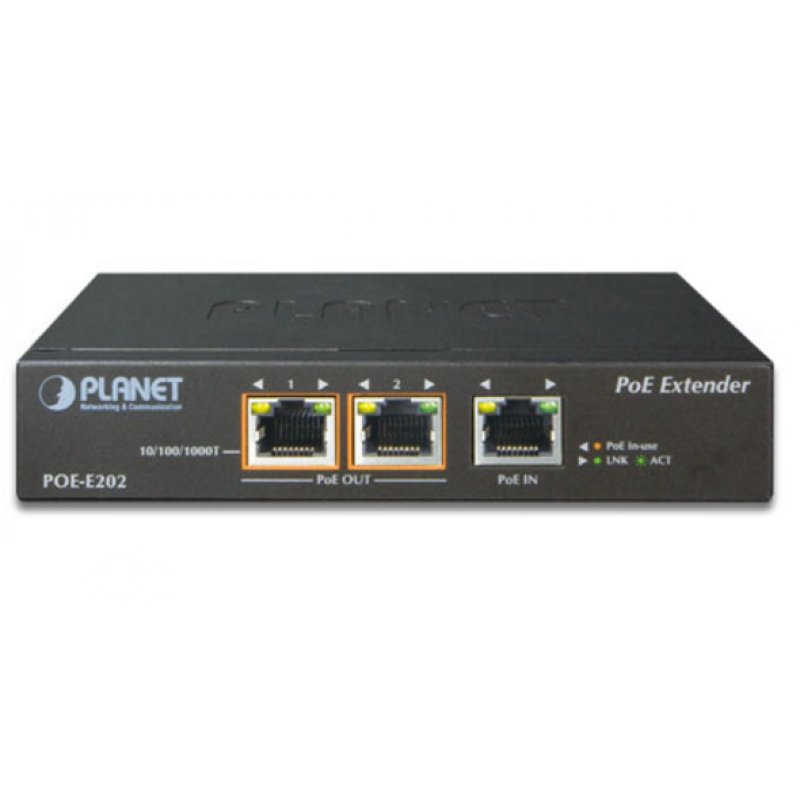

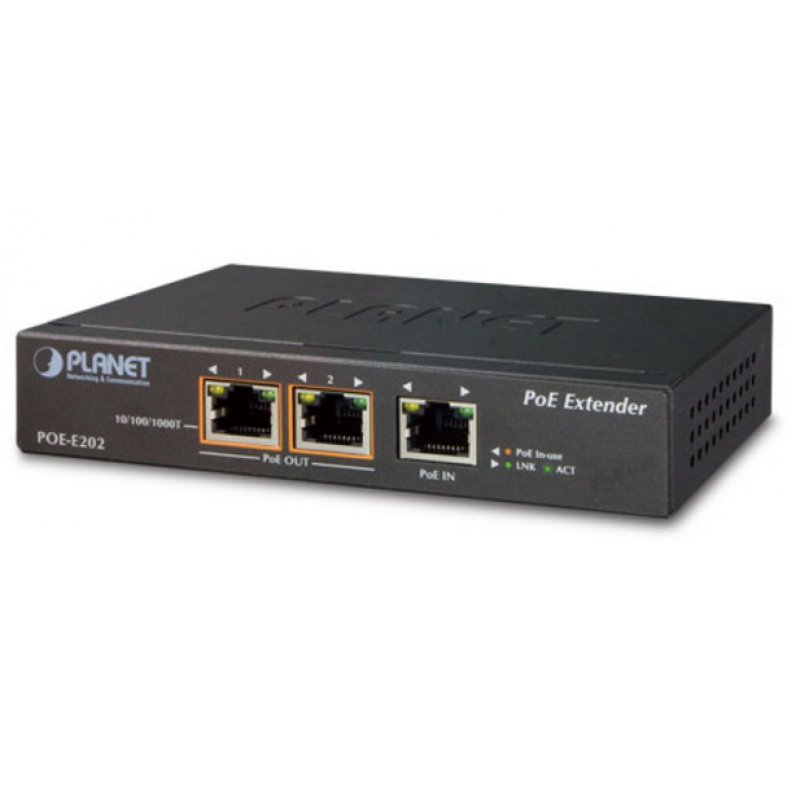

PLANET Technology Corp.po PLANET POE-E202 network extender Network transmitter & receiver Black 10, 100, 1000 Mbit/s

PLANET POE-E202, Network transmitter & receiver, 100 m, 2 Mbit/s, Cat5, Cat5e, 10,100,1000 Mbit/s, Full, Half
POE-E202
4711605282055
€94.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET POE-E202. Type: Network transmitter & receiver, Maximum transfer distance: 100 m, Data transfer rate: 2 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Product colour: Black, Housing material: Metal, Mounting type: Desk/Wall. Power consumption (max): 30.8 W, Power over Ethernet (PoE) voltage range: 52 - 56 V. Width: 140 mm, Depth: 77 mm, Height: 28 mm
  • Physical Port
  • 3-port 10/100/1000BASE-T Gigabit RJ45 interface
  • 1-port data power input
  • 2-port data power output
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD
  • Supports PoE input power up to 30.8 watts
  • Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE
  • Up to 2 IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 25 watts for each PoE port
  • Auto detects powered device (PD)
  • Extends the range of PoE to an additional 100 meters (328ft.)
  • Forwards both Ethernet data and PoE power to remote device
  • Layer 2 Features
  • Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Integrates address look-up engine, supporting 2K absolute MAC addresses
  • 10K iumbo packet support
  • IEEE 802.1Q VLAN transparency
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Case and Installation
  • No external power cable installation required
  • Made of metal, desktop size design
  • Wall-mountable, Plug-and-Play installation
  • 0 ~ 50 degrees C operating temperature

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605282055
