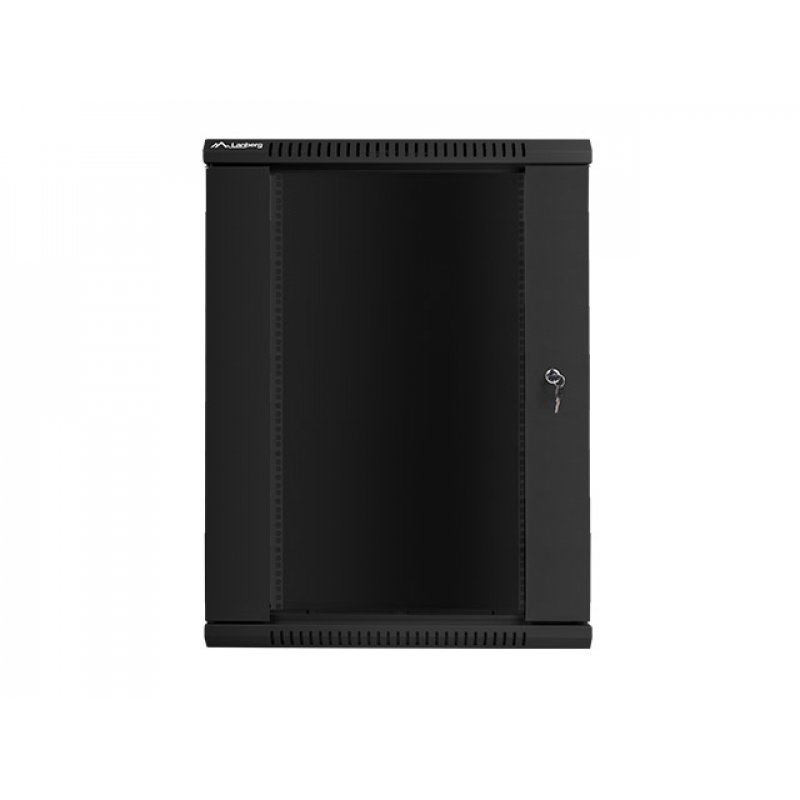

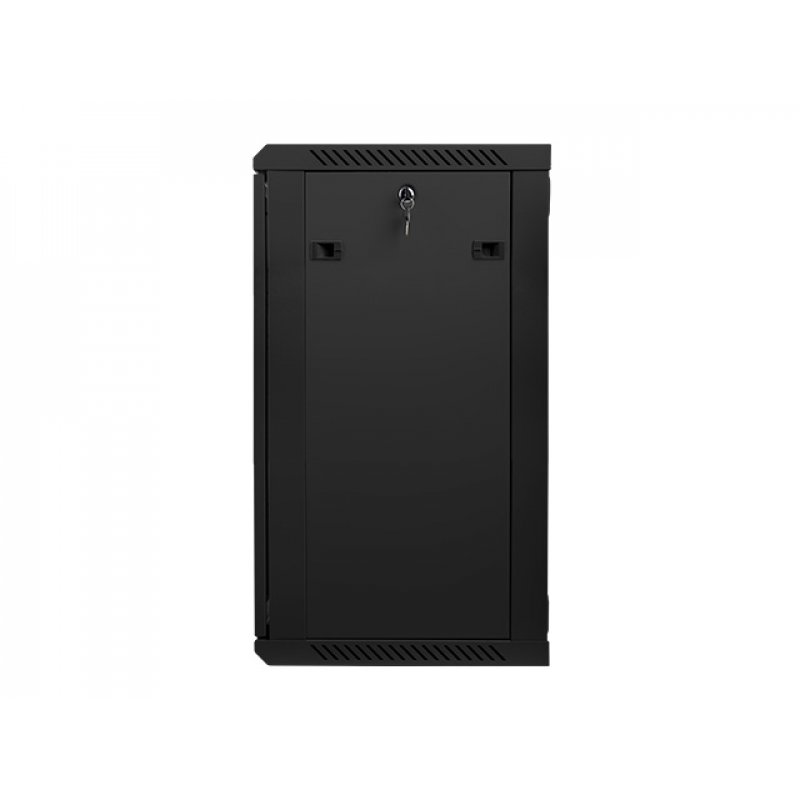

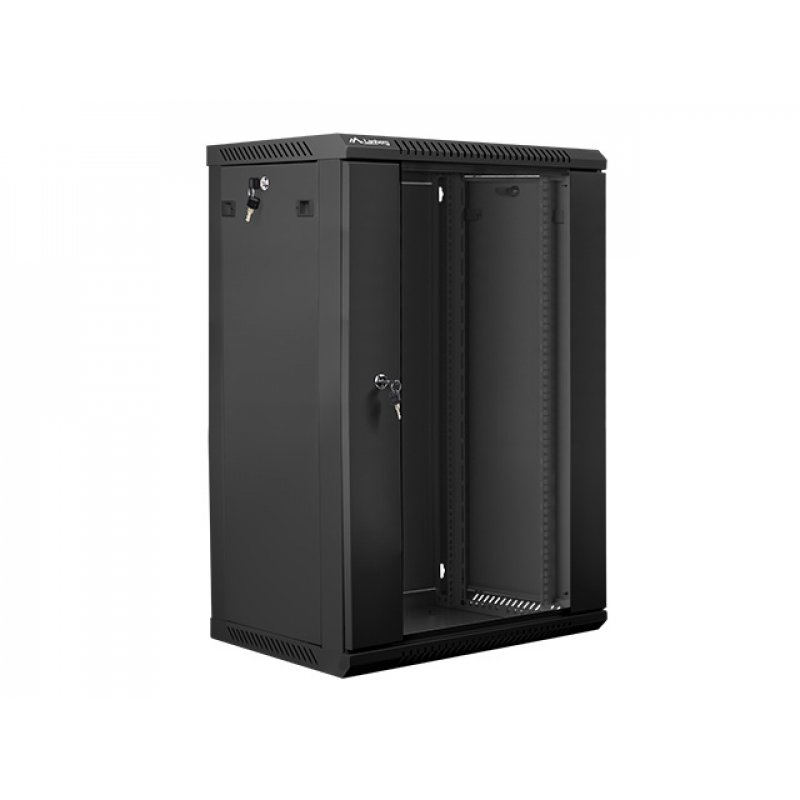

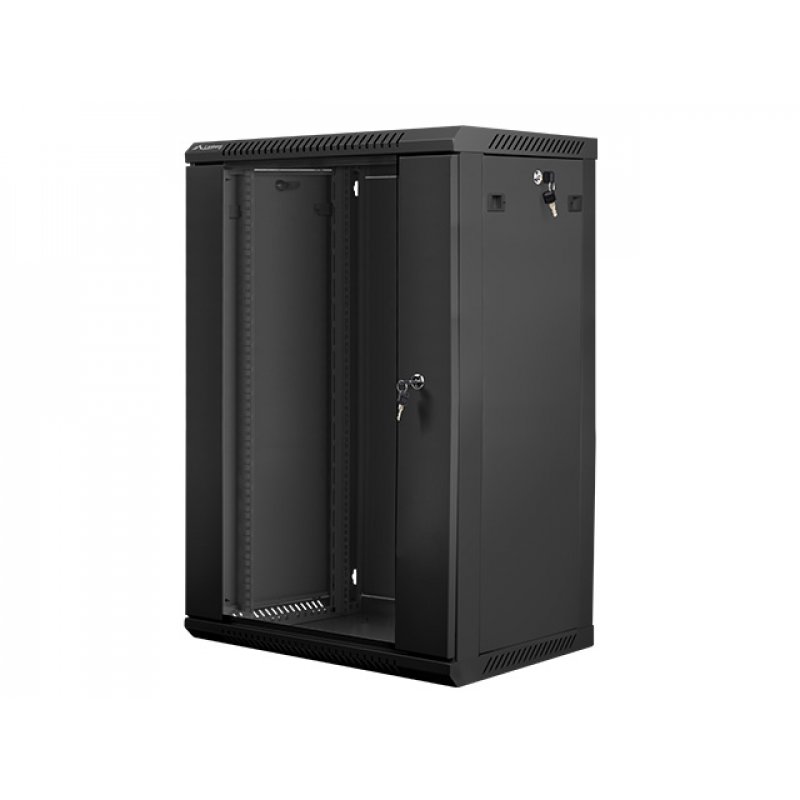

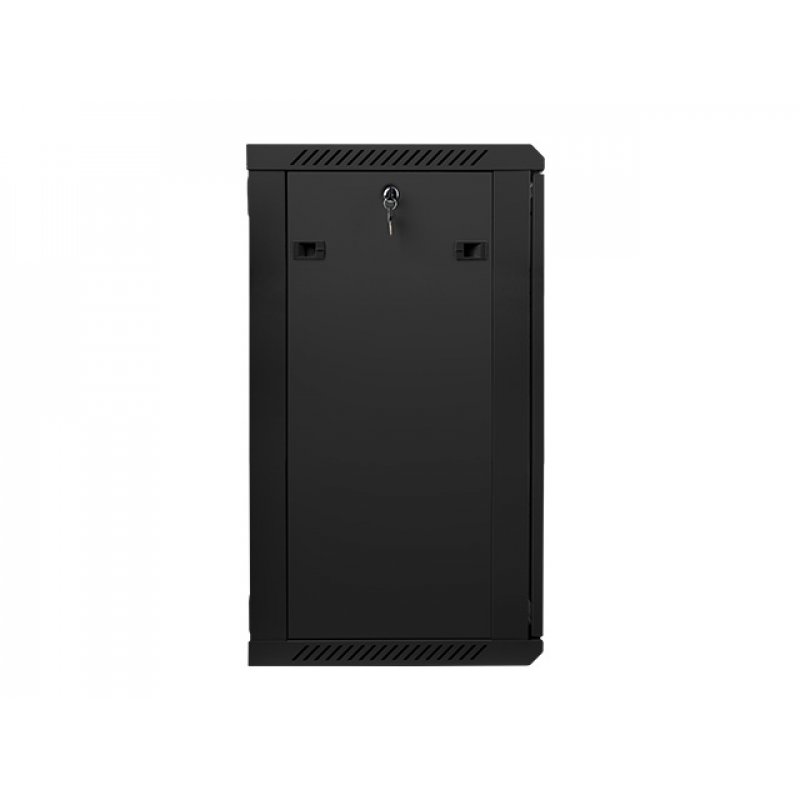

Lanberg Lanberg WF01-6418-10B rack cabinet 18U Wall mounted rack Black
Lanberg WF01-6418-10B, Wall mounted rack, 18U, 60 kg, Key lock, Rack rails, Cable management
WF01-6418-10B
5901969403213
€199.90
VAT included
Description
Lanberg WF01-6418-10B. Type: Wall mounted rack, Rack capacity: 18U, Maximum weight capacity: 60 kg, Key lock, Cable management, Rack rails, International Protection (IP) code: IP20, Assembly required, Product colour: Black
- Manufactuer: Lanberg
- Manufactuer code: WF01-6418-10B
- Cabinet type: Wall mount
- Body color: Black RAL9004
- Height: 18U
- Cabinet dimensions (W x D x H): 600x450x907 mm
- Height (top panel - bottom panel): 900 mm
- Height (top panel - ground including screws): 907 mm
- Packaging dimensions (W x D x H): 88x95x13 cm
- Internal width spacing between rack rails: 450 mm
- Width of the spacing between holes of rack rails: 475 mm
- External width spacing between rack rails: 500 mm
- Loading capacity: max. 60 KG
- Degree of protection: IP20
- Doors type: Temper glass
- Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI
- Material: High grade cold rolled steel, powder coated
- Fan avaliable: Yes, 120mm, 110V or 230V
- Glass thickness: 5.0 mm
- Sheet thickness: vertical mounting rails - 1,50 mm; mounting profile - 1,50 mm; others - 1,20 mm; top & bottom & side panel - 1,00 mm
- Cable entry panel: Top, Bottom
- Included: Accessory bag, earth kit, front door lock, two side panels with locks, 10 cage nuts M6
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Lanberg
Specific References
- ean13
- 5901969403213
