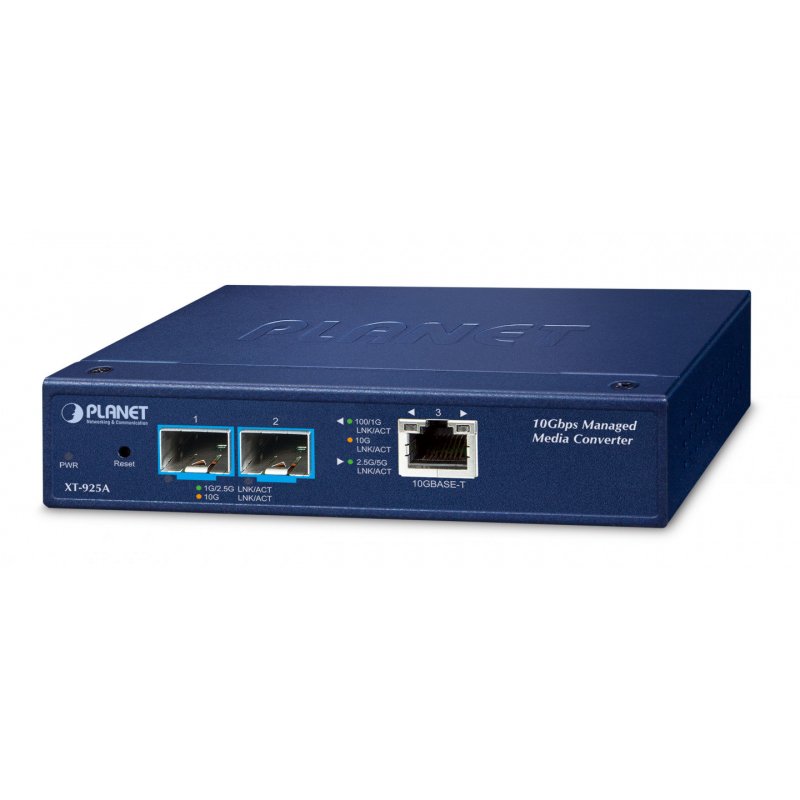

PLANET Technology Corp.po PLANET 1-Port network media converter Blue

PLANET 1-Port, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an,..., SFP , Blue, Metal, FCC Part 15 Class A, CE Class A, 135 mm
XT-925A
4711605287326
€344.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET 1-Port. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an,.... Fiber optic connector: SFP . Product colour: Blue, Housing material: Metal, Certification: FCC Part 15 Class A, CE Class A. Width: 135 mm, Depth: 87.8 mm, Height: 20 mm
  • Physical Port
  • ．One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
  • ．Two 10G/2.5G/1G/100BASE-X SFP interface
  • Layer 2 Features
  • ．Storm Control support
  • ．．Broadcast / Multicast / Unknown Unicast
  • ．Supports VLAN
  • ．．IEEE 802.1Q tagged VLAN
  • ．．Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • ．．Up to 256 VLAN groups, out of 4096 VLAN IDs
  • ．Supports ITU-T G.8032 ERPS ring with recovery time less than 500ms (software-based)
  • ．Link Layer Discovery Protocol (LLDP)
  • ．16K MAC address table with auto-aging
  • ．Jumbo Frame support up to 12K in size
  • Quality of Service
  • ．Ingress Shaper and Egress Rate Limit per port bandwidth control
  • ．8 priority queues on all converter ports
  • ．Strict priority and Weighted Round Robin (WRR) CoS policies
  • ．Traffic classification
  • ．．IEEE 802.1p CoS
  • ．．IP TOS / DSCP / IP Precedence
  • ．．IP TCP/UDP port number
  • ．．Typical network application
  • Management
  • ．IPv4 and IPv6 dual stack management
  • ．Support Link Fault Pass-through
  • ．Management Interfaces
  • ．．Web HTTP/HTTPS management
  • ．．Telnet Command Line Interface
  • ．．SNMPv1, v2c, v3 monitoring
  • ．．SSHv2, TLSv1.2
  • ．System Maintenance
  • ．．Firmware upload/download via HTTP
  • ．．Reset button for system reboot or reset to factory default
  • ．．Dual images
  • ．Simple Network Time Protocol (SNTP)
  • ．User privilege levels control
  • ．SNMP Management
  • ．．SNMP trap for interface link up and link down notification
  • ．．Four RMON groups (history, statistics, alarms and events)
  • ．Network Diagnostic
  • ．．SFP-DDM (Digital Diagnostic Monitor)
  • ．Syslog remote alarm
  • ．Local system Log
  • ．ICMPv6 / ICMPv4 remote ping
  • ．PLANET Smart Discovery Utility for convenient deployment
  • ．PLANET Remote Management
  • ．．PLANET NMS Controller and CloudViewer app for central management
  • Security
  • ．IP address access management to prevent unauthorized intruder
  • ．Static MAC setting and MAC Filtering
  • ．Protected ports
  • Case and Installation
  • ．External 12VDC, 1.5A power adapter
  • ．0 to 50 degrees C operating temperature
  • ．Supports 4KVDC Contact/8KVDC Air Ethernet ESD protection
  • ．Wall-mount and DIN-rail installation (optional)

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605287326

Comments

No customer reviews for the moment.
