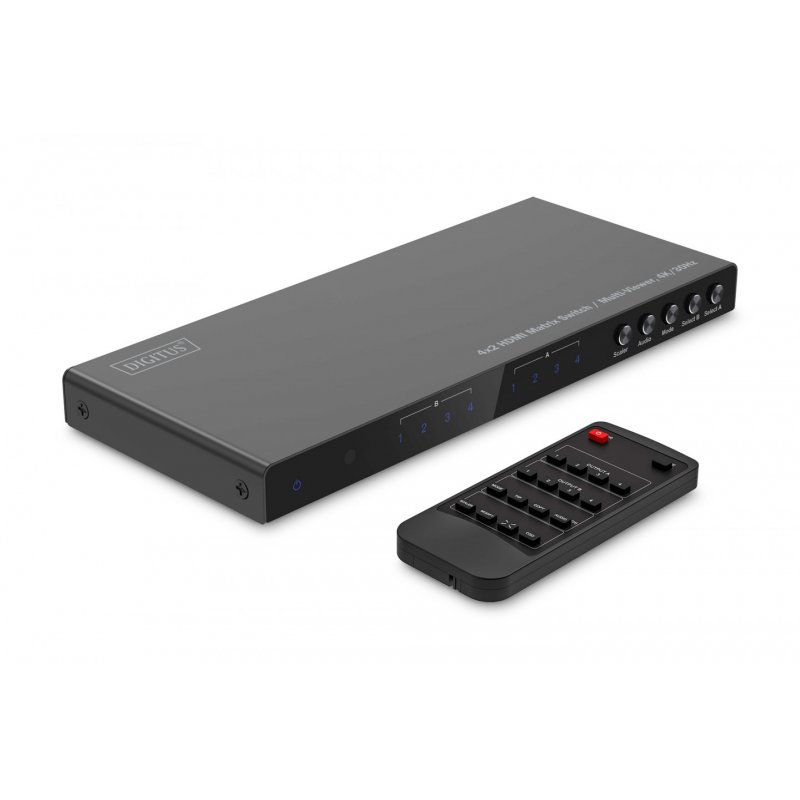

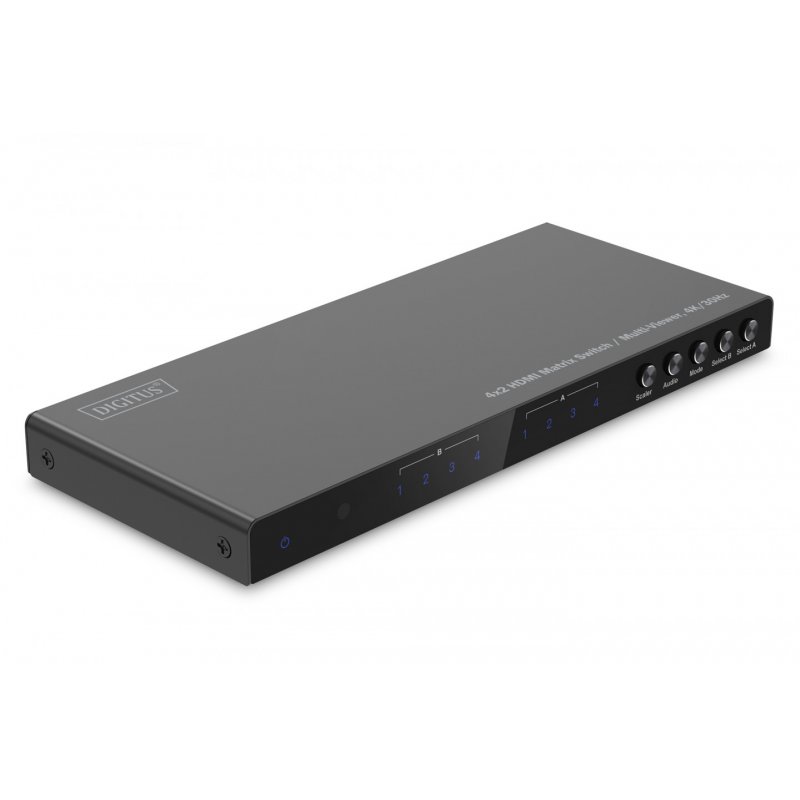

Digitus Digitus 4x2 HDMI Matrix Switch / Multi-viewer, 4K/30Hz
Digitus 4x2 HDMI Matrix Switch / Multi-viewer, 4K/30Hz, AV matrix switcher, 10.2 Gbit/s, Black, Metal, Buttons, Remote, Status
DS-55345
4016032495659
€124.90
VAT included
Description
Digitus 4x2 HDMI Matrix Switch / Multi-viewer, 4K/30Hz. Product type: AV matrix switcher, Bandwidth: 10.2 Gbit/s. Housing colour: Black, Housing material: Metal, Control type: Buttons, Remote. USB connector type: Micro-USB A, Headphone connectivity: 3.5 mm. Power consumption (typical): 5 W, Output current: 1000 mA, Output voltage: 5 V. Width: 91 mm, Depth: 214 mm, Height: 18.5 mm
- Switch between up to 4 HDMI sources and 2 playback devices via remote control, on the device itself or via RS232 control
- Multi-viewer: 6 modes for individual display of sources at HDMI output A (primary) or at HDMI output A & B simultaneously (secondary) via remote control or on the device itself
- Audio extractor: Toslink / Stereo (3.5 mm) - Decoupling / separate reproduction of the audio signal
- Max. resolution: 4K/30 Hz
- RS232 control via micro USB
- Scaler (changeover switch) - Adjustment of HDMI output resolution (1080p, 1600p, 4K/30Hz)
- Separate on/off switch
- Video bandwidth: 10.2 Gbps
- HDCP 1.4
- HDMI 1.4

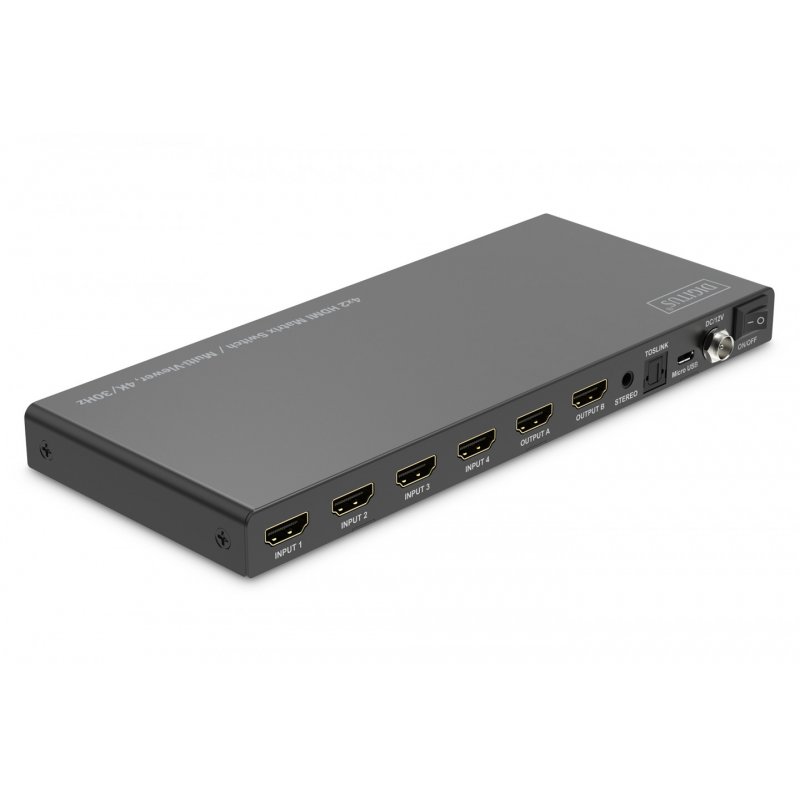

- Connections:
- 4x HDMI input (4K/30Hz)
- 2x HDMI output (4K/30Hz)
- 1x Toslink
- 1x 3.5 mm audio
- 1x Micro USB input - RS232 control / Service, remote maintenance update
- 1x DC jack with screw connector 5V/1A (power supply) - Connection power adapter
- 9x Status LEDs
- 1 x IR receiver
- 5x Changeover switch
- 1x On/Off switch
- Operating temperature: 0-70°
- Power consumption: approx. 5W
- Housing: Metal
- Dimensions (housing): L 21.4 x W 9.1 x H 1.85 cm
- Weight: 450 g
- Color: black
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
Specific References
- ean13
- 4016032495659
