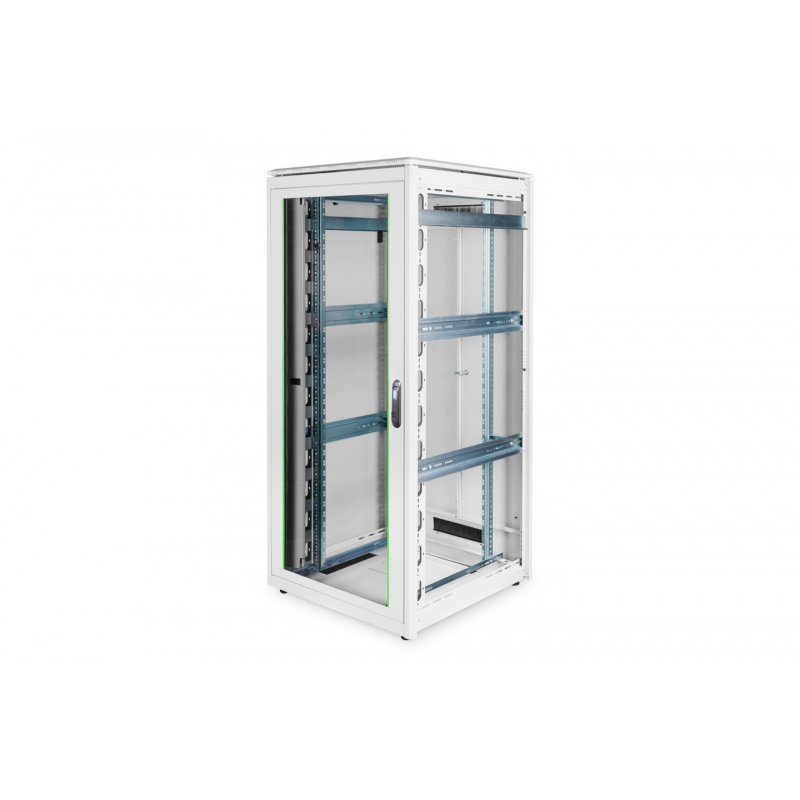

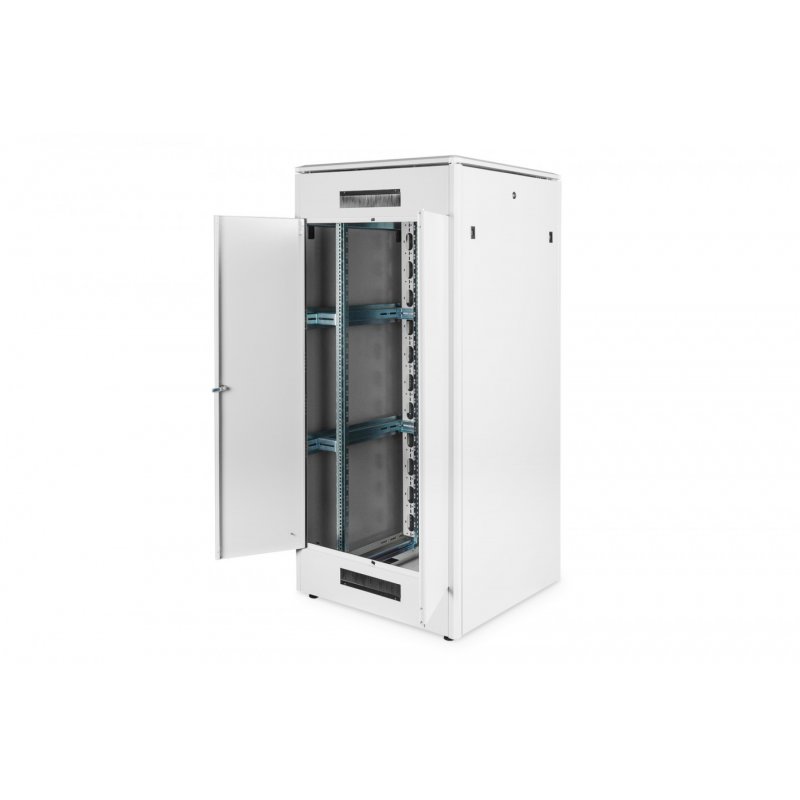

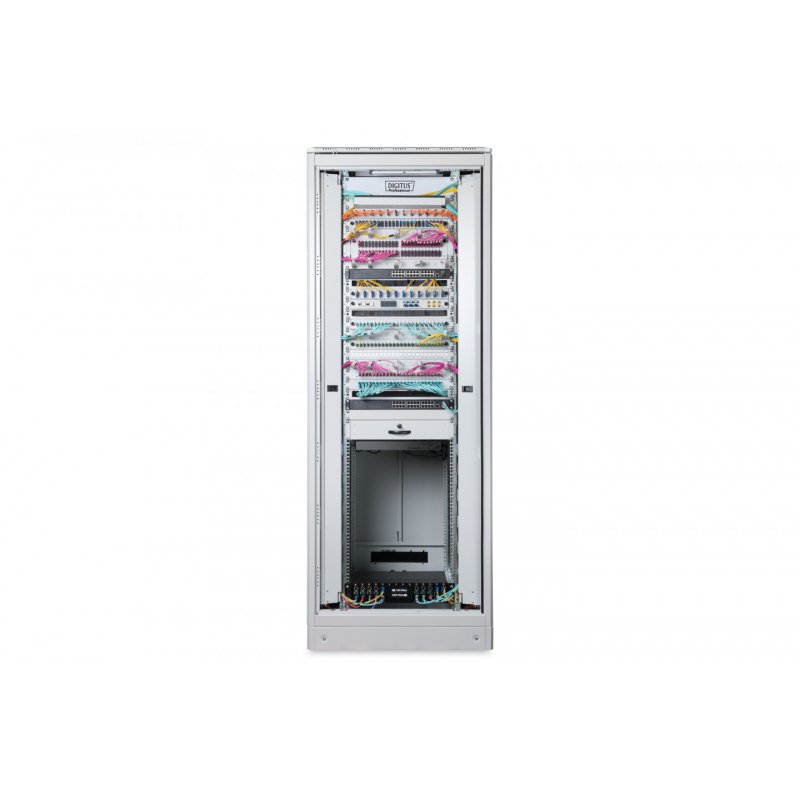

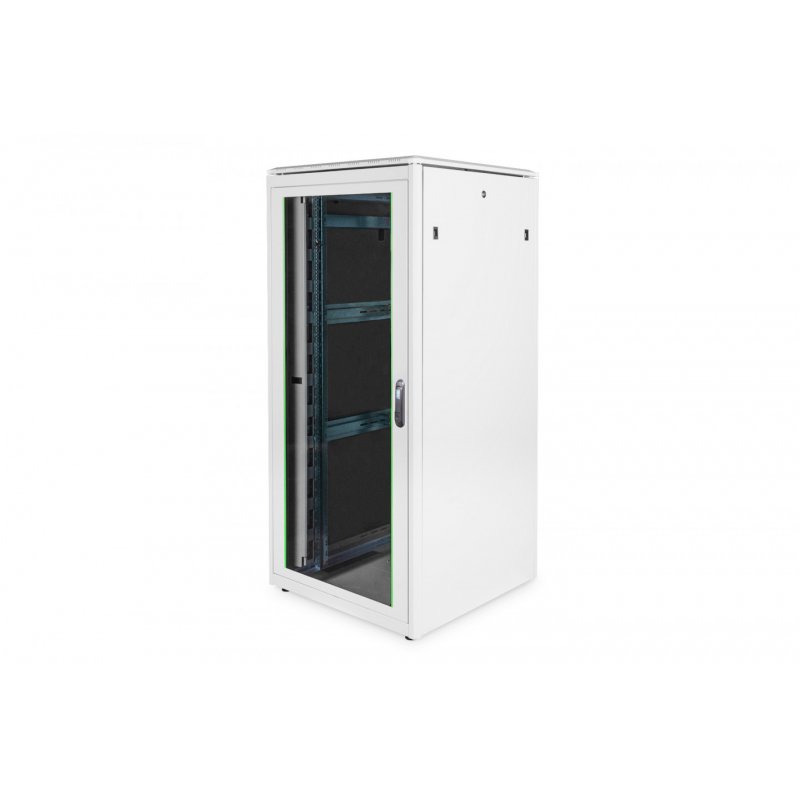

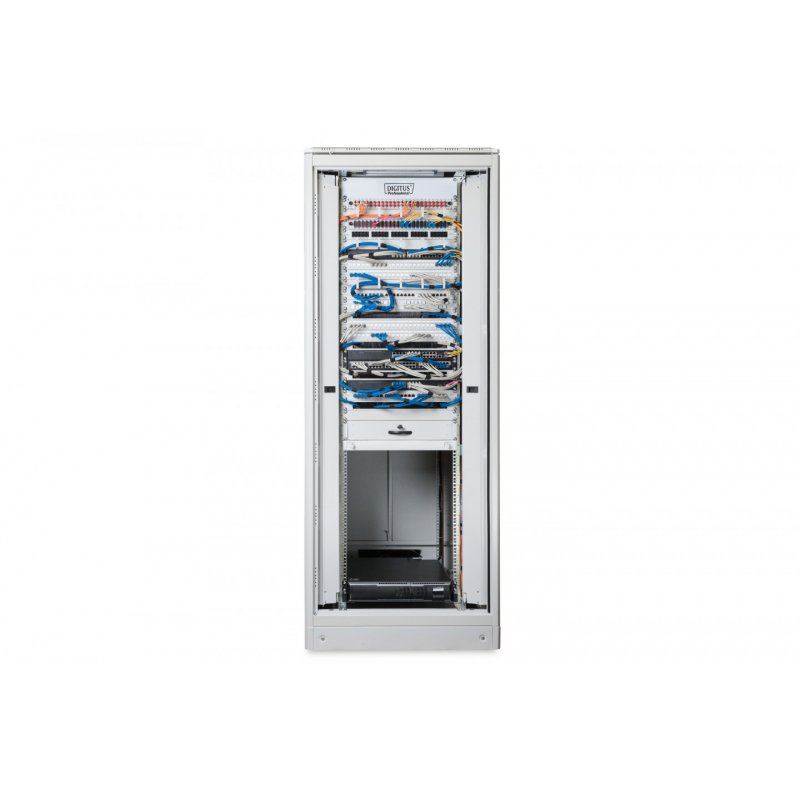

Digitus Digitus Network Rack Unique Series - 800x800 mm (WxD)
Digitus Network Rack Unique Series - 800x800 mm (WxD), Freestanding rack, 36U, 800 kg, Grey
DN-1936U-88-1
4016032332329
€1,047.90
VAT included
Description
Digitus Network Rack Unique Series - 800x800 mm (WxD). Type: Freestanding rack, Rack capacity: 36U, Maximum weight capacity: 800 kg, International Protection (IP) code: IP20, Product colour: Grey
- Safety class rating IP20
- Complete metal frame front door with safety glass
- Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
- 120° door opening angle on front- and rear doors
- Double wing opening rear door
- 1-point-locking-mechanism on all doors
- Side panels are lockable and removable
- incl. 4 pieces of leveling feet already pre-configured under the rack
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- Vertical cable management ducts in the front
- Cable entry with brush strip at the top and bottom of the cabinet rear side
- Sliding cable entry with rubber sealing on the base
- Top and base with brushed cable entries left and right
- Special roof construction for fan unit with added lid which can be unmounted
- Several earthing points for rack components
- Incl. installation set (screws, cage nuts, washers)
- Equipment mounting depth min.-max.: 563-743 mm
- Rack is completely mounted
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Modèle
- DN-1936U-88-1
- Weight
- 110
Specific References
- ean13
- 4016032332329
