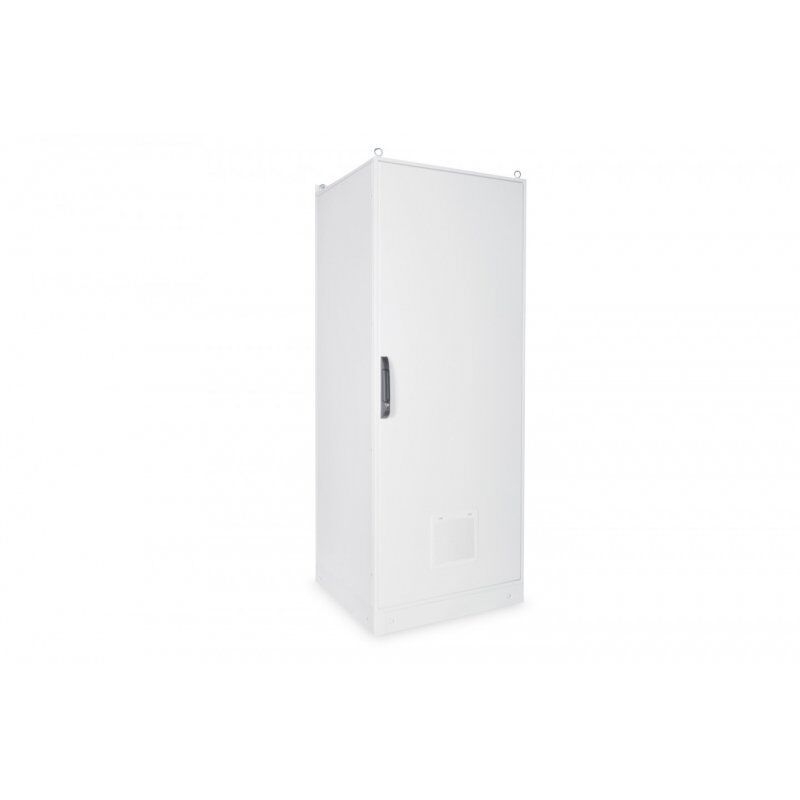

ASSMANN Digitus Industrial Network Cabinet, Indoor, IP55
Digitus Industrial Network Cabinet, Indoor, IP55, Freestanding rack, 42U, 1500 kg, Key lock, Cable management, Grey
DN-1942U-I-88-1
4016032371496
€2,499.00
VAT included
Description
Digitus Industrial Network Cabinet, Indoor, IP55. Type: Freestanding rack, Rack capacity: 42U, Maximum weight capacity: 1500 kg, Key lock, Cable management, International Protection (IP) code: IP55, Product colour: Grey

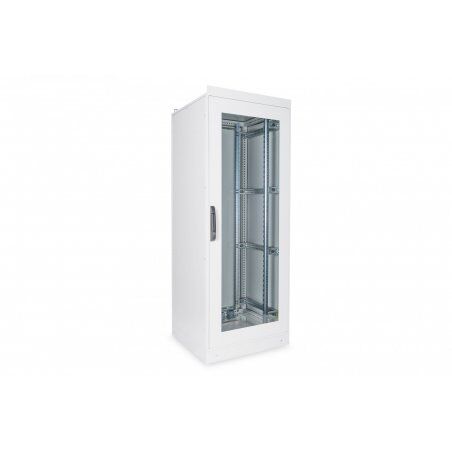

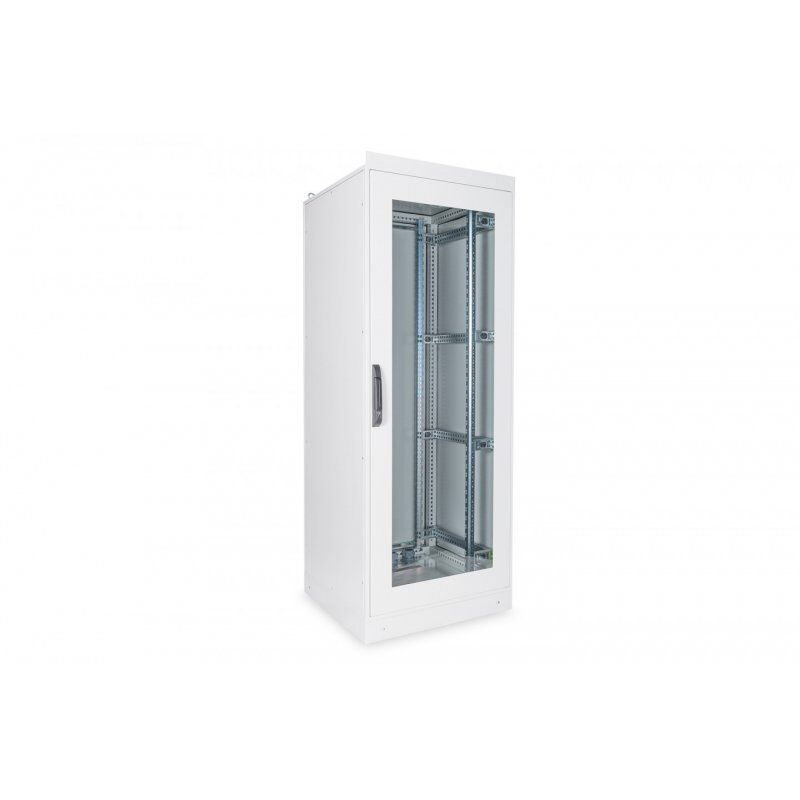

- Front door with complete metal frame and 4 mm strong tempered glass
- Closed steel rear door with filtered air inlet (250x250 mm)
- Door structure is produced with multiple bending to obtain rigidity and strength
- Special gasketing system between metal frame and profile system made out of PUR (Polyurethane)
- Side panels with special fixing via countersunk bolt

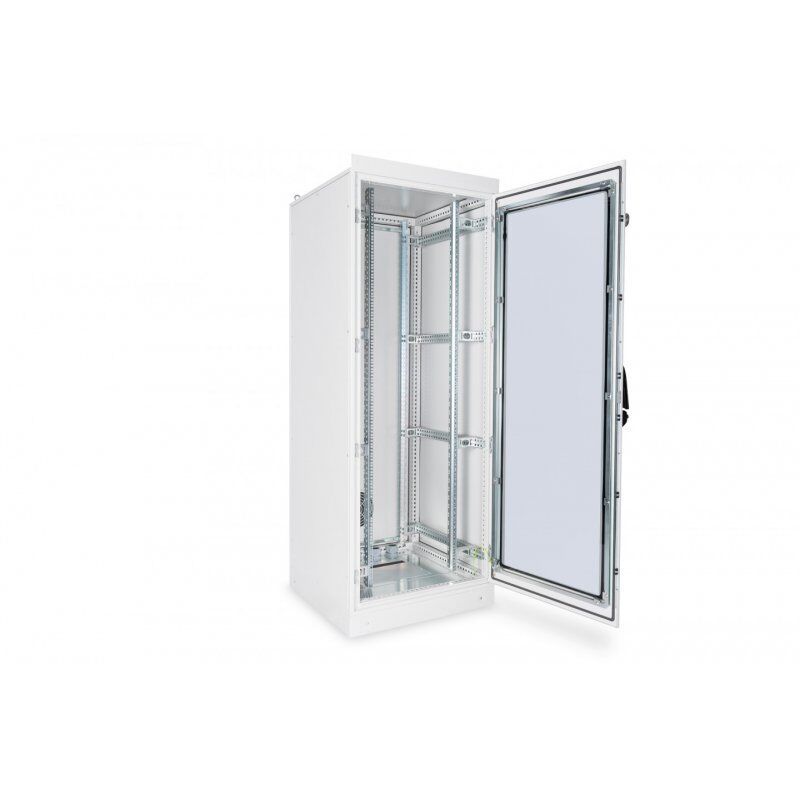

- 130° door opening angle
- 1.5 - 2.0 mm strong steel sheet
- Corner parts made out of E-160 material with aluminum injection molding, high resistance against corrosion
- Profile hole structure rotary inside
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking

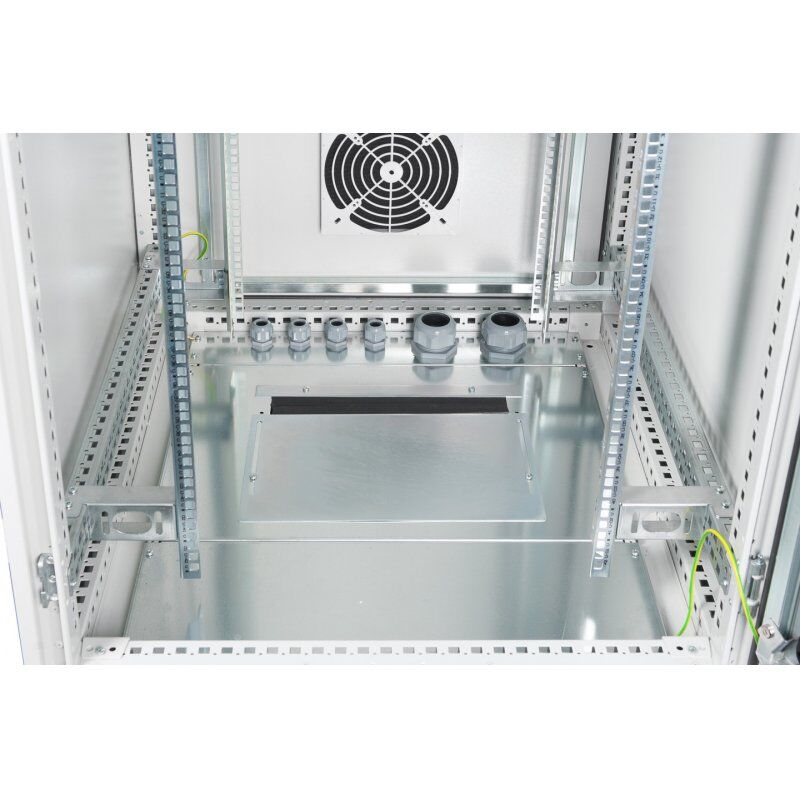

- Base chassis is equipped with sliding cable entry mechanism & PG cable entries (1x PG 48, 4x PG 21)
- Profiles produced with DIN EN10142-2000 DX51 D+Z material provide high resistance against corrosion
- Roof with screwed visual cover panel for lifting eye bolts
- Equipment mounting depth min.-max.: 160-660 mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-1942U-I-88-1
- Weight
- 1
Specific References
- ean13
- 4016032371496
