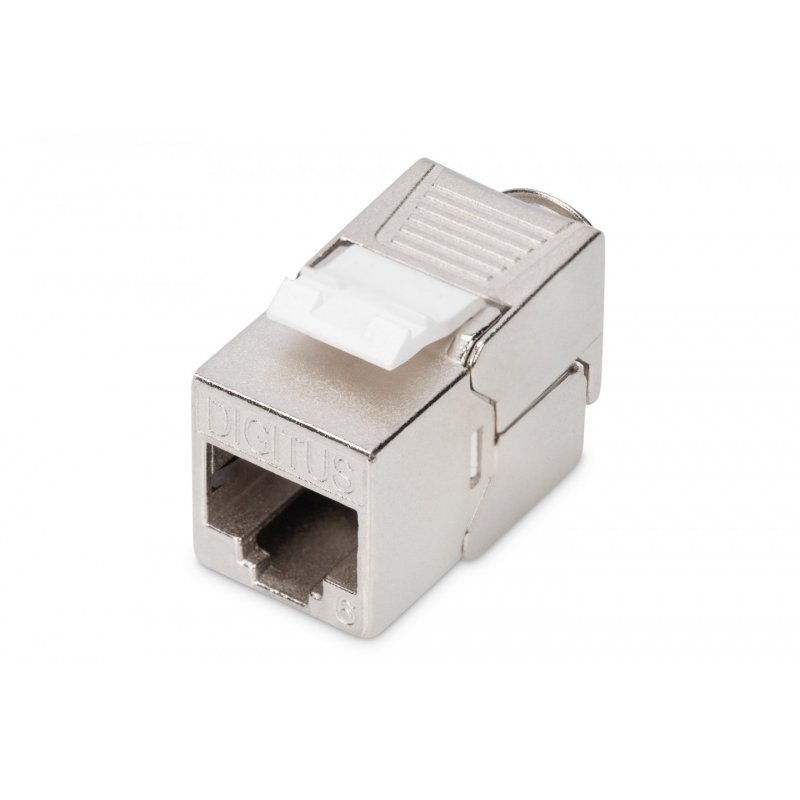

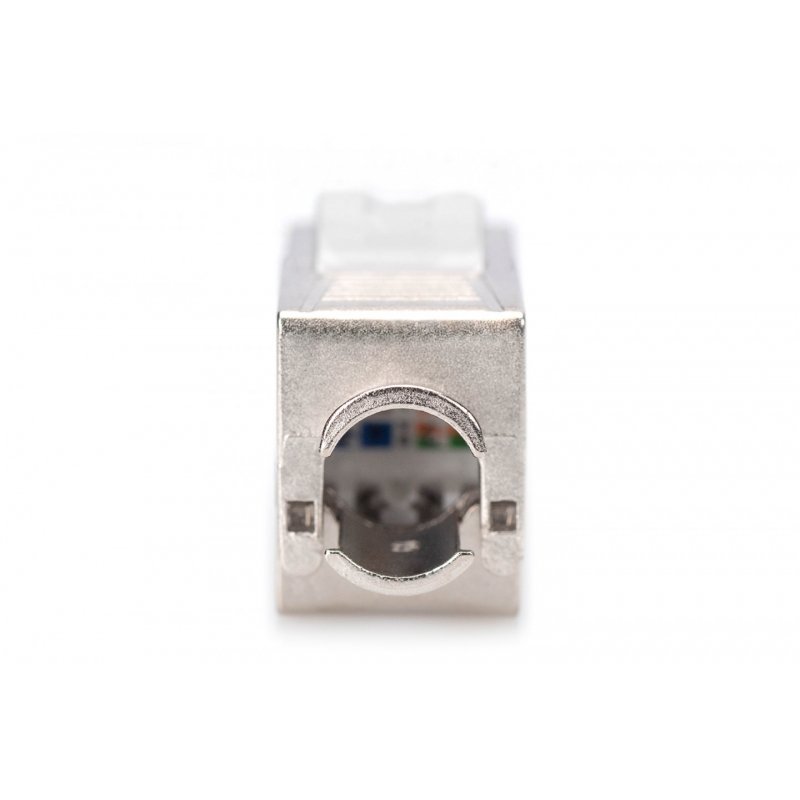

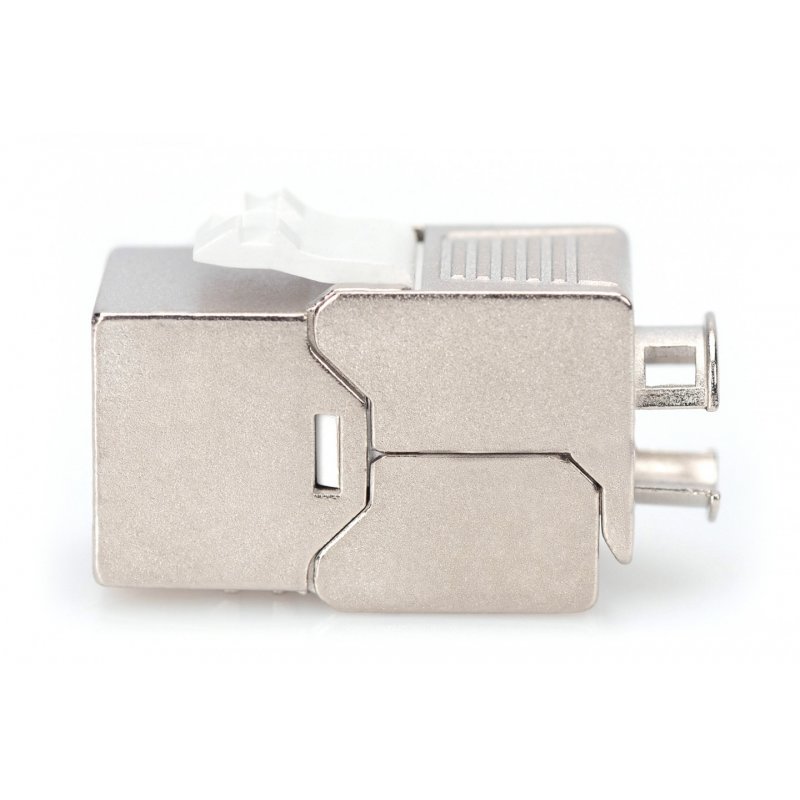

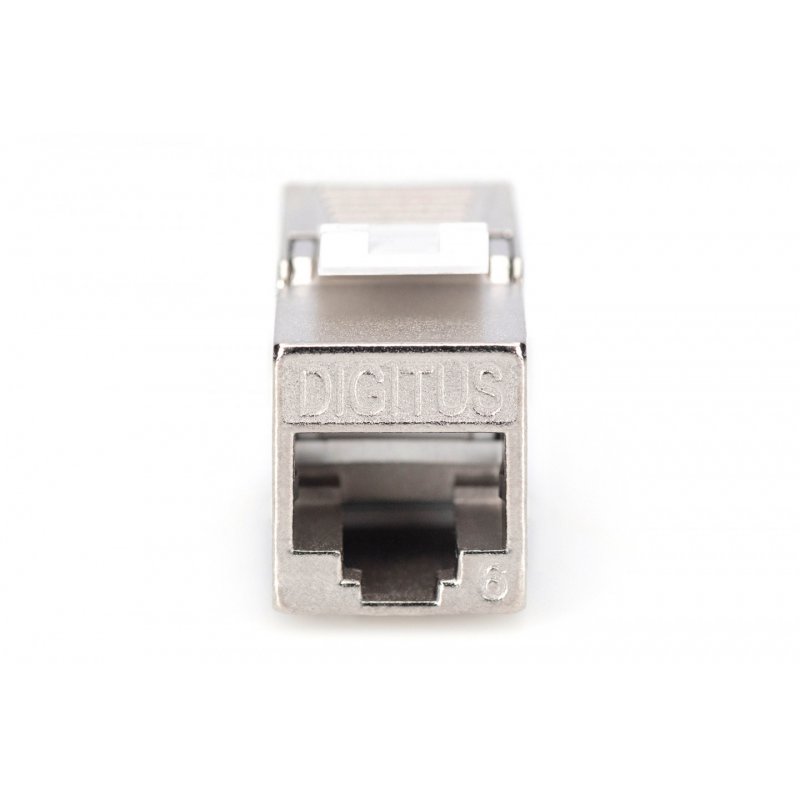

Digitus Digitus CAT 6 Keystone Module, shielded
Digitus CAT 6 Keystone Module, shielded, Flat, Silver, RJ-45, RJ-45, Female, Female
DN-93612-1
4016032378518
€7.00
VAT included
Description
Digitus CAT 6 Keystone Module, shielded. Construction type: Flat, Product colour: Silver, Connector 1: RJ-45. Width: 14 mm, Depth: 34 mm, Height: 20 mm. Package volume: 12 cm³, Package width: 15 mm, Package depth: 40 mm. Quantity per pack: 1 pc(s). Country of origin: China
- Transmission properties: Category 6, Class E
- Area of application: Up to 250 MHz, 1GBase-T
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for patch panels and mounting outlets
- RJ45 female, 8P8C

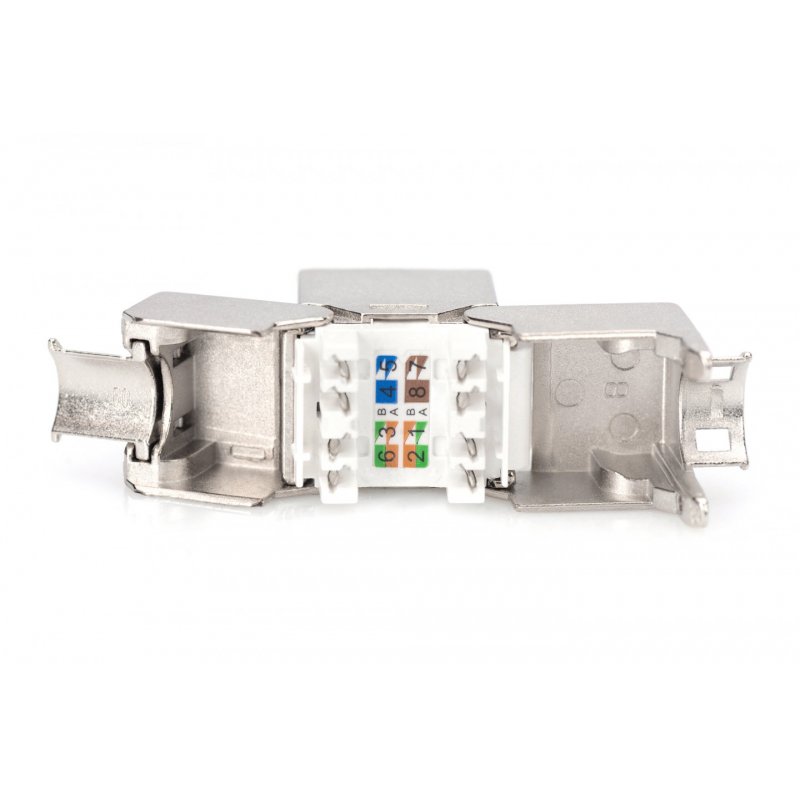

- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
- Cable fixing with smart cable ties
- Tool-free installation
- 360° shield coverage
- Technical properties:
- Housing material: Zinc die-cast, nickel-plated
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Modèle
- DN-93612-1
- Weight
- 2
Specific References
- ean13
- 4016032378518
