- Rupture de stock, ce produit n'est plus commercialisé

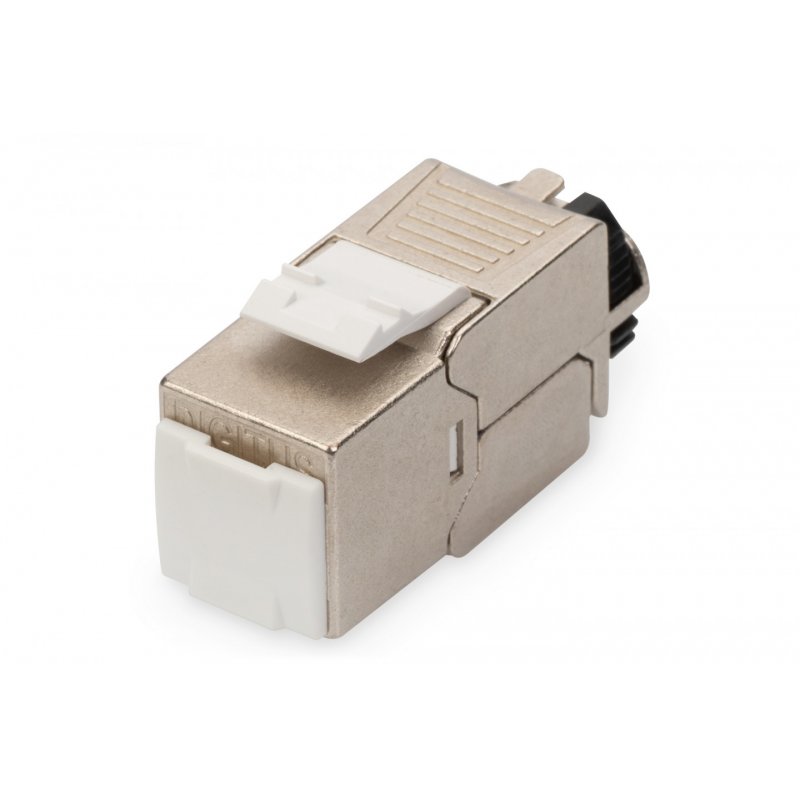

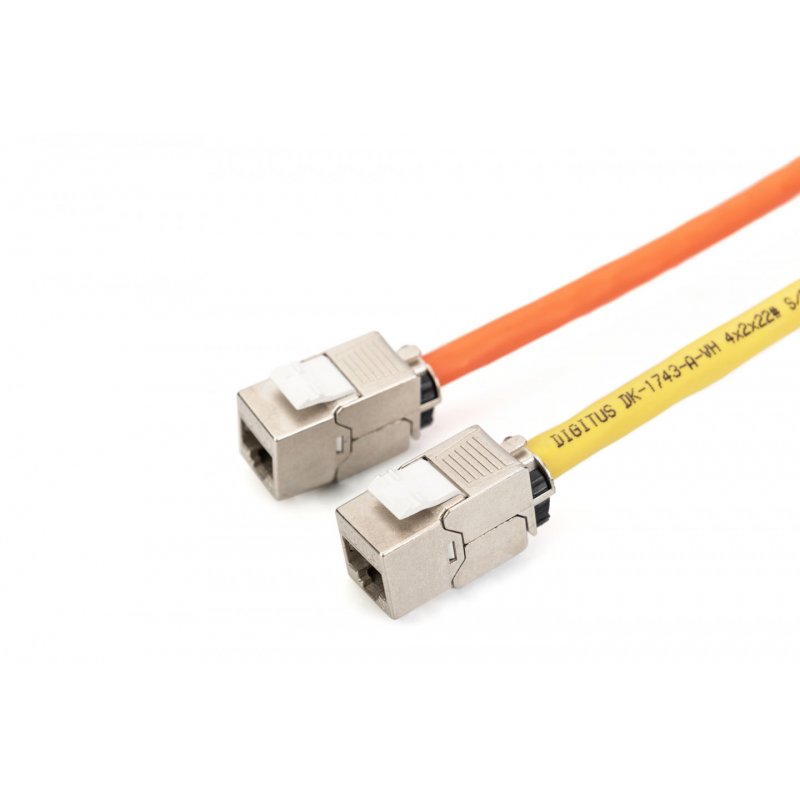

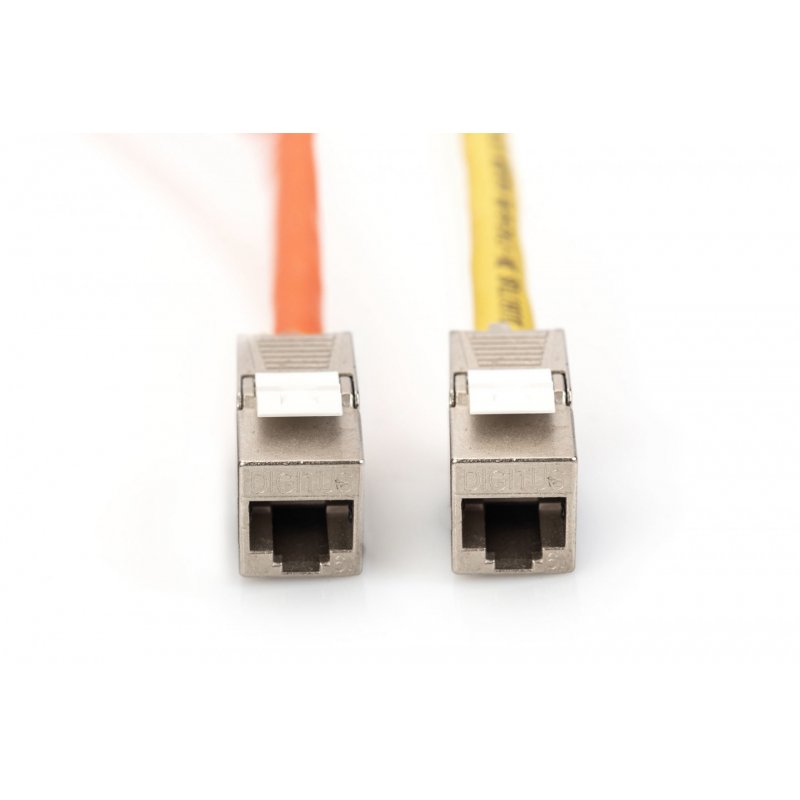

Digitus Digitus Cat. 6A keystone module, shielded with intelligent cable manager, set (24 pieces)
Digitus Cat. 6A keystone module, shielded with intelligent cable manager, set (24 pieces), Silver, 14.5 x 35.3 x 19.5 mm, 19 g, -10 - 60 °C, 24 pc(s), China
DN-93617-24
4016032365860
€57.68
VAT included
Description
Digitus Cat. 6A keystone module, shielded with intelligent cable manager, set (24 pieces). Product colour: Silver. Dimensions (WxDxH): 14.5 x 35.3 x 19.5 mm, Weight: 19 g. Quantity per pack: 24 pc(s). Country of origin: China
- Category 6A 10G Base-T, 500 MHz
- ISO/IEC 11801 3rd edition, EN 50173-1
- Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)

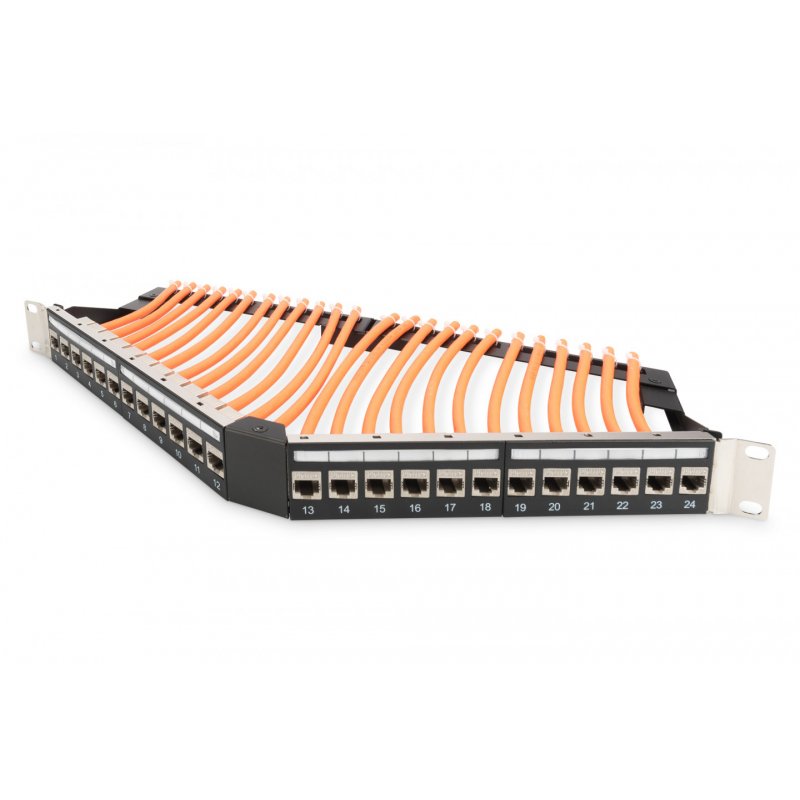

- Suitable for distribution panel and junction box mounting
- RJ45 jack, 8P8C
- Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B
- Cable grip and cable fixation using intelligent cable manager
- Tool-free mounting connection
- 360° shield contact
- Case material: Zinc die-cast – nickel-plated
- Contact material: Phosphor bronze
- Contact coating: Nickel, gold-plated 0.5 µ
- Insertion force: Max. 30N (as per IEC 60603-7-51)
- Holding force: 7.7 kg between jack and plug
- Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
- Tested with AWG 22/1 solid installation cable
- (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
- Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
- Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
- Intelligent cable manager (resealable)

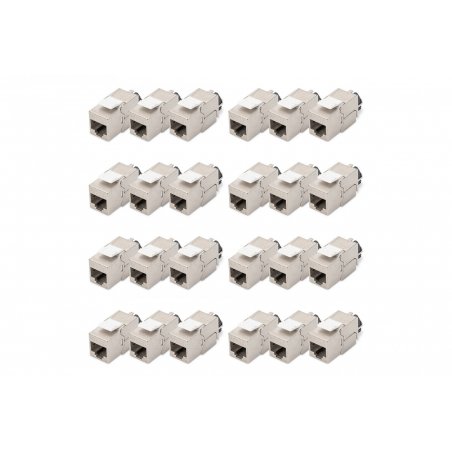

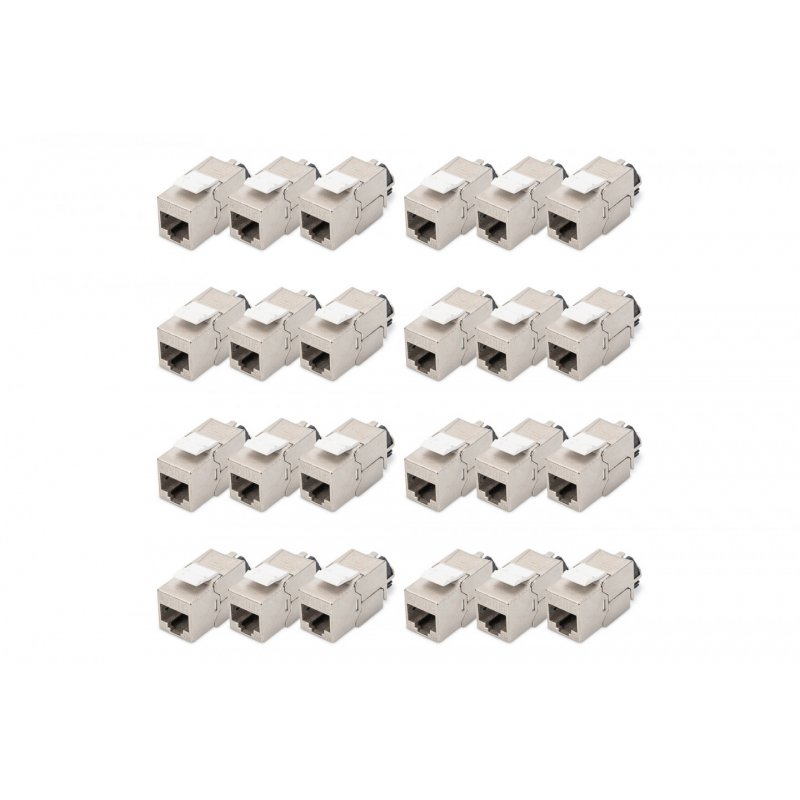

- CAT 6A Keystone Module, shielded, set= 24 pieces
- Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
- Weight: 19.5 g
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Modèle
- DN-93617-24
- Weight
- 2
Specific References
- ean13
- 4016032365860
