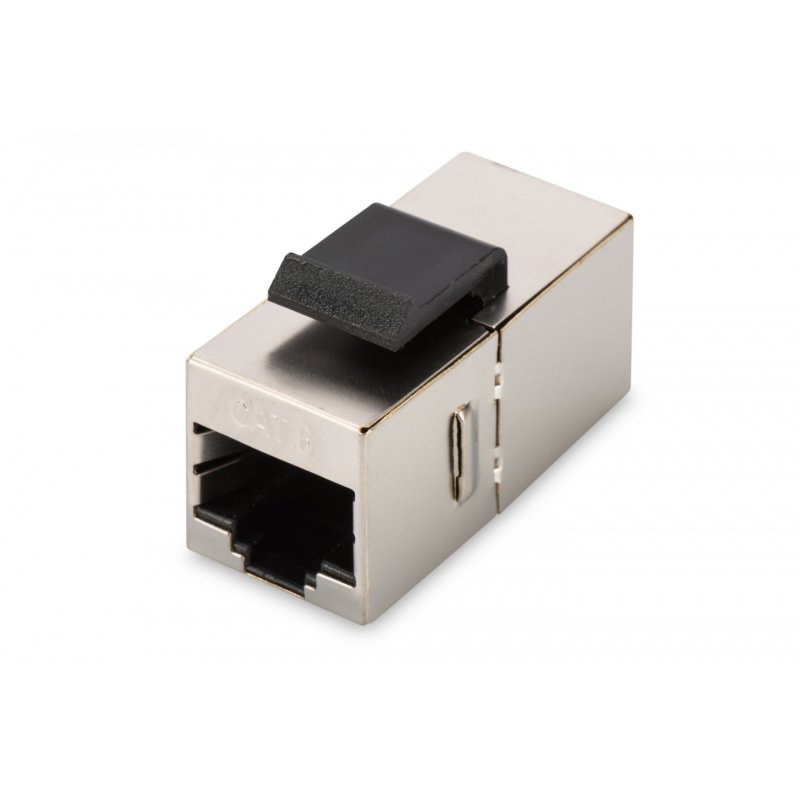

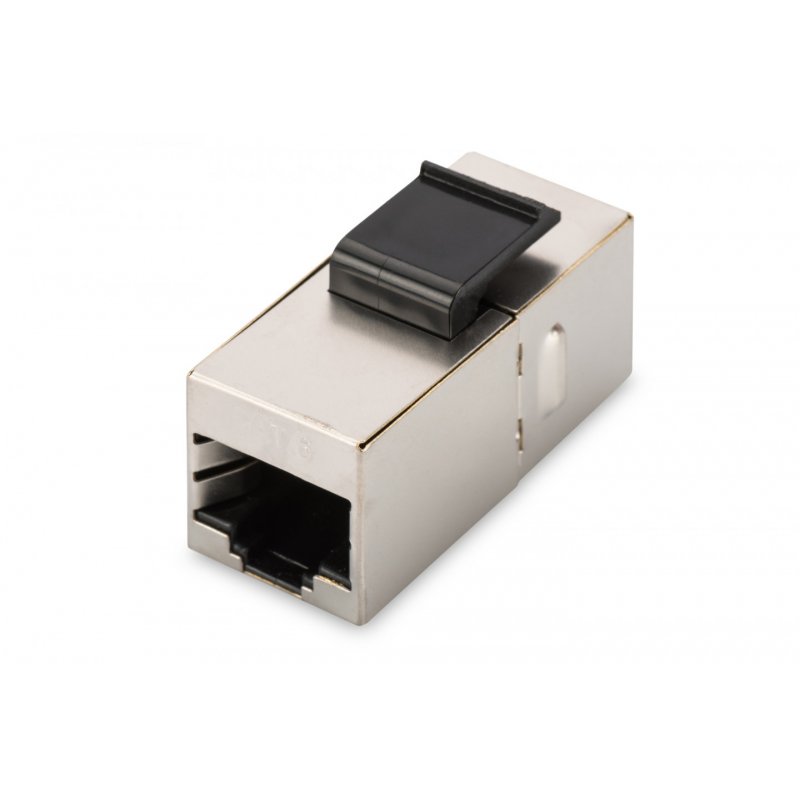

ASSMANN Digitus CAT 6 Class E Modular Coupler, shielded
Digitus CAT 6 Class E Modular Coupler, shielded, RJ-45, ABS synthetics, Copper, Nickel, Gold, -10 - 50 °C, 2 cm, 60 mm
DN-93613-1
4016032266846
€5.00
VAT included
Description
Digitus CAT 6 Class E Modular Coupler, shielded. Connector(s): RJ-45, Material: ABS synthetics, Copper, Nickel, Connector contacts plating: Gold. Package length: 2 cm, Package width: 60 mm, Package height: 90 mm. Country of origin: China
- Transmission properties: Category 6
- Area of application: Up to 250 MHz, 1GBase-T
- Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- General properties:
- Suitable for 483 mm (19") cabinet mounting
- 2x RJ45 Female, 8P8C
- 360° shield coverage
- Connection 1:1
- Technical properties:
- Housing material: Zinc die-cast, nickel-plated
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-93613-1
- Weight
- 1
Specific References
- ean13
- 4016032266846
